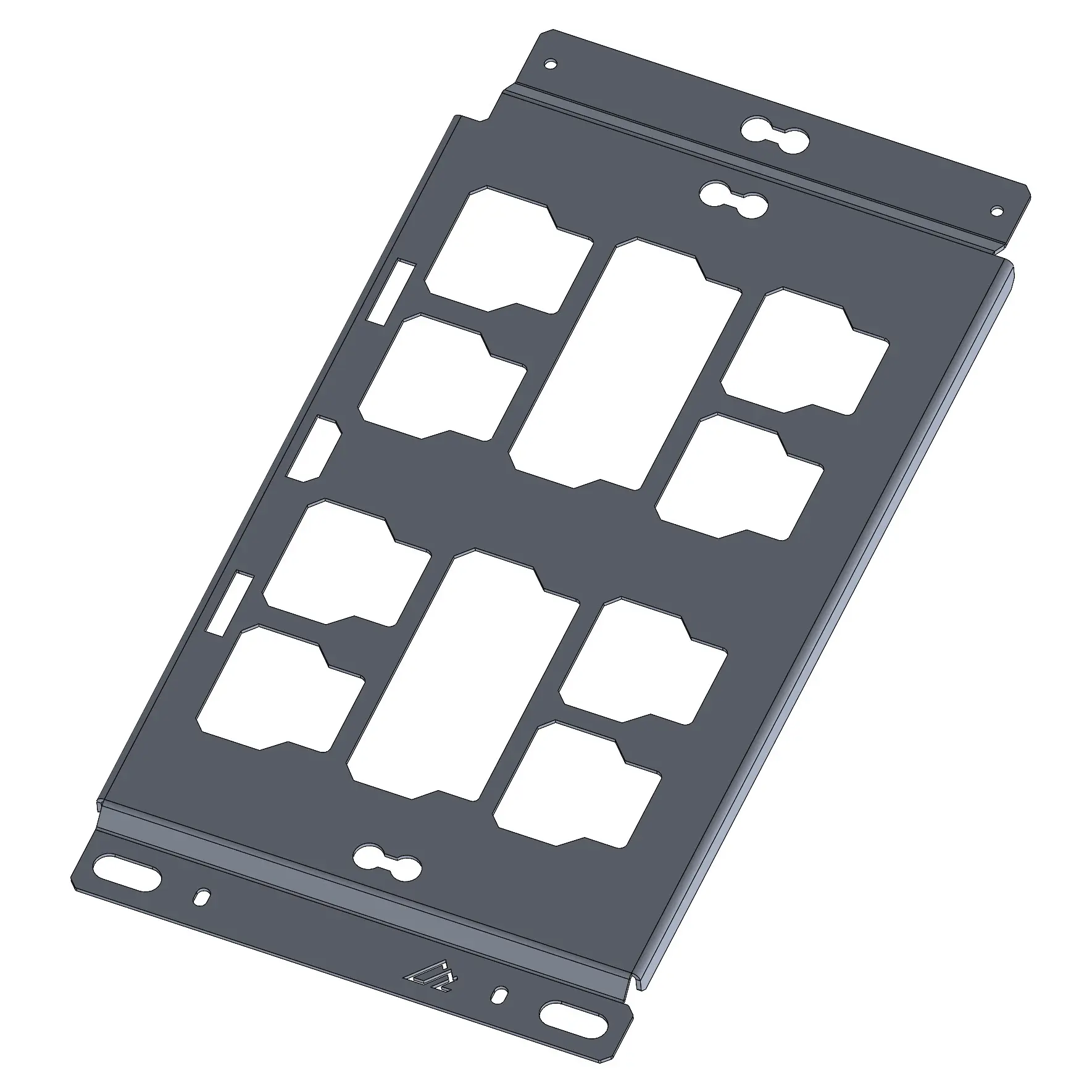

CAD rendering of the driver-side Ford F-150 VSTM rear PACKOUT mount

Angled view of an F-150 BASE layout with PACKOUT storage, upright spare tires and center-mounted equipment

Ford F-150 BASE Packout - Rear - Driver - Image 3

Ford F-150 BASE Packout - Rear - Driver - Image 4

Ford F-150 BASE Packout – Rear – Driver

Fitment: Ford F-150 (2015+)Ford F-150 Raptor (2017+)

Price range: $77.00 through $93.00

Driver-side rear PACKOUT mount for the Ford F-150 VSTM setup. Requires the VSTM and compatible F-150 BASE rails, sold separately. Includes one side-specific mount and its hardware pack. Choose Raw/Unfinished or Textured Black. PACKOUT cases and other pictured accessories are not included.

Fits 2015+ Ford F-150 and 2017+ Ford F-150 Raptor, matching our F-150 BASE rails.

Note: Product photos may contain optional components.

AAL Installer NetworkFind an Authorized Installer

Finish

Clear

Frequently Purchased Together

CAD rendering of the three F-150 BASE rail assemblies showing dogbone L-track cutouts and round mounting holes.

F-150 BASE Rails (Set of 3)

$355.00

Black single stud L-Track tie down ring with spring-loaded plunger and swivel ring

Single Stud Tie Down Ring - Black

$4.95

Secure Checkout - TLS Protected by Cloudflare

Ordering powder coated? Read this first. Powder coat is not an exact paint match. Salt environments, color availability, and match limitations apply. Click to read more and see suggested powder coat colors.

SKU: N/A Category: Cargo Management

Description
Reviews (0)

Rear PACKOUT Storage for Your Driver-Side VSTM Layout

Add a rear PACKOUT mounting position to the driver side of your F-150 VSTM layout. This side-specific mount works as part of the VSTM setup, rather than as a standalone bedside panel.

Vehicle Fitment: 2015+ Ford F-150 and 2017+ Ford F-150 Raptor, matching our F-150 BASE rails.

VSTM and BASE Rails Required: This rear PACKOUT mount requires the Ford F-150 Vertical Spare Tire Mount and its compatible F-150 BASE rail setup. The VSTM and BASE rails are sold separately.

Choose the Correct Side

Driver Side

This kit is the driver-side rear PACKOUT mount (F15-1024). It includes one mount, not a pair.

Building Both Sides?

The passenger-side rear PACKOUT mount is a separate product. Choose the side that matches your VSTM layout.

See It With Milwaukee PACKOUT Attached

These installed photos show Milwaukee PACKOUT cases on the rear mounts as part of a complete F-150 BASE and VSTM layout. Each rear mount is sold individually for its selected side. PACKOUT cases, the opposite-side mount, VSTMs, BASE rails, and other accessories shown are sold separately.

Close-up of a Milwaukee PACKOUT case attached to an F-150 rear PACKOUT mount beside a spare tire — Close-up of a PACKOUT case installed on a rear mount. The required VSTM and BASE rails are separate products.

Milwaukee PACKOUT cases installed on rear mounts in a complete F-150 BASE and dual-VSTM bed layout — Complete-system view with PACKOUT cases installed on both rear mounts.

Wide rear view of an F-150 with Milwaukee PACKOUT cases installed on the rear mounts — Wider view of the installed rear PACKOUT storage layout.

Plan the Complete Layout

Check clearance between your PACKOUT case, spare tire, tailgate, and other bed accessories. The full-system rendering shows how the rear mounts relate to a larger F-150 BASE and dual-VSTM layout.

F-150 BASE and dual-VSTM CAD layout with rear accessory mounting positions — Complete-system CAD example for layout context. VSTMs, BASE rails, center tray, connector, and other accessories are separate products. This view does not isolate the selected rear mount.

Add Movable Cargo Tie-Down Points

Use optional Black Single Stud Tie-Down Rings in the compatible tie-down cutouts to add removable strap anchors where your cargo needs them.

Retract the fitting’s spring-loaded retainer and insert the stud through the round opening in a compatible cutout.
Slide the stud into the narrow section, release the retainer, and check that the fitting is fully seated and locked.
Attach your cargo strap to the ring, route it around the load, and tension the strap to secure the cargo.

Move the fittings to another compatible cutout when your load changes. Rings and cargo straps are sold separately.

Two Single Stud tie-down rings installed in BASE rails, anchoring ratchet straps around a cooler — Single Stud rings in the BASE rails provide anchor points for ratchet straps securing a cooler. Rings, straps, and cooler are sold separately.

What Comes in the Kit

One driver-side rear PACKOUT mount in your selected finish (F15-1024)
Mounting hardware pack

Sold Separately: Required VSTM and BASE rails, PACKOUT cases, opposite-side mount, center tray, wheels, tires, and other accessories shown.

Choose Your Finish

Raw/Unfinished

Uncoated fabricated mount.

Textured Black

Powder-coated fabricated mount. Purchased hardware retains its supplied finish.
