Note: Product photos may contain optional components.
10″ Fuel Jug Mount
Price range: $98.96 through $125.96
Our 10″ Fuel Jug Mount is built from 3 mm 5052 aluminum for exceptional strength, light weight, and corrosion resistance. It includes a zinc-plated ratchet strap with a Cordura sleeve to protect both the strap and your jug from chafing. The strap and sleeve can be trimmed to fit your specific can, and the ratchet can be positioned on either side for maximum flexibility. Designed, manufactured, and Quick-Shipped from St. George, Utah, USA.
As part of our Veterans Day Sale, this product is currently 10% off. You will save $10.99 to $13.99. Click the sale banner above to view all products included in this sale.
Selected configuration
Choose options to see current availability
Choose options to see ready stock and in-production counts. We manufacture in-house, so counts change throughout the day.
Choose one installer for your entire order. Your selection follows you between products and is confirmed at checkout.

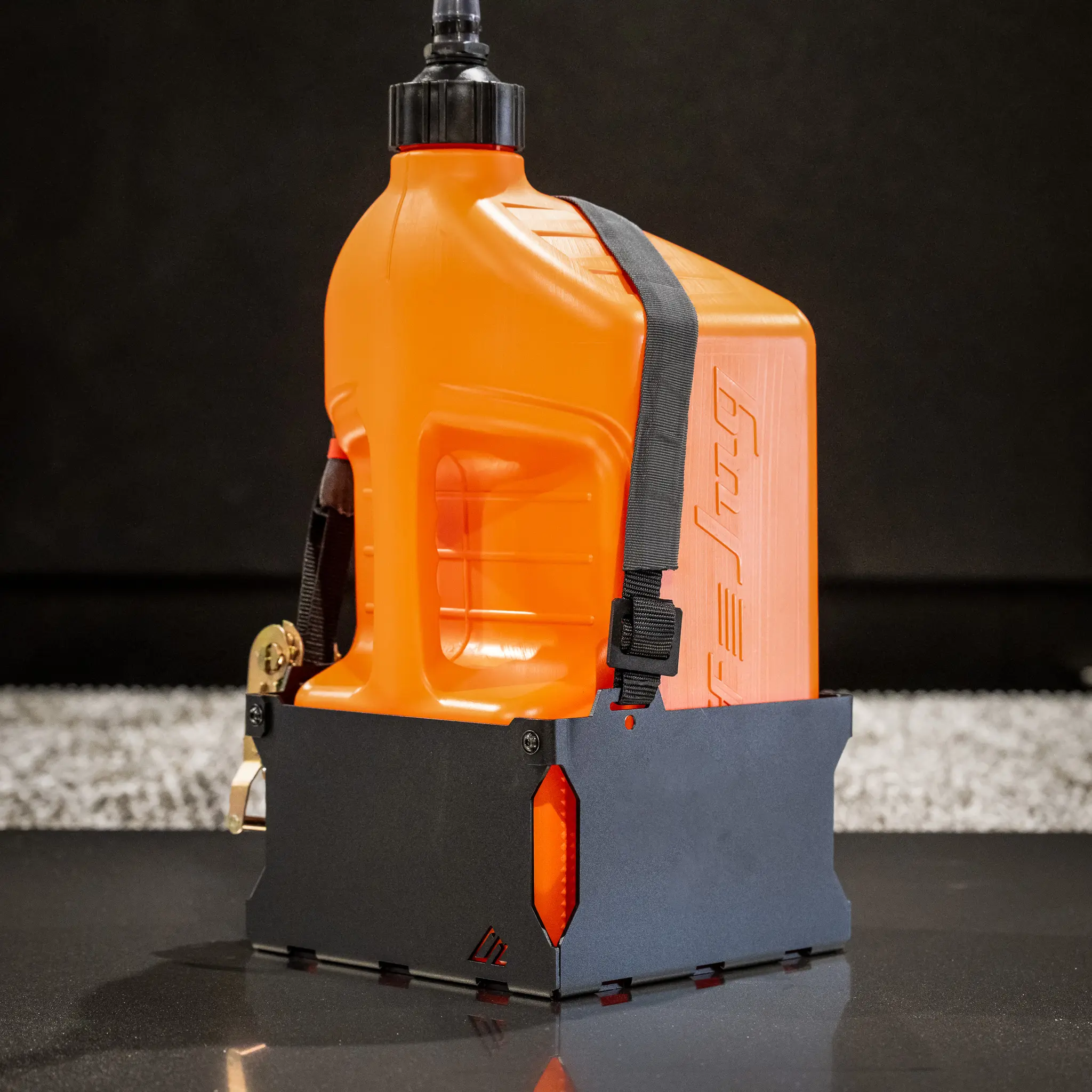

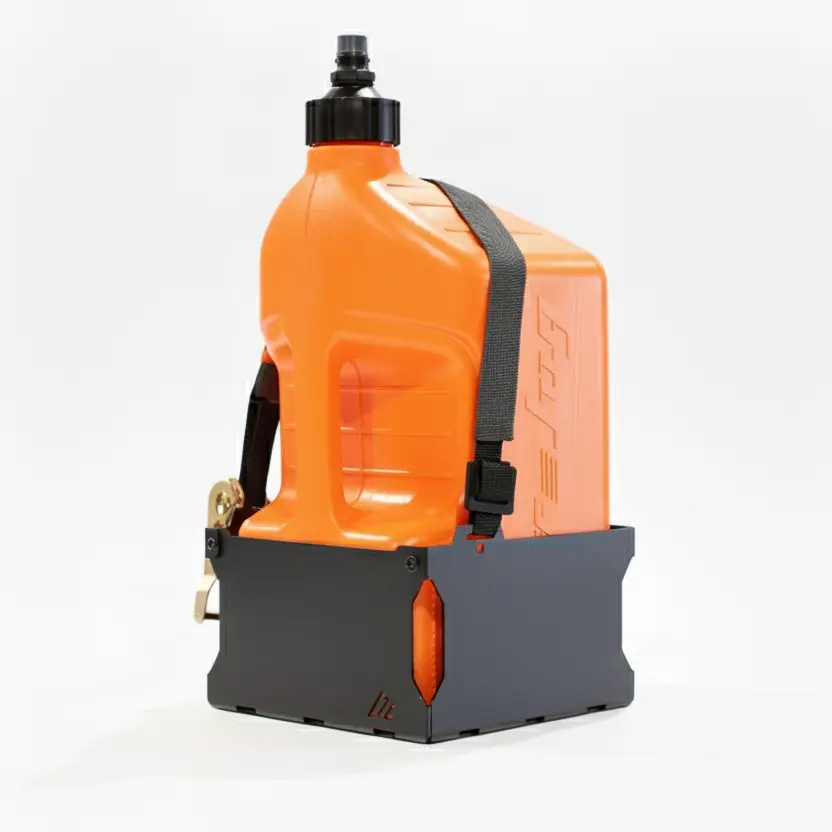

10″ Fuel Jug Mount
Secure, lightweight, and ready for anything. Our 10″ Fuel Jug Mount keeps your fuel can stable over the roughest terrain with a clean, flexible design and durable materials built to last.
- 3 mm 5052 aluminum construction – lightweight and corrosion resistant.
- Available in raw aluminum or textured black powder coat finish.
- Zinc-plated ratchet strap with Cordura sleeve to prevent chafing.
- Sleeve and strap are cut to length for your specific jug.
- Ratchet mechanism can mount on either side for maximum flexibility.
- Four 7 mm holes on the base for easy mounting on racks, decks, or platforms.
- Internal dimensions: 10″ x 10″ ā fits jugs with a 10″ diameter or side length.
- Built in-house in St. George, Utah, USA.
Whatās Included
- (1) 10″ Fuel Jug Mount – 3 mm 5052 aluminum.
- (1) Zinc-plated ratchet strap with Cordura sleeve.
- (1) Ratchet assembly.
- All necessary assembly hardware.
Mounting hardware and fuel jug not included.
Specifications
| Material | 3 mm 5052 aluminum |
|---|---|
| Finish | Raw aluminum or textured black powder coat |
| Internal Dimensions | 10ā³ x 10ā³ |
| Outer Dimensions | 10.25ā³ x 10.25ā³ x 6.75ā³ (H) |
| Mounting Holes | 4 holes, 7 mm diameter on the base |
| Ratchet Mounting | Can be installed on either side |
| Fitment | Fits fuel jugs with a 10ā³ diameter or side length |
| Origin | Made in St. George, Utah, USA |
Installation
- Position the mount on a flat, structurally sound surface (bed rack, drawer top, trailer deck, etc.).
- Mark the four 7 mm base holes and drill corresponding holes in your mounting surface.
- Fasten securely using appropriate bolts, washers, and backing plates for your material.
- Place the jug in the mount, route the strap over the jug and through the ratchet, then tighten securely.
- Trim the strap and Cordura sleeve to length, then heat-seal the strap end to prevent fraying.
Safety Notes
- Always ensure jugs are properly sealed and secured before travel.
- Check strap tension before driving and periodically during long trips.
- Do not mount near heat sources or exhaust systems.
1 review for 10″ Fuel Jug Mount
Add a review
Frequently Asked Questions
What size fuel jugs does the 10ā³ Fuel Jug Mount fit?
This mount fits fuel jugs with an internal diameter or side-length of 10ā³ Ć 10ā³ ā precisely sized for most 5 gal (or similar) containers.
What finish options are available for the mount?
You can choose from Raw/Unfinished, Textured Black Powder Coat, or Clear Finish. Each finish provides protection while retaining the aluminum performance.
How is the mount installed on a vehicle or trailer deck?
The base includes four 7 mm holes allowing you to bolt the mount to a flat, structurally sound surface (rack, drawer top, trailer deck, etc.). Standard hardware (bolts, washers, backing) should be used depending on the mounting surface.
Can the ratchet strap be positioned differently depending on installation side?
es ā the design allows the ratchet mechanism to be mounted on either side of the mount, giving you flexibility for left- or right-hand setups or depending on space constraints.
What are the outer dimensions of the mount and how much space does it consume?
The outer dimensions are approximately 10.25ā³ Ć 10.25ā³ Ć 6.75ā³ (H), so youāll need to account for that footprint when planning installation.
What material is the mount constructed from and why does that matter?
Itās built from 3 mm 5052 aluminum, offering excellent strength, corrosion resistance, and light weight.
How is the fuel jug secured in the mount for off-road use?
The product includes a zinc-plated ratchet strap with a Cordura sleeve to protect both the strap and the jug from chafing ā the strap can be trimmed to fit your exact container size and the ratchet can be mounted on either side for flexible installation.
Does the mount support long-term exposure to harsh environments (mud, water, dust)?
Yes. The 5052 aluminum resists corrosion and with the optional powder-coat finish the mount is built to withstand off-road conditions, frequent washing, and exposure to the elements.
Is the fuel jug mount made in the USA?
Yes ā the product is designed and manufactured in St. George, Utah, USA, ensuring quality control and fast shipping.
Is the fuel jug included with the mount?
No ā the mount includes the mounting hardware, strap and sleeve, but the actual fuel jug is not included. Youāll need to provide your own properly sealed fuel container.
