MAXTRAX Universal Mounting Pins
$79.99
Secure your MAXTRAX recovery boards with Universal Mounting Pins. Choose 17mm or 40mm stud length; both options use the long pin body for up to four boards.
Set includes four pins, Nyloc nuts and washers. Boards and mounting brackets are sold separately.
Selected configuration
Choose options to see current availability
Choose options to see ready stock and in-production counts. We manufacture in-house, so counts change throughout the day.
Choose one installer for your entire order. Your selection follows you between products and is confirmed at checkout.
Recovery Board Mounting
Your Boards, Secured and Ready to Reach
MAXTRAX Universal Mounting Pins secure your recovery boards to a compatible rack, platform or mounting bracket. Choose a 17mm or 40mm threaded stud to suit your mount, with the long pin body for carrying up to four boards.
Choose the Stud Length for Your Mount
Shorter Threaded Stud
For MAXTRAX Flat Mounting Brackets and setups that need a shorter threaded section. Check your bracket and hardware clearance before choosing.
MTXUMP17 Ā· Long Pin Body Ā· Up to 4 BoardsLonger Threaded Stud
For flexible or hard-mount setups needing more thread length. Check the thickness of your mounting surface and available clearance.
MTXUMP40 Ā· Long Pin Body Ā· Up to 4 BoardsStud length and board capacity are separate choices. Both options on this page use the long, up-to-four-board pin body. The selector changes the threaded stud length.
Keep Recovery Gear Outside the Cargo Area
The spare tire area gives bulky recovery boards a home outside the Jeep. Our 4XE build pairs that board placement with a M.A.S.S. Spare Tire Platform. Plan the complete mounting arrangement around your tire, carrier and bracket clearance.
Building a spare tire setup? See our MAXTRAX Spare Tire Mount for the vehicle-side mounting hardware.
One Pin System Across the Range
Compatible with MAXTRAX MKII, XTREME, LITE and Mini boards. MKII and XTREME can be mixed in a stack. Keep LITE and Mini stacks separate from other board types.
Rotate the appropriate knuckles 90 degrees to retain your board stack.
Whatās in the Set

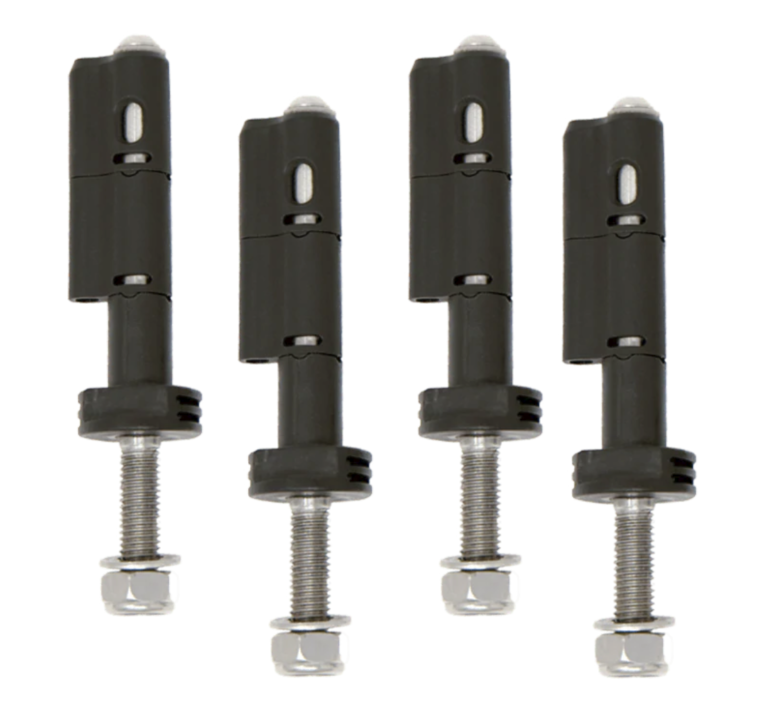

- 4 nylon and stainless steel Universal Mounting Pins
- 4 stainless steel Nyloc nuts
- 4 stainless steel flat washers
Use all four pins to secure your boards.
Install with Hand Tools
Apply lubricant or suitable anti-seize to the stainless steel threads before tightening. Use hand tools only to reduce the risk of thread binding. Check that the boards and pins remain secure before driving and during your trip.
Can I Lock the Pins?
Yes. The shafts have padlock holes. MAXTRAX recommends fitting padlocks to help deter theft and prevent unintentional knuckle rotation. Padlocks are sold separately.
