Lightweight 10LB Propane Tank Mount
Price range: $165.00 through $195.00
Lightweight 5052 aluminum mount for 9-inch-diameter Flame King YSN10LB steel and YSN10LB-ALM aluminum 10 lb propane tanks. Stainless padlock-capable latch, reversible access, security flanges, and raw or textured black finish. Tank sold separately.
Note: Product photos may contain optional components.
Selected configuration
Choose options to see current availability
Choose options to see ready stock and in-production counts. We manufacture in-house, so counts change throughout the day.
Choose one installer for your entire order. Your selection follows you between products and is confirmed at checkout.

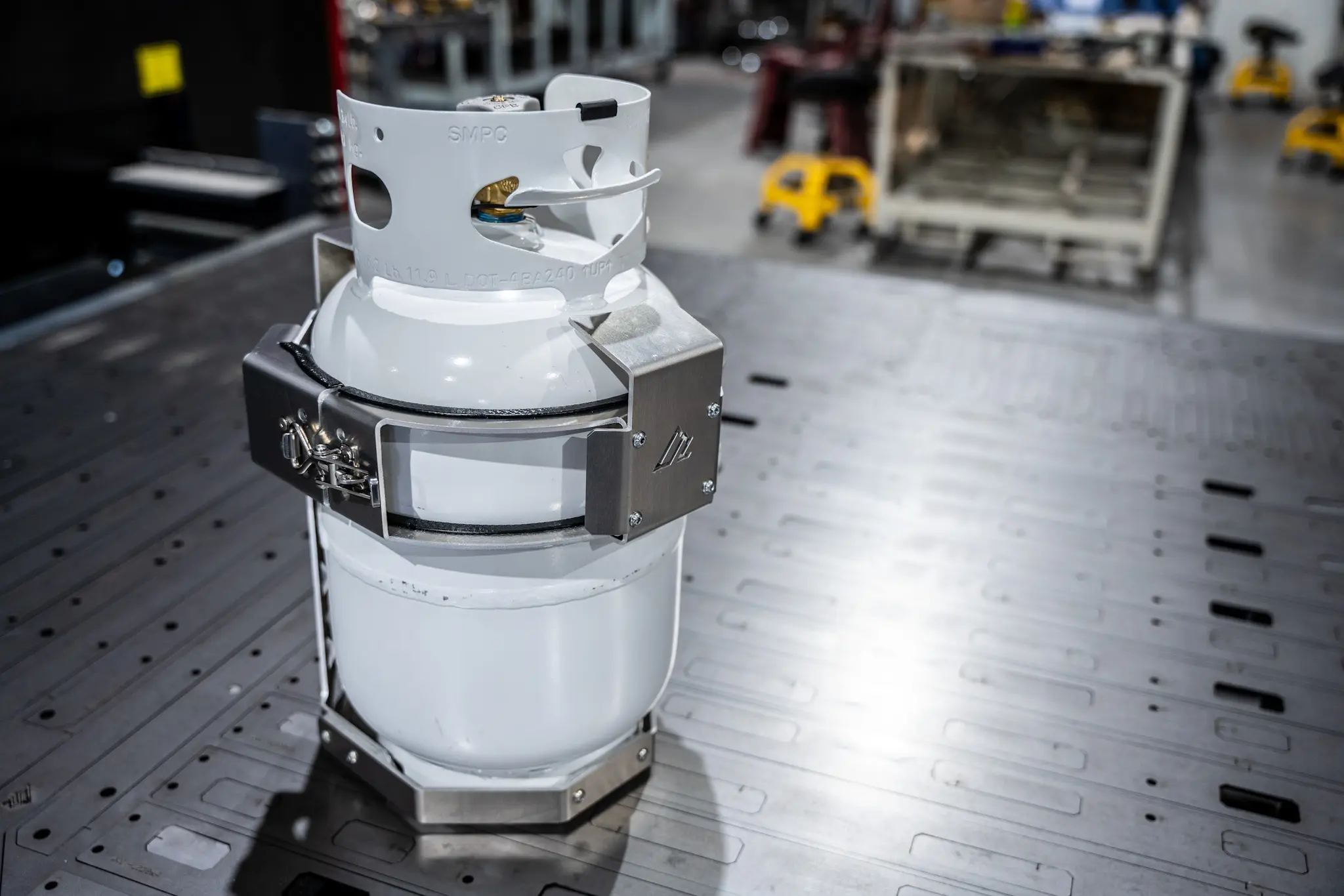

Built for 9-inch-diameter 10 lb propane cylinders, this lightweight 5052 aluminum mount keeps camp fuel secured to an overland rig, trailer, or camp system while keeping the carrier itself light. It fits both the Flame King YSN10LB steel cylinder and YSN10LB-ALM aluminum cylinder, with quick latch access and a reversible left- or right-hand opening.
Match the Tank, Not Just the Capacity
ā10 lbā describes propane capacity, not a universal cylinder shape. This mount is built around a 9-inch / 230 mm outside diameter and the collar, foot ring, and overall profiles of the two Flame King tanks listed below.
Flame King YSN10LB steel and YSN10LB-ALM aluminum tanks.
Tank sold separately.
Built Around Real 10 lb Tank Fitment
| Tank | Construction | Tank Size | Empty Weight | Fit |
|---|---|---|---|---|
| Flame King YSN10LB | Steel | 9 x 9 x 17.8 in | 14 lb | Verified |
| Flame King YSN10LB-ALM | Aluminum | 9 x 9 x 19.25 in | 9.6 lb | Verified |
Using another 10 lb tank? Confirm its diameter, collar, foot ring, and overall profile before ordering. A 9-inch diameter is required, but diameter alone does not guarantee fitment.

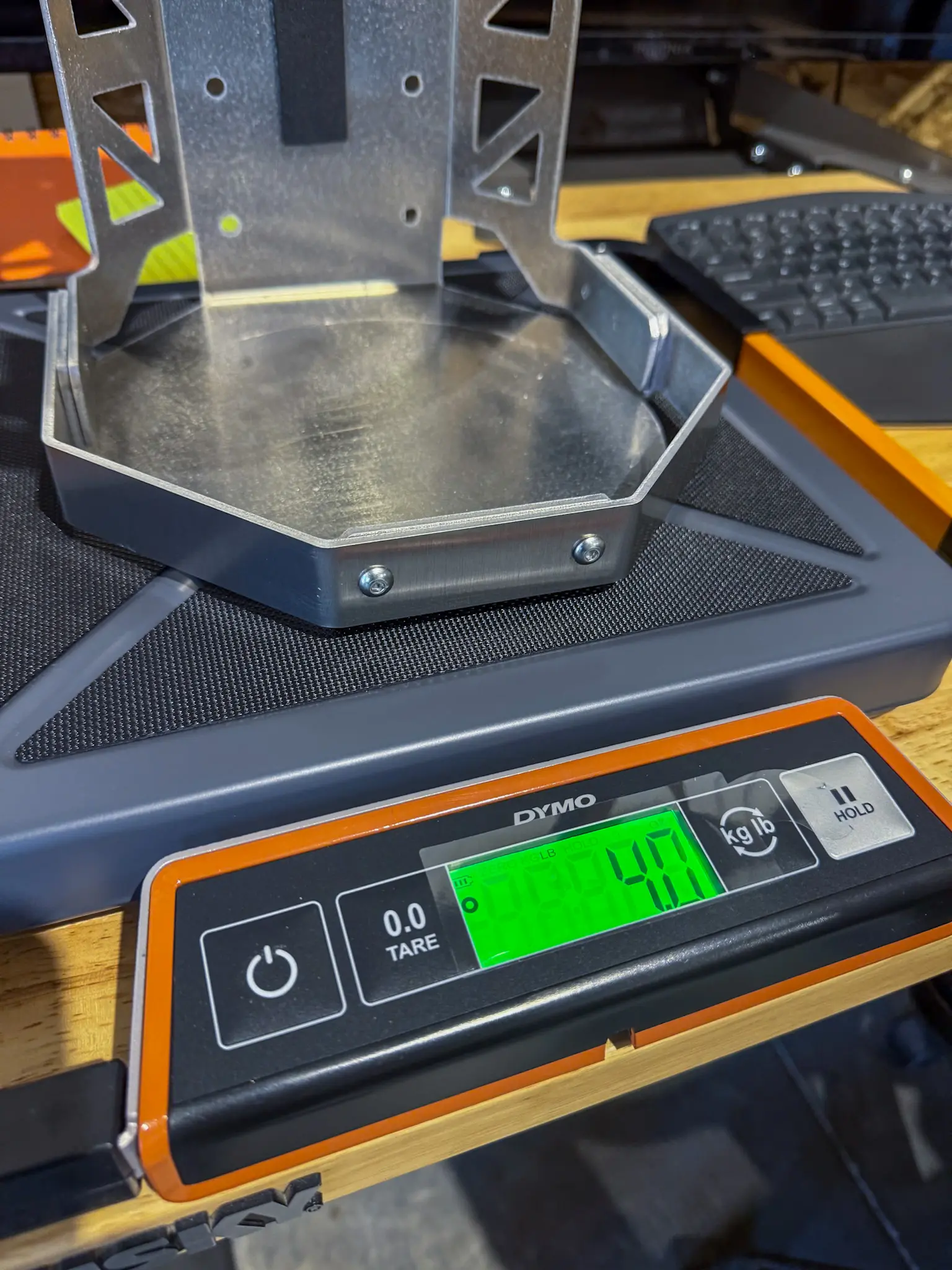

The shaped aluminum structure keeps the mount light and corrosion-resistant for vehicle-based camp and trail use.

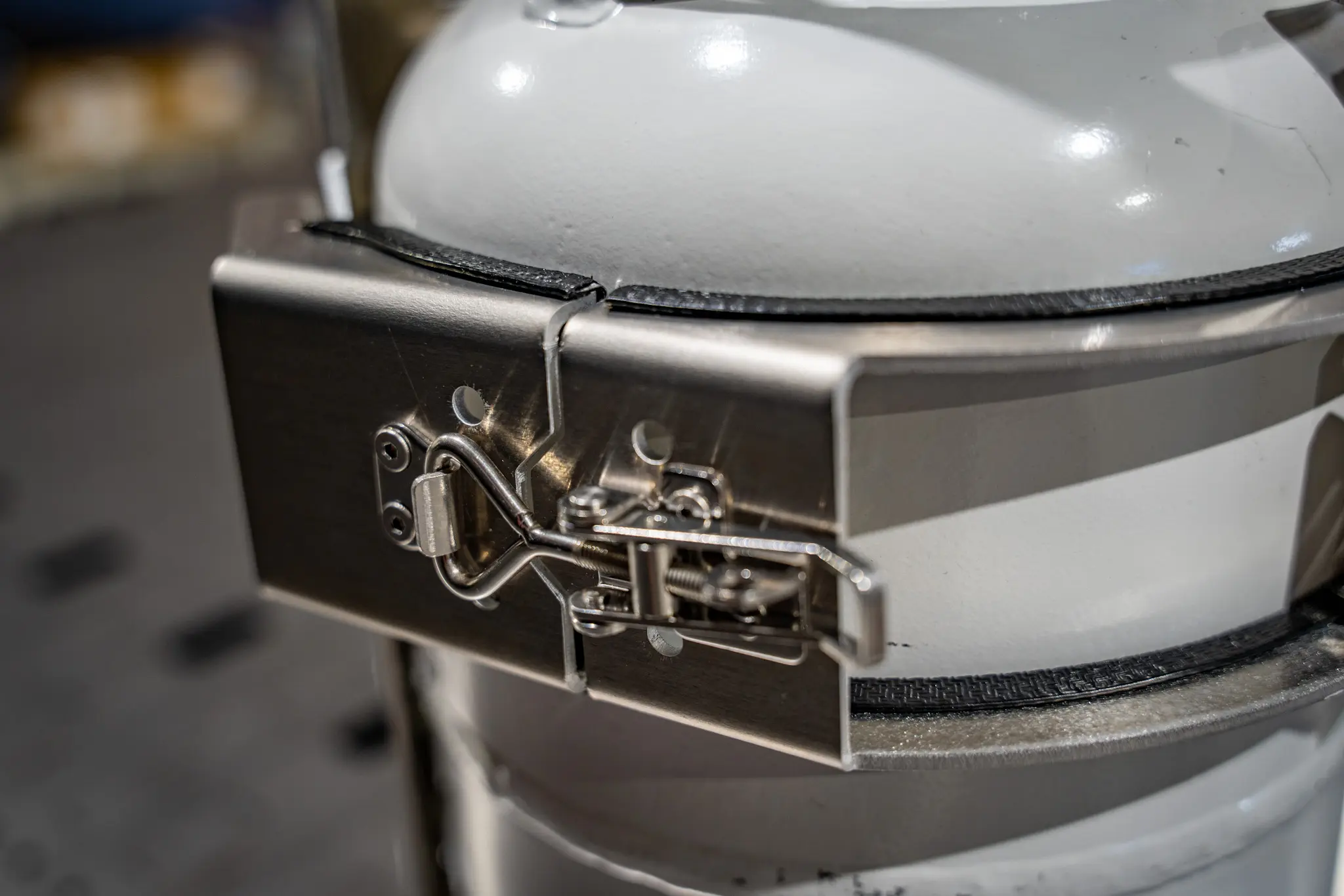

The quick-release latch pulls the clamp tight for fast tank access and includes a padlock point for added security.
Assemble the opening on the left or right to suit a rack, trailer, spare-tire area, or camp-kitchen layout.
What Changed and Why
We replaced the original cast hinge with a fabricated swingarm pivot. The new pivot is simpler for us to assemble, removes unnecessary weight, and keeps the proven 5052 aluminum body, stainless latch, reversible opening, and security flanges from the original mount.
How the Mount Holds the Tank
Shaped aluminum plates wrap the cylinder, while protective edge trim cushions the tank at the clamp contact points. The stainless draw latch pulls the clamp closed for quick access at refill time or camp setup. Anti-spread security flanges help keep the clamp from being pried apart, and the padlock-capable latch gives you a straightforward way to add a lock.
Product Details
- Mount material: 5052 aluminum
- Required tank diameter: 9 in / 230 mm
- Verified steel tank: Flame King YSN10LB
- Verified aluminum tank: Flame King YSN10LB-ALM
- Latch: stainless steel draw latch
- Security: padlock-capable latch and anti-spread flanges
- Opening: reversible left- or right-hand access

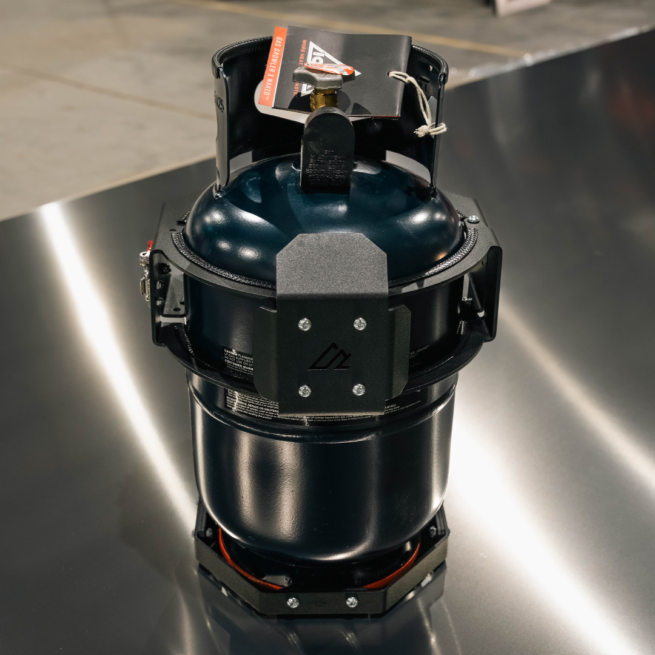

- Finish: Raw/Unfinished or Textured Black
- Manufacturing: made in St. George, Utah

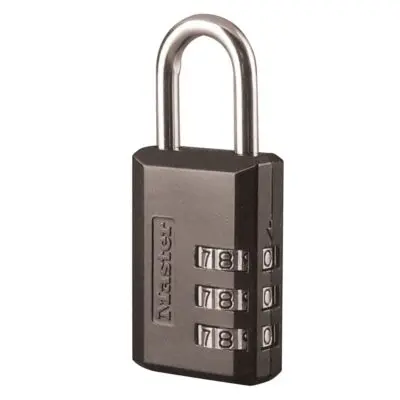

- Propane tank sold separately; optional bundled padlock available on this page
Assembly and Setup

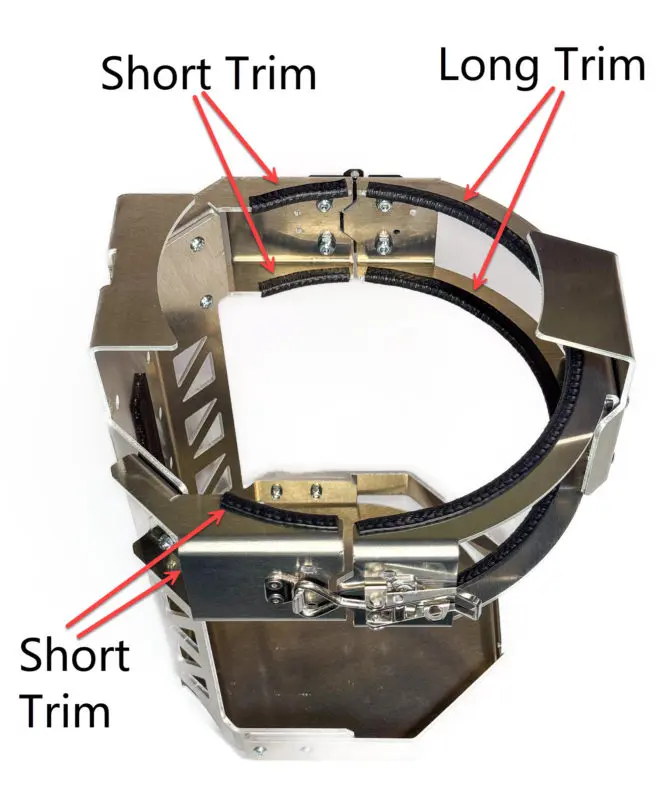

The mount ships unassembled and can be put together with common metric tools. Install the long protective edge-trim pieces starting at the edge of the clamp, then work around the clamp so the trim lands correctly for tank tension.
Choose the verified Flame King steel or aluminum tank, add the optional bundled combination padlock, or step down to our 5 lb propane system when cargo space matters more than fuel capacity.
Common Questions
Will this fit the Flame King 10 lb aluminum propane tank?
Yes. This mount is verified for the 9-inch-diameter Flame King YSN10LB-ALM aluminum 10 lb propane tank.
Will it fit the Flame King steel 10 lb tank?
Yes. It is also verified for the 9-inch-diameter Flame King YSN10LB steel cylinder.
Will it fit every 10 lb propane tank?
No. A 10 lb capacity does not guarantee the same cylinder shape. Other tanks must match the required 9-inch diameter as well as the collar, foot ring, and overall profile.
Are the propane tank and padlock included?
The base product is the mount only. Compatible Flame King steel and aluminum tanks are sold separately, and the combination padlock can be added as an optional bundled product on this page.
Can the mount open from either side?
Yes. Assemble it for left- or right-hand access based on where the mount sits on your vehicle, trailer, rack, or camp setup.
What changed from the original 10 lb propane tank mount?
The updated version adds verified Flame King aluminum-tank fitment and replaces the cast hinge with a fabricated swingarm pivot. The 5052 aluminum construction, stainless padlock-capable latch, reversible access, finish options, protective edge trim, and security flanges carry forward.
