Bronco Roll Bar Apex Reel CRS Fixed Mount

Ford Bronco Apex CRS Fixed Mount - Image 2

Ford Bronco Apex CRS Fixed Mount - Image 3

Ford Bronco Apex CRS Fixed Mount - Image 4

Ford Bronco Apex CRS Fixed Mount

Fitment: Ford Bronco 4-Door - 6th Gen

Price range: $29.95 through $39.95

Fixed-mount solution for securely installing the Apex Compact Reel System (CRS) on any 6th Gen Ford Bronco equipped with the two factory threaded holes at the top of the C-pillar. Precision laser-cut and CNC formed from 3 mm 5052 aluminum for strength, accuracy, and a clean OEM look.

Note: Product photos may contain optional components.

Finish

Side

Clear

Frequently Purchased Together

Apex Compact Reel System (CRS)

$195.00

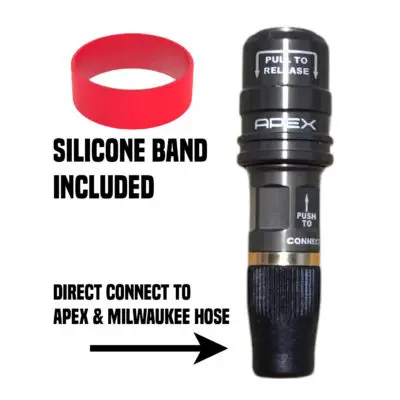

Milwaukee M18 Inflator Apex push-on chuck kit with silicone retention band

Milwaukee M18 Inflator Apex Chuck Kit

$31.00

Secure Checkout - TLS Protected by Cloudflare

Ordering powder coated? Read this first. Powder coat is not an exact paint match. Salt environments, color availability, and match limitations apply. Click to read more and see suggested powder coat colors.

Instructions Library

Product Instructions

No product-specific instructions are available for this item. You can browse the Instructions Library for reference. Open the Instructions Library.

Description
Reviews (0)

Ford Bronco Apex CRS Fixed Mount – 6th Gen

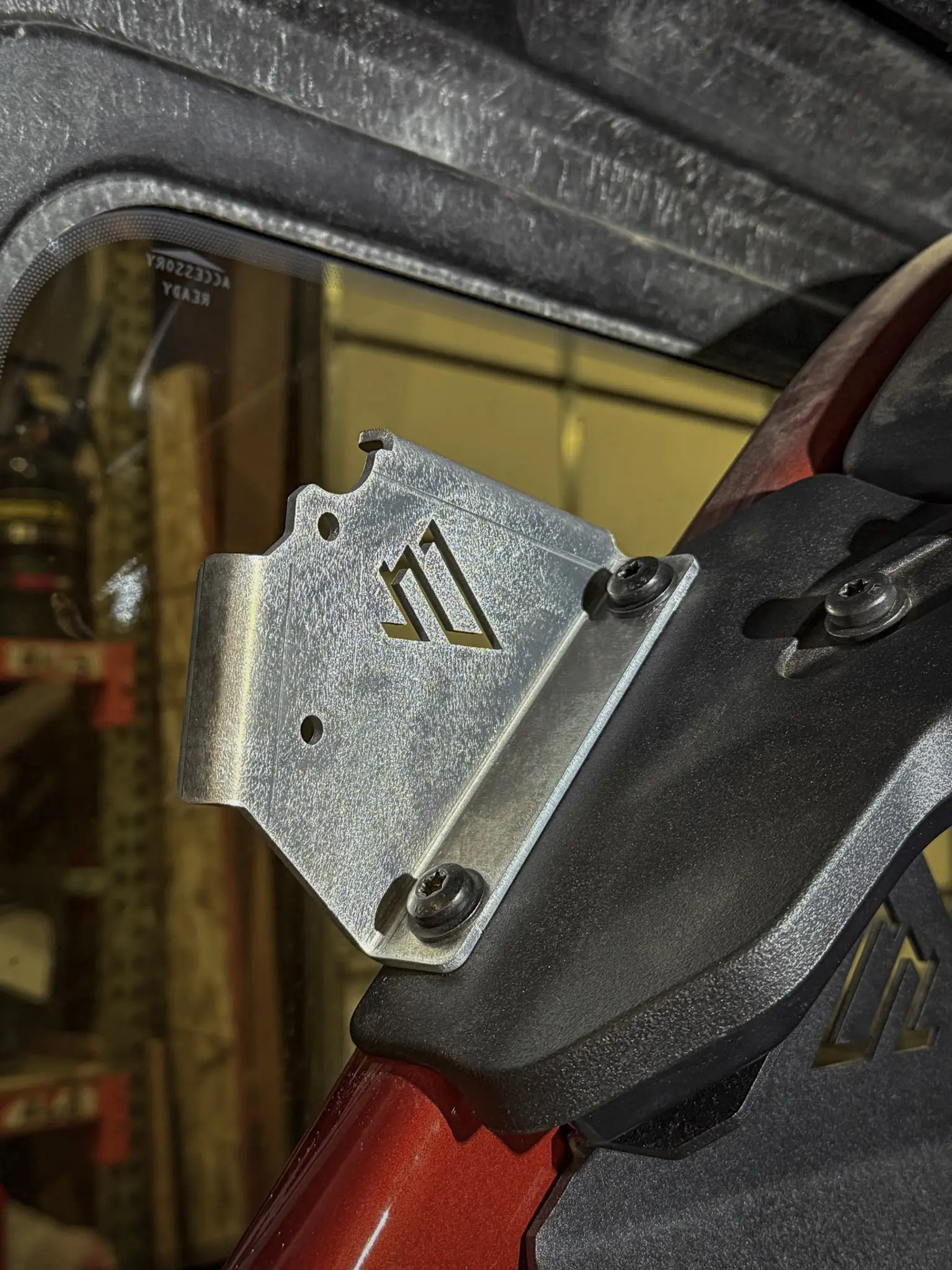

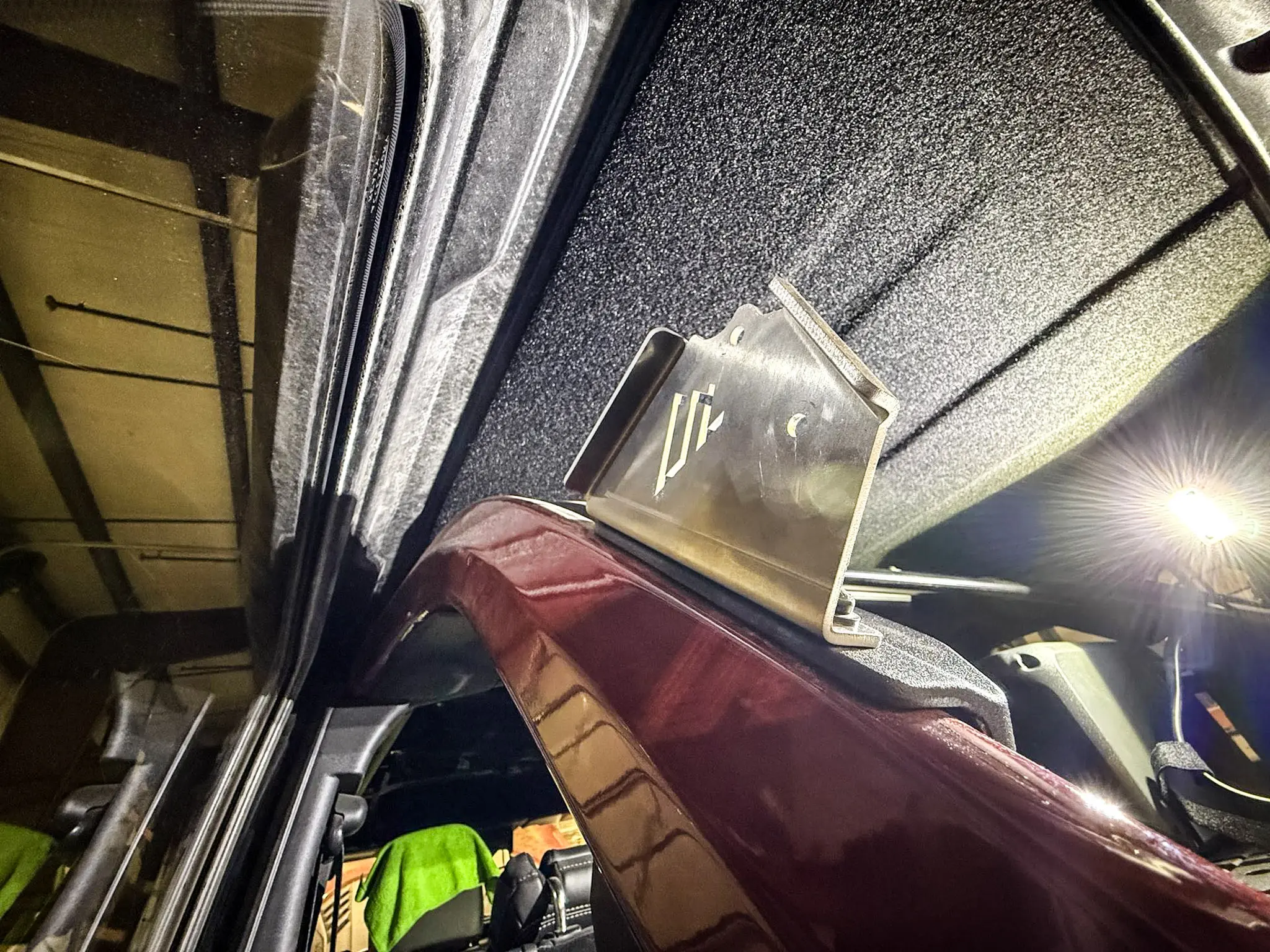

Lock in your Apex Compact Reel System (CRS) with a rock-solid, no-nonsense mount. This fixed bracket bolts to the factory C-pillar on all 6th Gen Ford Broncos that have the two threaded holes at the top of the C-pillar. If your Bronco does not have those holes, this product will not fit.

Purpose-built for Apex CRS – direct, fixed mounting point for the Compact Reel System.
Precision built – fiber-laser cut for accuracy, CNC formed for repeatability.
Lightweight and strong – 3 mm (approx. 1/8″) 5052 aluminum.
Clean installation – utilizes existing C-pillar holes, no drilling required.
Hardware-friendly – uses the attachment bolts supplied with the Apex CRS; Bronco Raptor owners can reuse the OE roll-cage brace bolts. We include mounting bolts for non-Raptor Broncos.

Compatibility – Read This First

This bracket fits 6th Gen Ford Bronco models that have the two factory threaded holes at the top of the C-pillar (just behind the rear side glass). Ford began adding these holes around mid-2021. Visual confirmation is best:

If you can see two exposed threaded holes at the top of the C-pillar – you are good to go.
If your C-pillar does not have these holes – this mount will not fit.

Works with: 4-door 6th Gen Bronco trims that include the threaded C-pillar holes, including Bronco Raptor.

What’s Included

(1) Fixed Bronco C-pillar bracket for Apex CRS
Vehicle-side mounting hardware for non-Raptor Broncos
Install guide

Not included: Apex Compact Reel System (CRS) and its attachment bolts – those ship with the CRS and are used to mount the reel to this bracket. Bronco Raptor owners can reuse the OE roll-cage brace bolts for the vehicle-side attachment.

Installation Notes

Position the bracket on the C-pillar using the factory threaded holes.
Torque vehicle-side bolts to factory spec. Do not over-tighten into the roll-cage inserts.

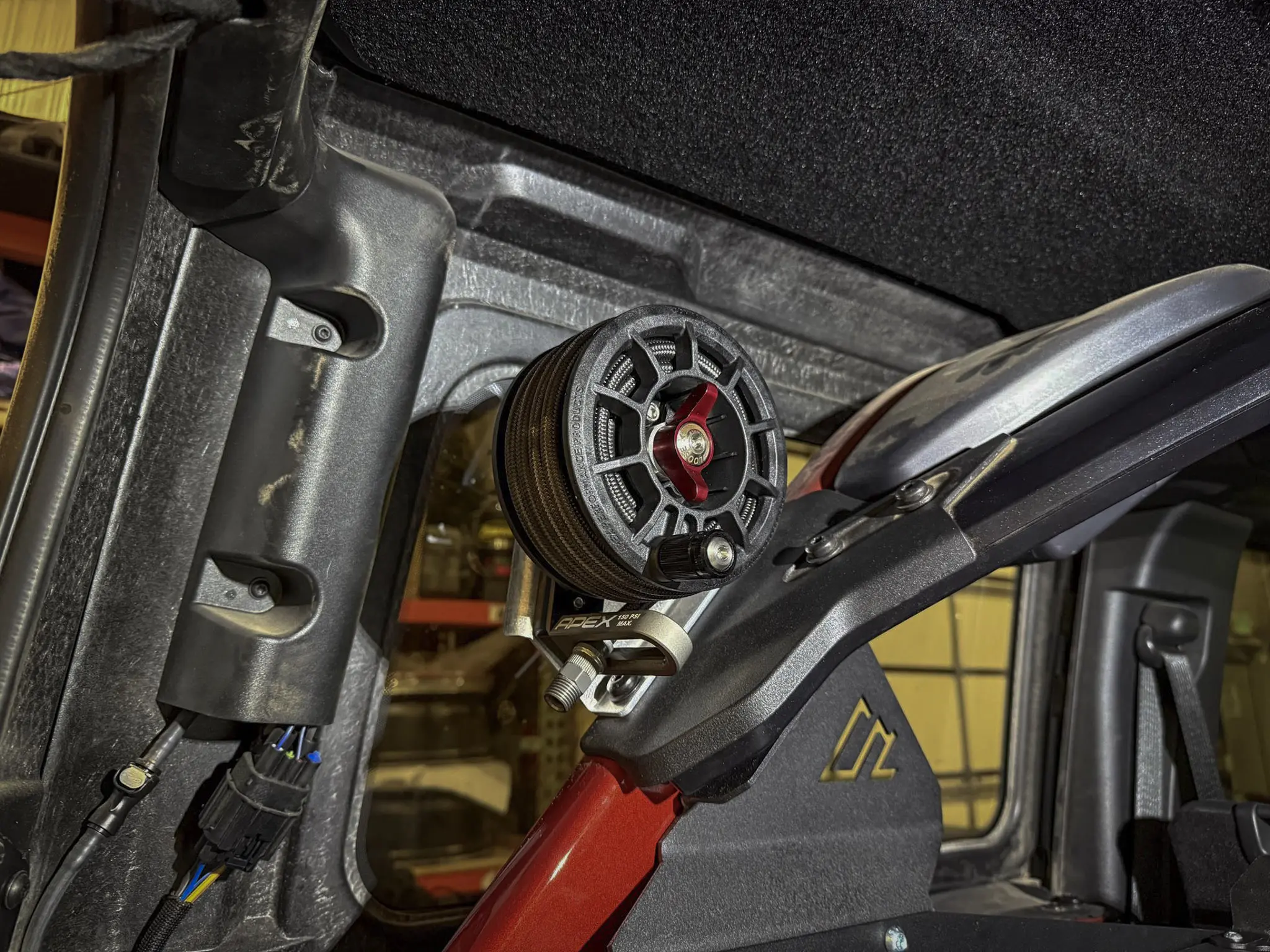

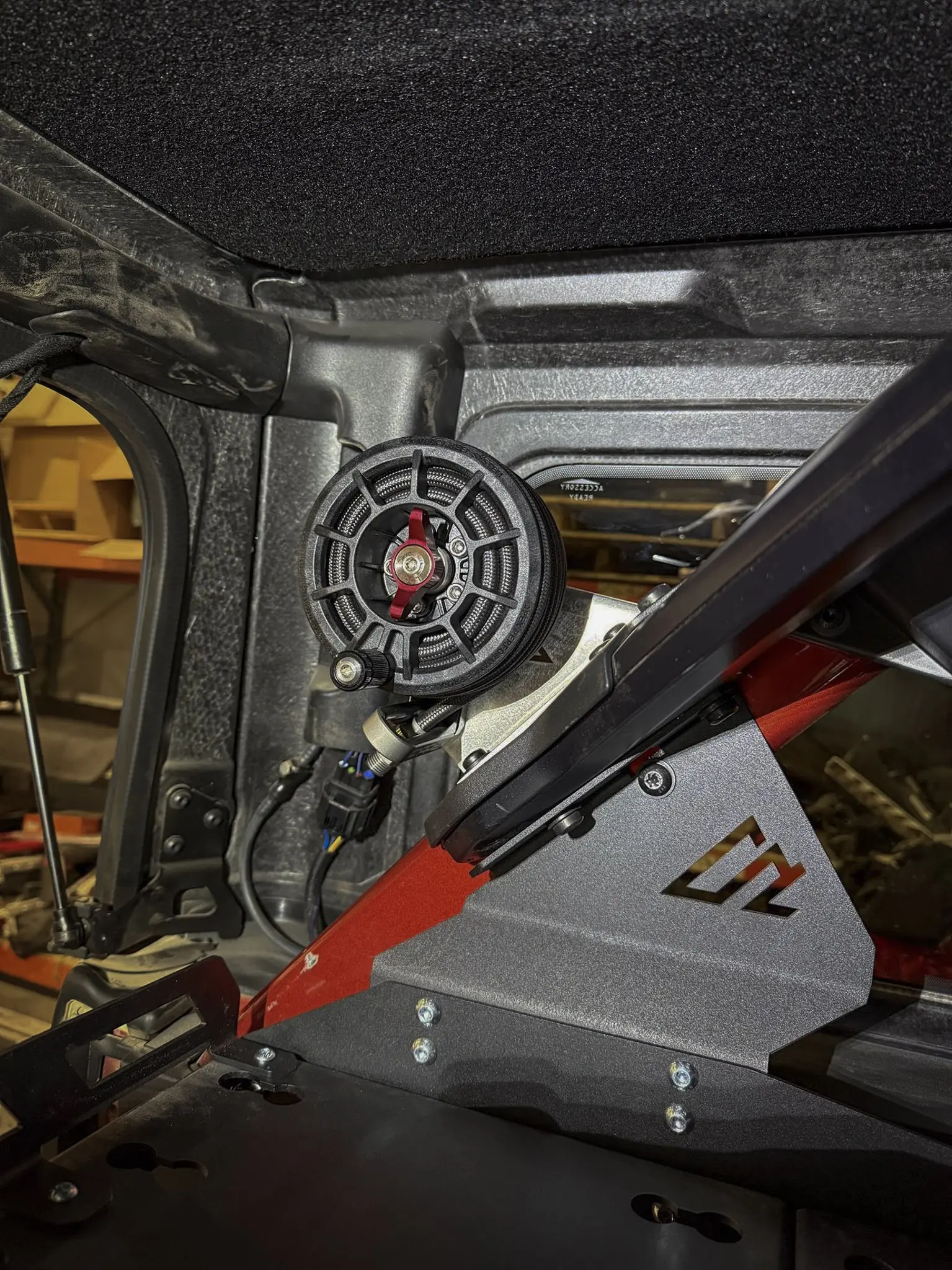

Attach the Apex CRS to the bracket using the CRS-supplied fasteners.

Materials and Specs

Material	5052-H32 aluminum, 3 mm thick (approx. 1/8″)
Manufacturing	Fiber-laser cut for accuracy – CNC formed
Mounting Location	Upper C-pillar using two factory threaded holes
Compatible System	Apex Compact Reel System (CRS)
Vehicle Compatibility	Ford Bronco 2021+ (6th Gen) with threaded C-pillar holes – including Bronco Raptor
Hardware	CRS attachment bolts used for reel-to-bracket; vehicle-side bolts included for non-Raptor, Raptor reuses OE brace bolts

How do I know if my Bronco has the required holes? Open the rear door and look at the top of the C-pillar near the rear side glass. If you see two threaded inserts/holes, you are set. If not, this bracket will not fit. Does this work with the Bronco Raptor? Yes. You can reuse the OE bolts that secure the rear roll-cage brace for the vehicle-side attachment. Do I need to buy additional hardware? No. Your Apex CRS includes the bolts that attach the reel to this bracket. We include vehicle-side bolts for non-Raptor Broncos.

Reviews

There are no reviews yet.
