Ford Bronco 6″ M.A.S.S. Duo Drawer (7×4)

After years of beating on and evolving this design, we are now able to release the Bronco versions of the M.A.S.S. Storage Components!

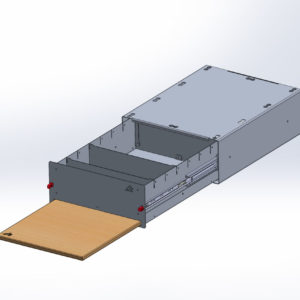

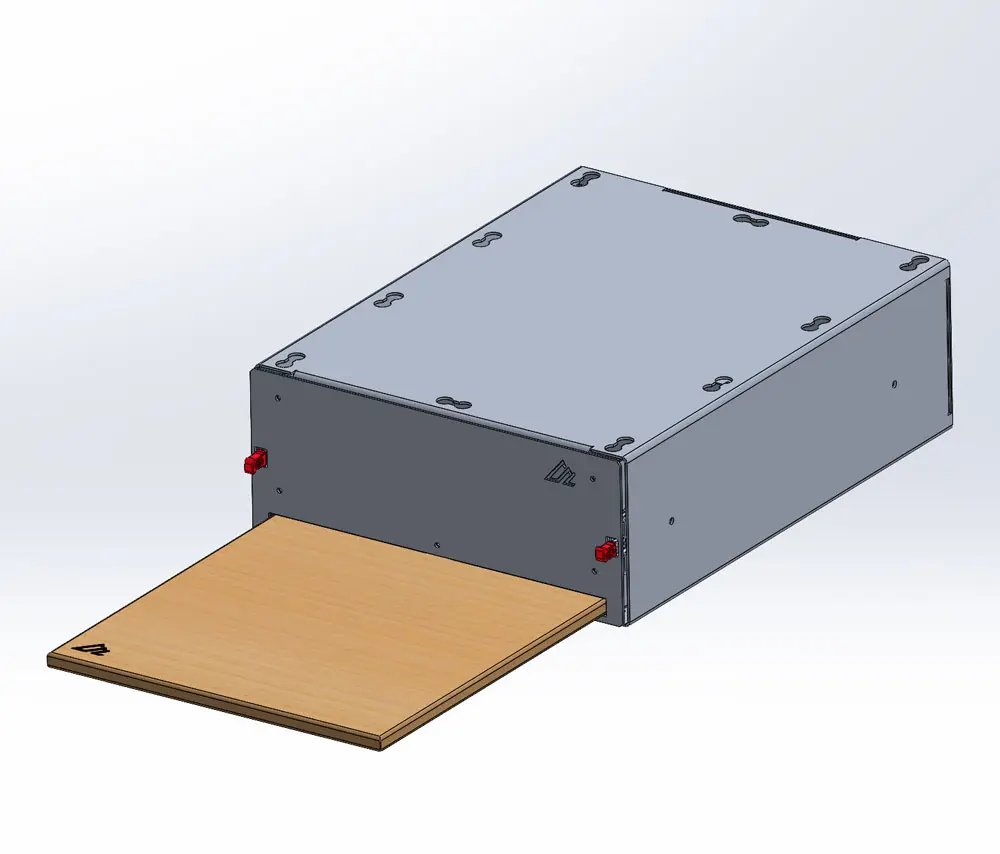

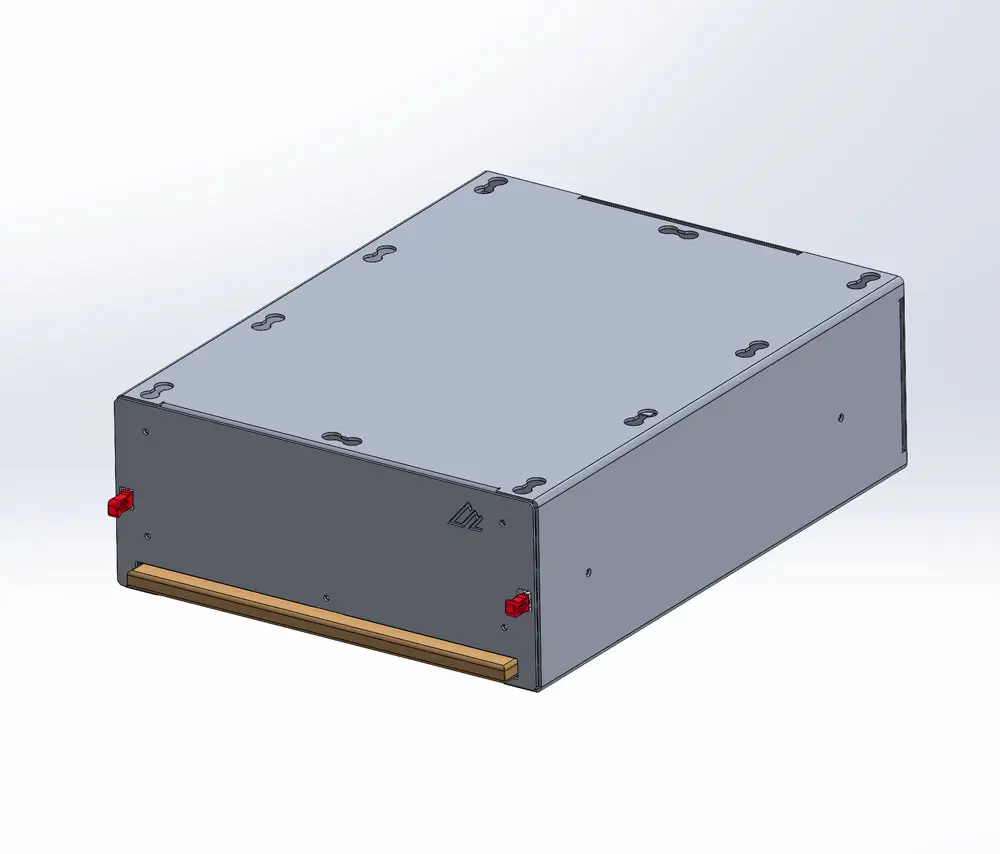

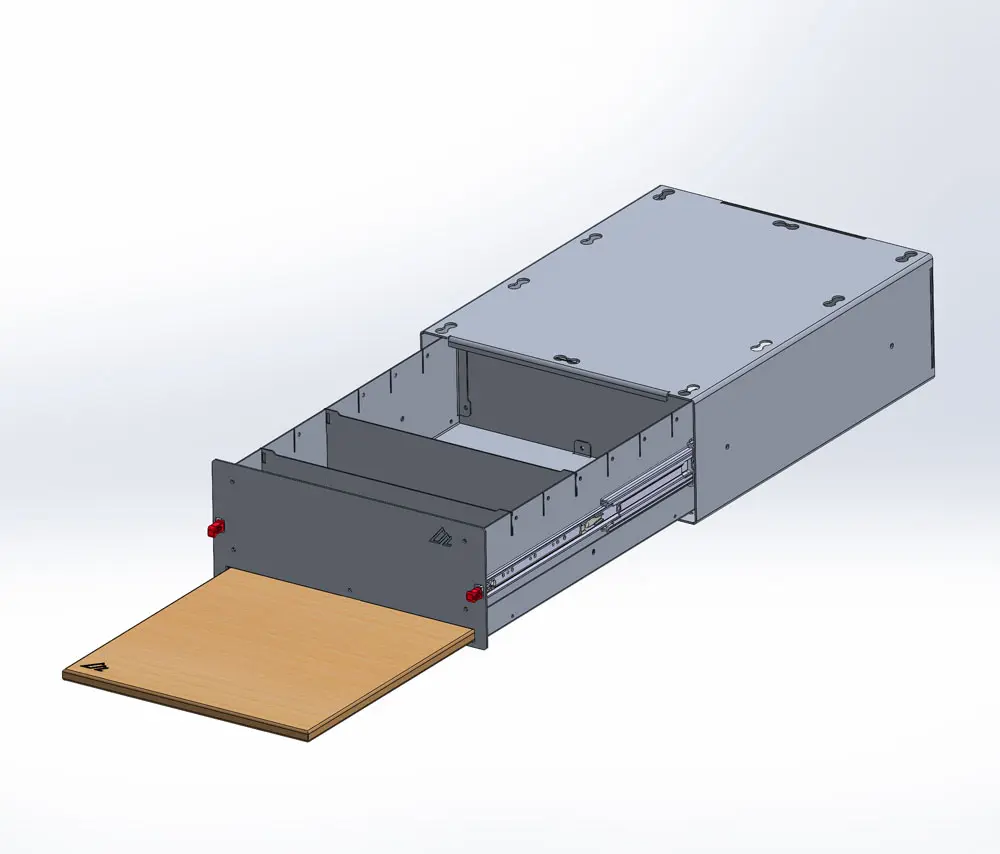

The Duo Drawer is the best of both worlds. It’s a 6″ drawer as well as a table surface that slide out with the drawer tray. The table surface is built from 3/4″ alternating grain bamboo.

Built from 5052 aluminum, these drawers are designed to last a lifetime. The 6th Gen Bronco features a large amount of room in the cargo area (as compared to other SUV’s). Ford has done a great job of giving us access to all of the storage room possible. Our Bronco MASS drawers take advantage of all of this space. This particular drawer has an interior height of 6″.

These drawers are built with locking (in and out) drawer slides that feature a lifetime manufacturer’s warranty. The slides are rated at 500 lbs.

Each drawer ships with two dividers. The dividers can be slid into slots evenly spaced throughout the drawer. They can also be more permanently bolted into place with the provided zinc-coated hardware, including nylon lock nuts.

NOTE: The Bronco Drawers DO NOT work side by side. The striker latch on the Bronco interferes with the faces of the drawers. Please reach out if you have any questions or concerns!

Important Powder Coating Note

Powder coating is a manual process done by humans and may take some time. When you purchase powder coated products from AAL, we coat them for your order. Occasionally, that means delays with non-standard colors, resprays for less-than-perfect conditions, etc. We have a very high standard with powder coated products. We will work to get your parts coated in the best condition possible before they leave the building.

Please visit our Powder Coating Page for more info.

The drawers are “modules”. They are built to stack on top of each other, providing for a large number of configuration options.

The drawers secure with what we call “HD MASS Connectors”. You can think of these as installed nuts. Once you install them into your base (platform, top of bottom drawer, etc.) they can stay installed, making the assembly and disassembly of your module stack very easy. The HD Connectors also mean that you do not have to get below the platform to hold a nut. It also means that there is nothing on your platform to ever wear out.

These drawer modules do not require our MASS Platform. They can be used in a universal system. If you are using these in a universal (ie. “custom”) system, you will not need the HD MASS Connectors. If you are attaching these to our Bronco MASS Platform, you will need the HD MASS Connectors.

HD MASS Connectors

Use HD MASS Connectors when stacking additional MASS modules on top of this drawer or when mounting the drawer to a standard MASS Platform. They are not needed with MASS+ Platforms or Modules since those already include the connection points.

Because these drawers are used in many custom installs, the connectors are sold separately. You can add them to your order using the Frequently Purchased Together box above.

We recommend four HD MASS Connectors to attach this drawer to a MASS Platform.

Learn More

Interior Dimensions:

• Length: 25.4″ (645mm)
• Width: 18.4″ (467mm)
• Height: 6.3″ (161mm)

Exterior Dimensions

• Length: 27.6″ (701mm) – tip of slide handle to rear face of drawer
• Width: 20.3″ (517mm)
• Height: 8.4″ (213mm)

Table Surface

• Width: 18.25″ (464mm)
• Depth: 18.2″ (463mm)

What is the AAL M.A.S.S. System?

M.A.S.S. stands for Modular Adaptable Storage System. The purpose of making this a “system” is so that it can be customized specifically to your needs, be modular enough to change when your needs change, and be durable enough exceed the life of your vehicle. The system all starts with our M.A.S.S. Platform. These platforms are vehicle-specific and serve as the strong foundation for your storage system. The drawers can be used without the platform, but securing them will be up to you. Each platform is built with strength, light weight, durability, and the ability to resist the elements you will endure on your roughest adventures.

Learn More!

Photo Gallery

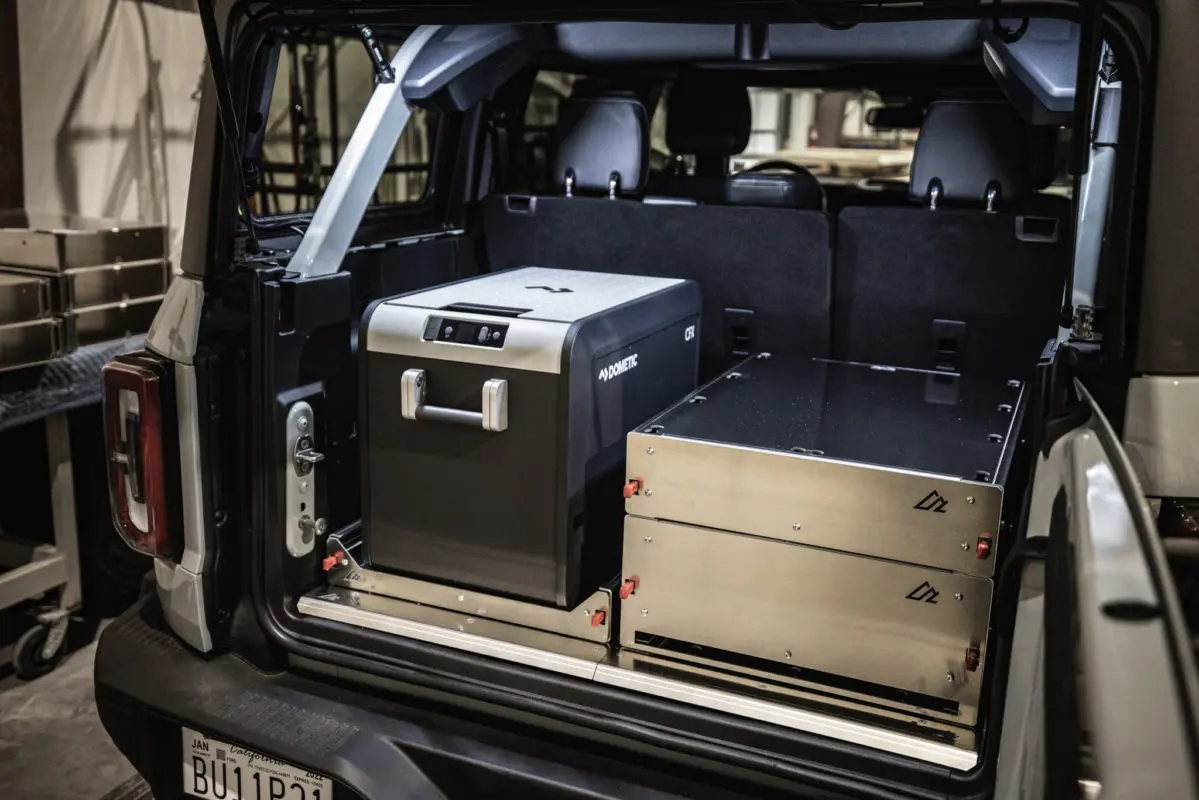

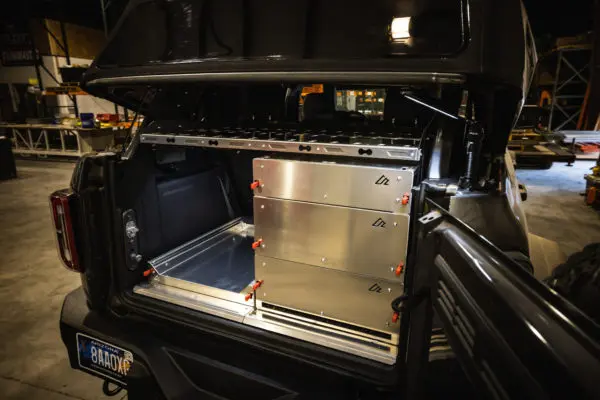

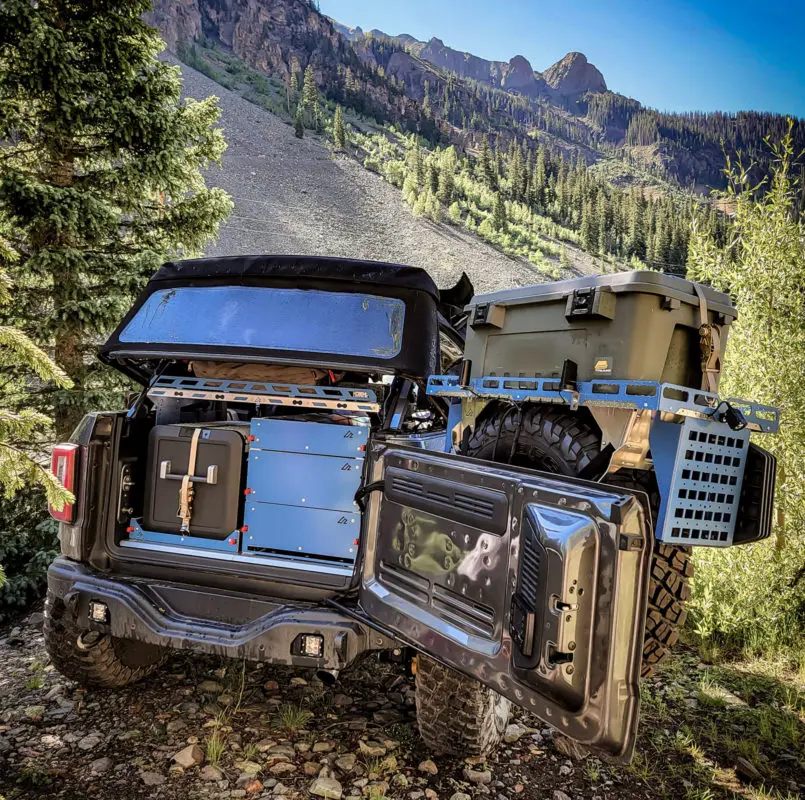

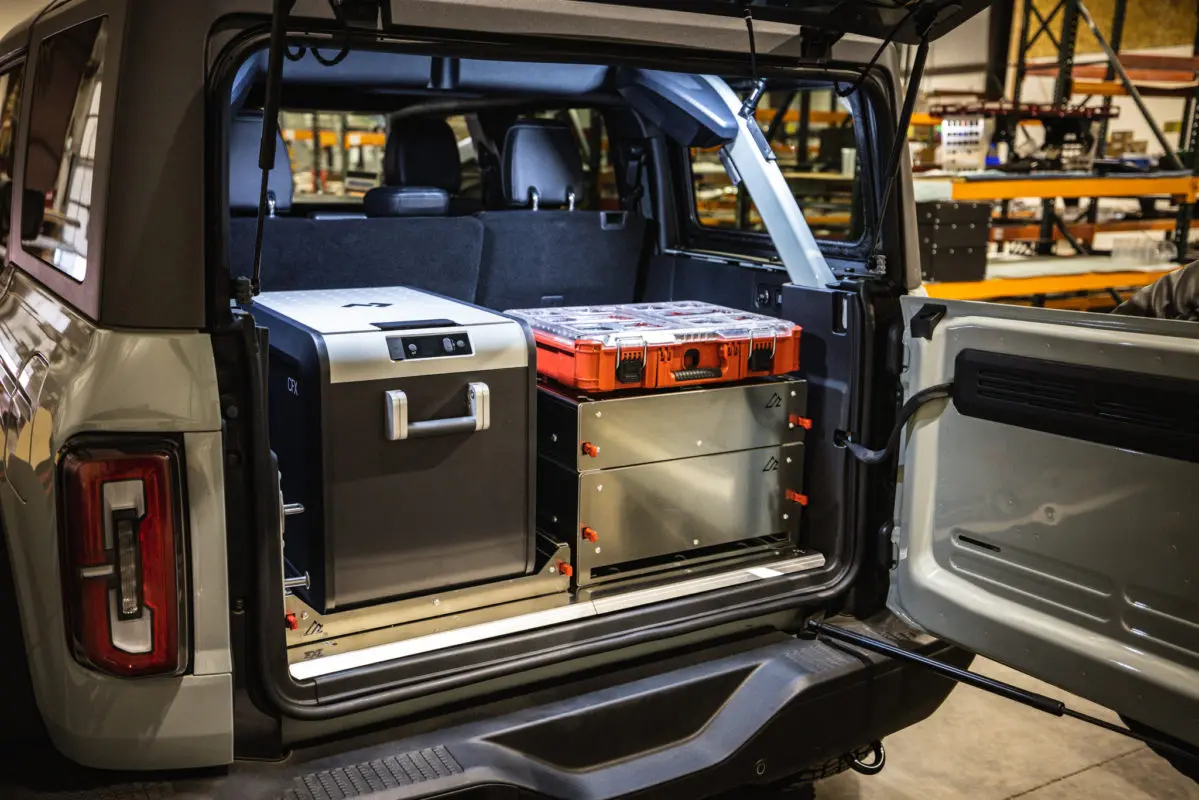

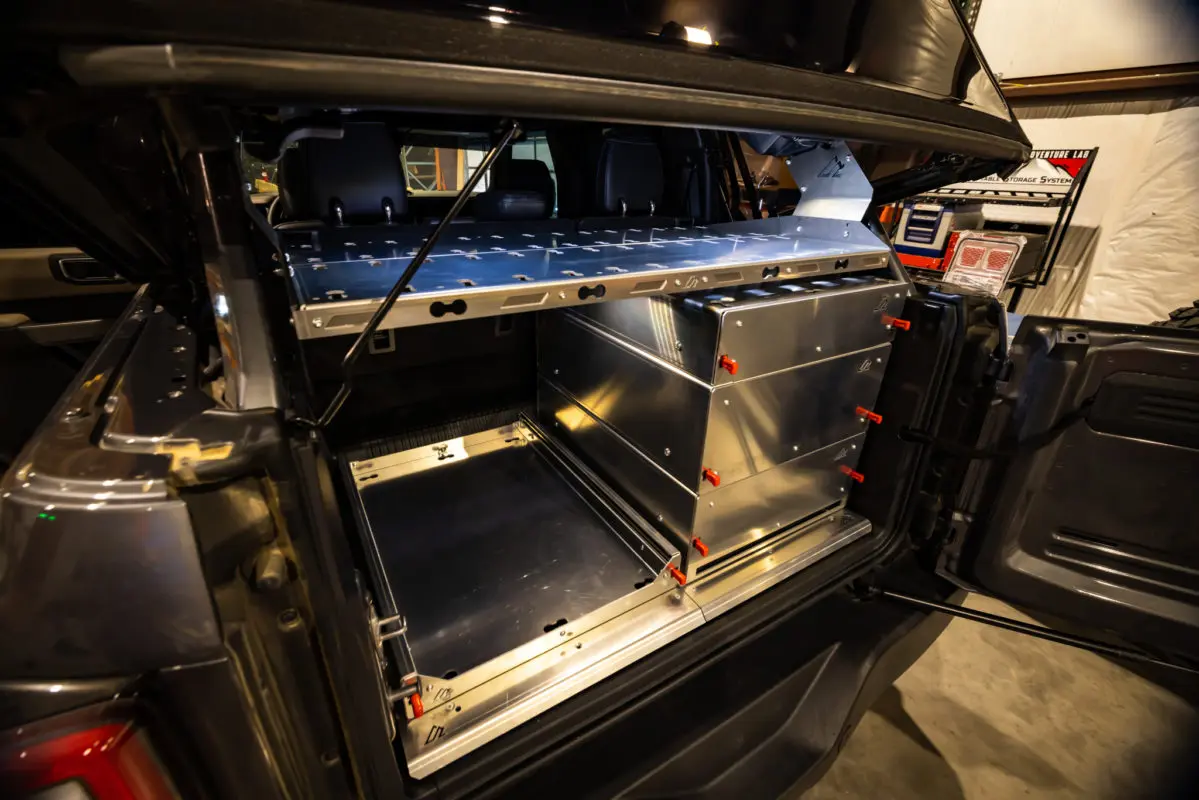

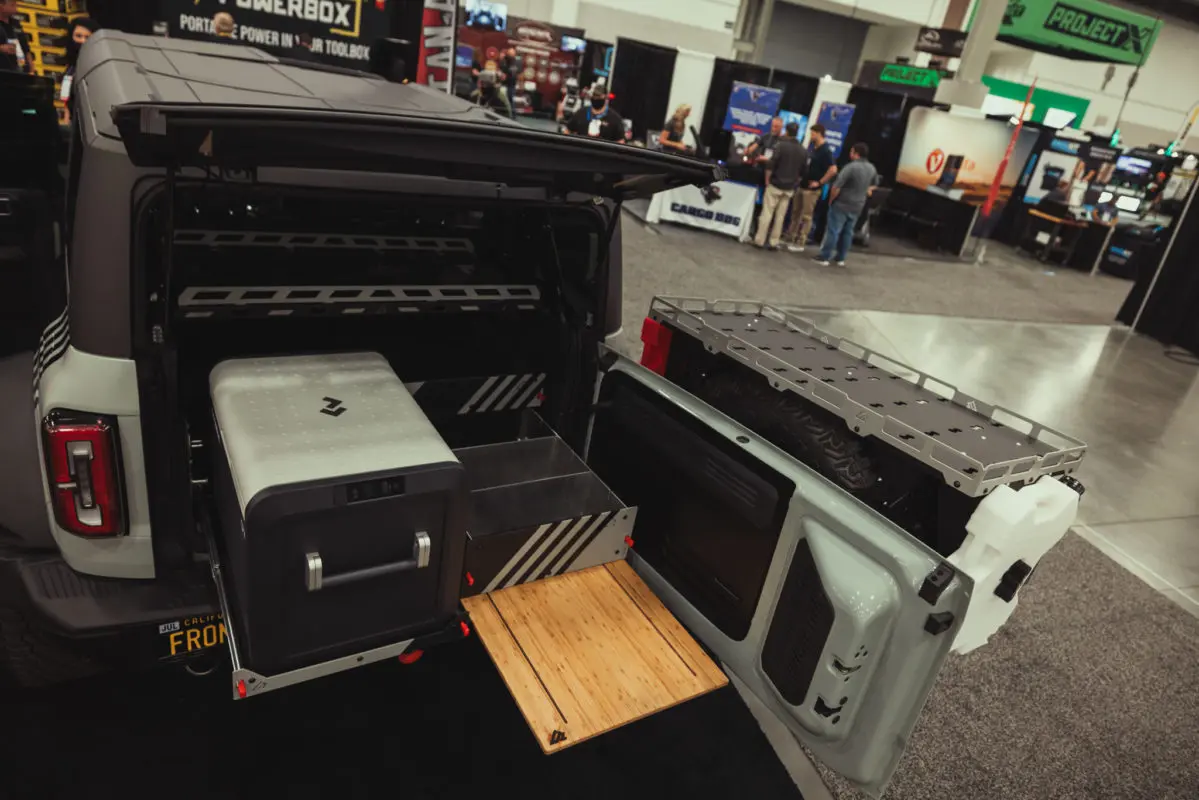

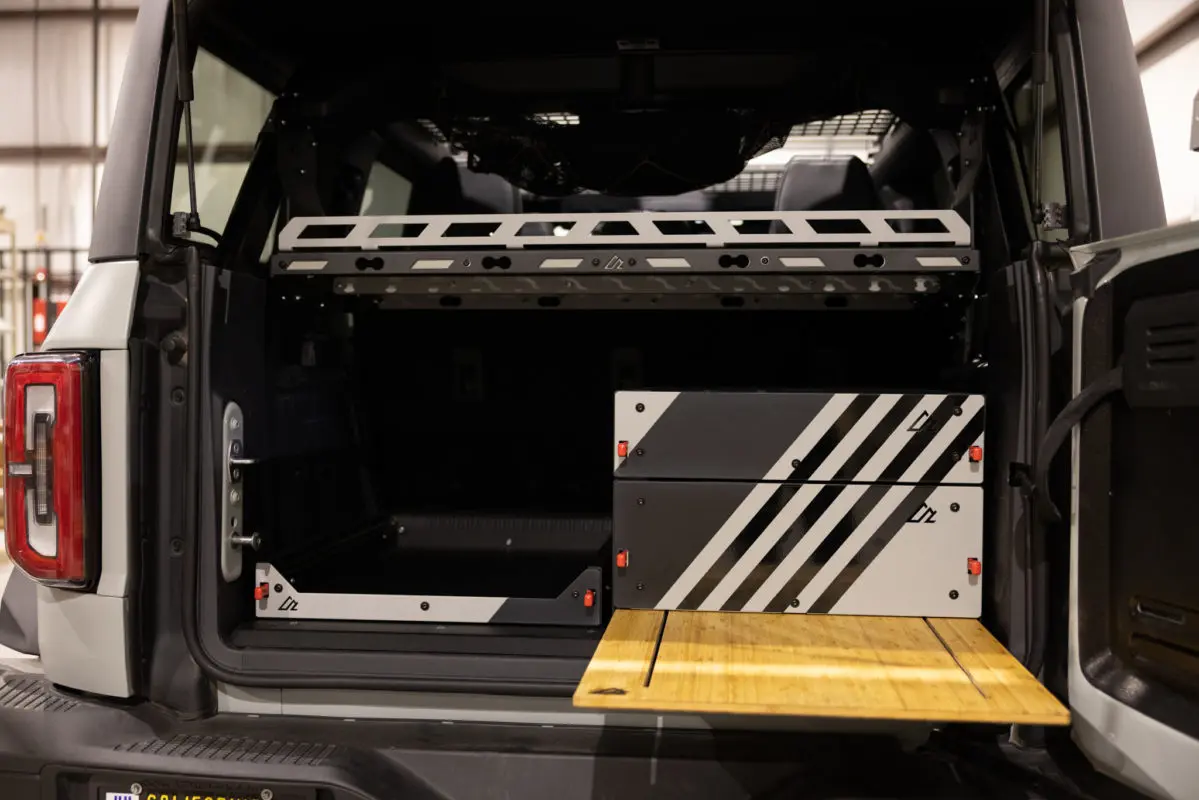

Note: the photos below will show additional products aside from the Ford Bronco M.A.S.S. Duo Drawer. More photos coming soon!
