Badland Jack Mount – 1.5 Ton
Price range: $124.00 through $153.00
Fits only the Harbor Freight BADLAND 1.5 Ton Off-Road Jack (item 70887). Does not fit the 3-ton model or other jacks.
Made in the USA: cut and formed in-house in St. George, Utah, with Textured Black powder-coated in the same shop. Built from lightweight, high-strength 5052 aluminum with corrosion resistance. Cushioned, offset handle supports help control rattling, and a dedicated cradle helps retain the Allen wrench. Available in Raw/Unfinished or Textured Black. Ships fully assembled.
Note: Product photos may contain optional components.
Selected configuration
Choose options to see current availability
-
Ready to ship
-
In production
Choose options to see ready stock and in-production counts. We manufacture in-house, so counts change throughout the day.
AAL Installer NetworkFind an Authorized Installer
Selected
Choose one installer for your entire order. Your selection follows you between products and is confirmed at checkout.
Lightweight Construction. Serious Retention.

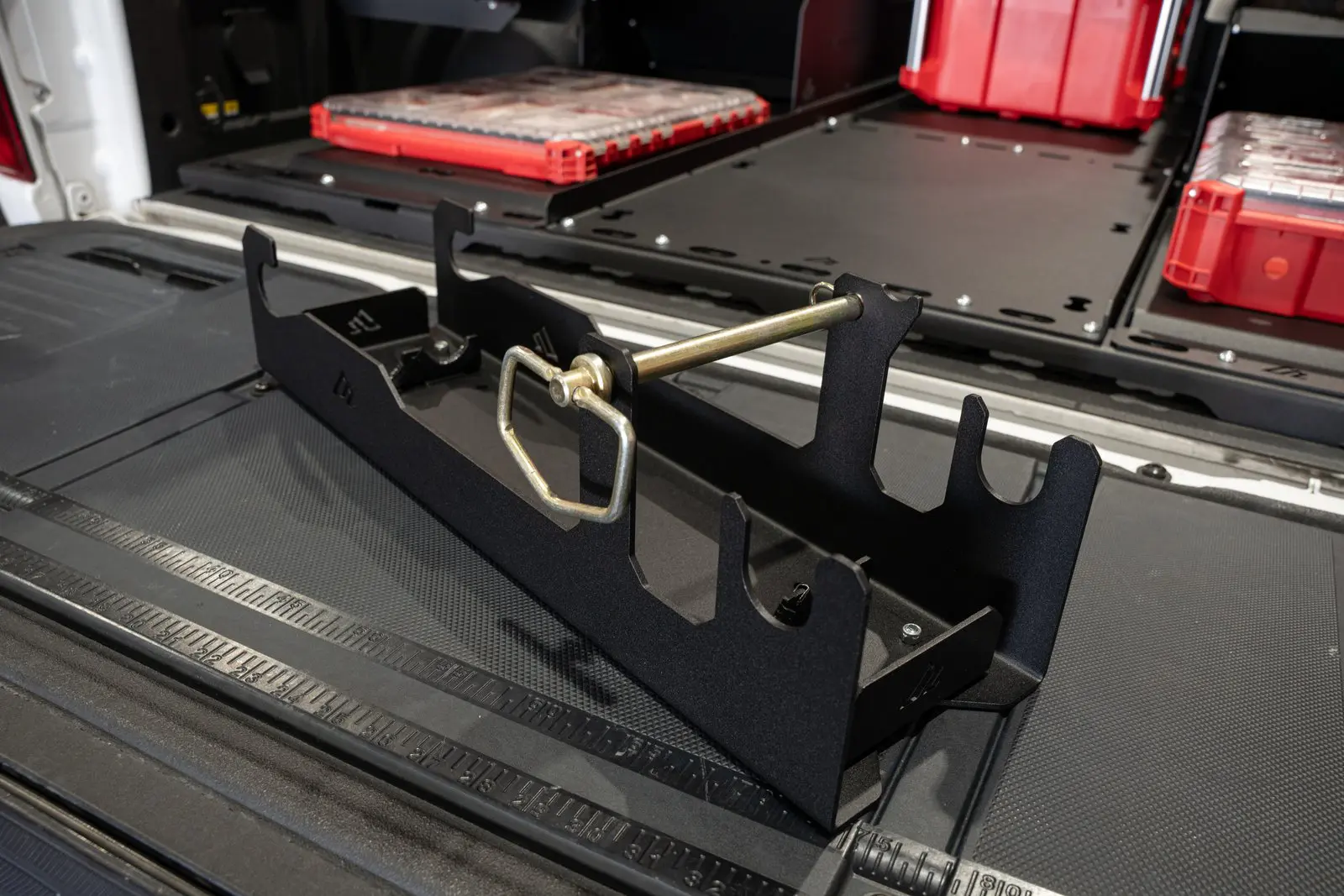

Ships fully assembled. Fits only the Harbor Freight BADLAND 1.5 Ton Off-Road Jack (item 70887). This mount does not fit the BADLAND 3-ton jack or other jack models. View the compatible BADLAND 1.5 Ton Off-Road Jack at Harbor Freight. Your jack mount should earn its space in the rig. We build the Badland Jack Mount – 1.5 Ton from high-strength 5052 aluminum for strength without unnecessary weight, with corrosion resistance built into the material. Mount weight: 3.3 lb. The details make it a premium mount: cushioned, offset handle supports control movement and rattling; a dedicated cradle helps retain the jackās Allen wrench; and the included hitch pin accepts an optional padlock. Each feature solves a specific problem that shows up when the road gets rough. Choose Raw/Unfinished or Textured Black, then mount it with 1/4-20 SAE or M6 metric hardware suited to your setup. Mounting hardware and the optional padlock are not included.See the Badland Jack Mount in Action
How to Load and Secure Your Jack
The AAL mount stores the Harbor Freight BADLAND 1.5 Ton Off-Road Jack, item 70887, with both handle halves beneath it. Watch the demonstration, then use these checks each time you load the jack.- Position the handle halves. Place the foam-covered half in the bracket position with the rectangular cutout. Place the plain half in the other position. The offset, cushioned supports keep both halves snug against the underside of the jack.
- Seat the jack and engage the wrench cradle. Make sure the bracket cradle tucks behind the Allen wrench release button. That engagement helps keep the wrench with the jack while you are fully getting it.
- Secure the retaining bar. Fit the retaining bar and secure it with the included hitch pin and R clip. For optional locking, replace the R clip with a padlock through the pin’s retaining hole. Use a 3/16-inch shackle; the padlock is not included.
- Check before heading out. Confirm that the jack and handles are seated, the wrench cradle is behind the release button, and the retaining pin is secured.
Removing the Jack
Remove the R clip or unlock and remove your padlock, then withdraw the hitch pin and remove the retaining bar. Lift the jack out of the mount and retrieve the handle halves. This mount fits the 1.5-ton BADLAND off-road jack only. Mounting hardware is not included.Why Choose the AAL Badland Jack Mount?
Built specifically for the Harbor Freight BADLAND 1.5 Ton Off-Road Jack, item 70887, this mount combines jack retention with organized handle storage and thoughtful details for rough-road travel.- Lightweight, corrosion-resistant construction: High-strength 5052 aluminum provides strength without unnecessary weight.
- Handle storage designed to control rattling: Cushioned brackets account for the different handle diameters, keeping both halves snug against the underside of the jack.
- A cradle that helps retain the Allen wrench: The bracket seats behind the wrench release button to make unintended removal harder while the jack is mounted.
- Optional locking: The included hitch pin accepts a padlock with a 3/16-inch shackle. The padlock is not included.
- Built in our Utah shop: Cut and formed in-house in St. George, with the Textured Black finish powder-coated in-house.
- Ships fully assembled: Ready for installation onto your mounting surface. Mounting hardware is not included.
Made in the USA. Built in Our Utah Shop.
Built to Keep the Handles Quiet
Loose jack handles are a rattle waiting to happen. We use edge molding on the handle brackets and offset the two storage positions to keep both handle halves snug against the underside of the jack.Two Diameters. One Snug Fit.
The protective foam makes one handle half larger in diameter than the other. Giving both halves the same seating height would leave uneven contact. Our brackets account for that difference, so both halves make proper contact with the bottom of the jack when it is secured in the mount. The edge molding cushions the handle supports to help control rattling and vibration.Foam Half Over the Rectangular Cutout
Place the foam-covered handle half in the bracket position with the extra rectangular cutout. Use the other position for the plain handle half. That orientation gives the two halves the correct height offset and keeps them from moving beneath the jack.
How the Handle Supports Work
- Foam-Covered Handle Half: The foam increases its diameter, so it needs a different seating height.
- Rectangular Cutout: Identifies the bracket position for the foam-covered half.
- Contact With the Jack: The offset supports align both handle halves against the underside of the jack.
- Plain Handle Half: Uses the other bracket position to account for its smaller diameter.
- Edge Molding: Cushions the handle supports to help control rattling and vibration.
Lock It With an Optional Padlock
The included hitch pin accepts an optional padlock through its retaining hole. Remove the R clip and pass the padlock shackle through that hole to lock the pin in place.Choosing Your Own Lock
Use a padlock with a 3/16-inch shackle diameter. That is the size to look for if you prefer your own keyed lock. The hitch pin and R clip are included; the padlock is optional and is not included.
Padlock Hardware Shown Above
- Included Hitch Pin: Holds the retaining bar in position.
- Padlock Shackle: Passes through the hole in the hitch pin, replacing the R clip.
- Optional Padlock: Choose a lock with a 3/16-inch shackle diameter. The padlock is not included.
Keep the Allen Wrench Along for the Ride
The Allen wrench used to install the jack extension should stay with the jack while you are fully getting it. We built a small cradle into the bracket that tucks behind the wrench release button, making the wrench harder to remove while the jack is mounted.Tuck the Cradle Behind the Release Button
When loading the jack, make sure the bracket cradle seats behind the Allen wrench release button before securing the jack in the mount. If the cradle is not behind the button, the wrench can work itself loose during rough driving. Check that engagement each time you load the jack.
Correctly Seated in the Mount
- Release Button: Releases the stored Allen wrench.
- Bracket Cradle: Tucks behind the button to help retain the wrench while the jack is mounted.
- Allen Wrench: Stored on the jack and used to install the extension.
Mount Specifications
| Mount Weight | 3.3 lb |
|---|---|
| Material | High-strength, corrosion-resistant 5052 aluminum |
| Jack Compatibility | Harbor Freight BADLAND 1.5 Ton Off-Road Jack, item 70887 only |
| Mounting Hole Diameter | 7 mm |
| Mounting Hole Center Spacing | 152.4 mm (6 in.) lengthwise; 76.2 mm (3 in.) crosswise |
| Compatible Mounting Bolts | 1/4-20 SAE or M6 metric. Mounting hardware is not included. |
| Optional Padlock Shackle Diameter | 3/16 in. Padlock is not included. |
| Assembly | Ships fully assembled. Installation onto your mounting surface is required. |
Fitment and Installation
Fits only the Harbor Freight BADLAND 1.5 Ton Off-Road Jack (item 70887). This mount does not fit the BADLAND 3-ton jack or other jack models. View the compatible BADLAND 1.5 Ton Off-Road Jack at Harbor Freight. The mount uses 7 mm mounting holes, compatible with 1/4-20 SAE bolts or M6 metric bolts. Choose mounting hardware to suit your mounting surface. Mounting hardware is not included.Mounting Orientation
We recommend carrying the jack horizontally in its normal operating orientation. Harbor Freightās manual does not specify approval for vertical storage. Vertical storage may allow hydraulic fluid leakage or require bleeding before use. Fully lower the jack before transport, and inspect and test it before lifting a vehicle.Mounting Hole Pattern
- Hole Diameter: 7 mm.
- Lengthwise Center Spacing: 152.4 mm (6 inches) between adjacent mounting holes in the same row.
- Crosswise Center Spacing: 76.2 mm (3 inches) between opposing mounting holes.
- Compatible Bolts: 1/4-20 SAE or M6 metric.
What Should I Look for in a Mount for My Harbor Freight BADLAND Jack?
Start with compatibility with your exact jack model, then consider jack retention, handle storage, mounting-hole layout and access for loading and removal. The AAL mount fits only the BADLAND 1.5 Ton Off-Road Jack, item 70887. Its offset, cushioned handle supports, Allen wrench retention cradle and optional padlock provision address those storage and retention needs.Be the first to review “Badland Jack Mount – 1.5 Ton”
