Jeep Wrangler JL / JLU · On-Board Air
Choose where the compressor will live before choosing the hose connection. A JL can use under-seat, cargo-area, tailgate, or spare-tire mounting, but the right option depends on the engine, seats, and equipment already in the Jeep.
Start with your seat type and cargo layout, then match the bracket to your ARB compressor. The 392 cargo cubby needs its own single-compressor bracket.
Compare Mounting Locations
Jeep JL Tailgate Air Command System shown with selected components. Review the selected product for included components and optional accessories.
| Location | What It Does | Check Before Ordering |
|---|---|---|
| Under the Front Seat | Use the space beneath a front seat when the Jeep has manual seats. The bracket can be installed on either side; the optional coupler/switch connection kit must match the selected side. | Does not fit power-seat vehicles. The current listing provides mounting holes for ARB brushed and brushless twin compressors. |
| Below the Rear Cargo Floor | Place a twin ARB compressor in the rear cargo compartment. The current mount offers engine-specific bracket choices for 3.6L/2.0L and diesel applications. | Confirm engine and cargo-compartment fitment. Preserve cooling airflow for extended compressor use. The 392 uses a separate, smaller cargo bracket. |
| In the 392 Cargo Cubby | The reduced cargo cubby in the Wrangler 392 needs its own bracket. This option holds an ARB single compressor or an Odyssey PC950 battery. | One or the other: this bracket does not hold the compressor and battery together. It is a single-compressor solution, not a twin-compressor mount. |
| Inside the Tailgate | TACS places a twin ARB compressor in a tailgate system with a fold-down table and MOLLE panel. Current options include air-management, hose-reel, and monitoring components. | Check fridge, drawer, and tailgate clearances. Select the required components on the bundle page; a pictured compressor or accessory is not automatically included. |
| Behind the Spare Tire | Move the twin ARB compressor to the exterior tailgate area behind the spare. The adjustable mount replaces the OEM spare-tire carrier. | Review wheel size and offset, spare-tire arrangement, wiring, and camera/light relocation requirements before ordering. |

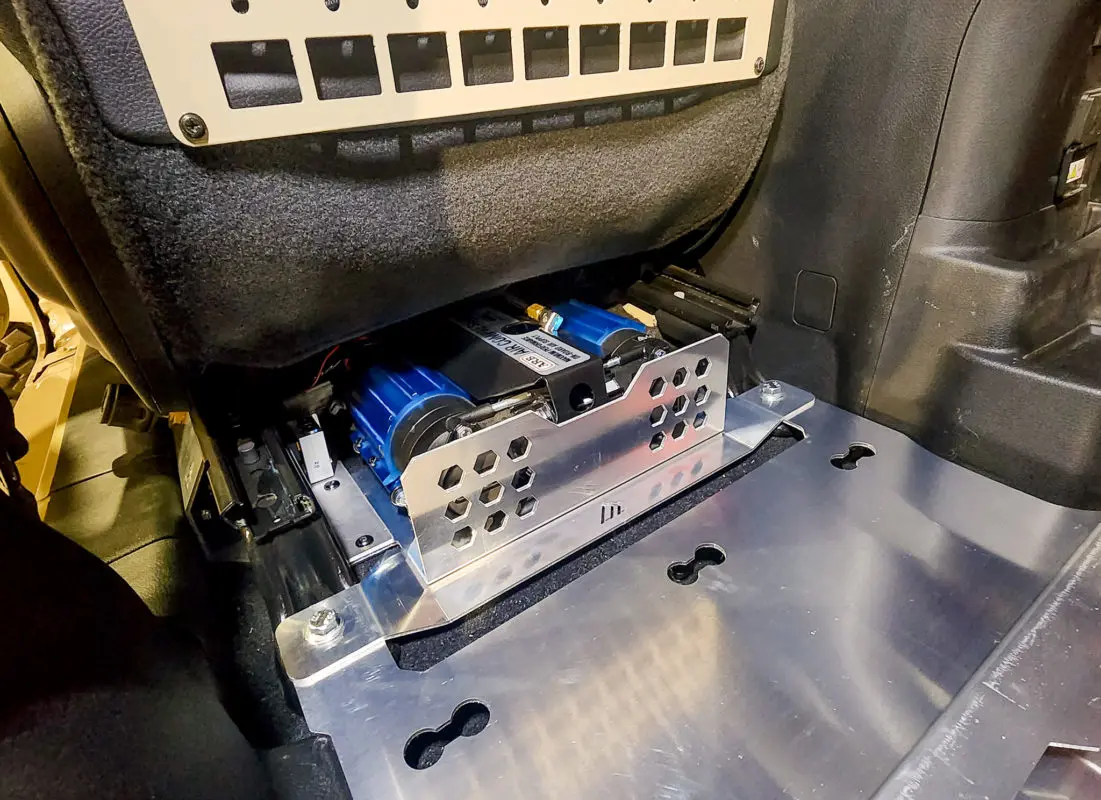

Under the Front Seat
Use the space beneath a front seat when the Jeep has manual seats. The bracket can be installed on either side; the optional coupler/switch connection kit must match the selected side.
Does not fit power-seat vehicles. The current listing provides mounting holes for ARB brushed and brushless twin compressors.

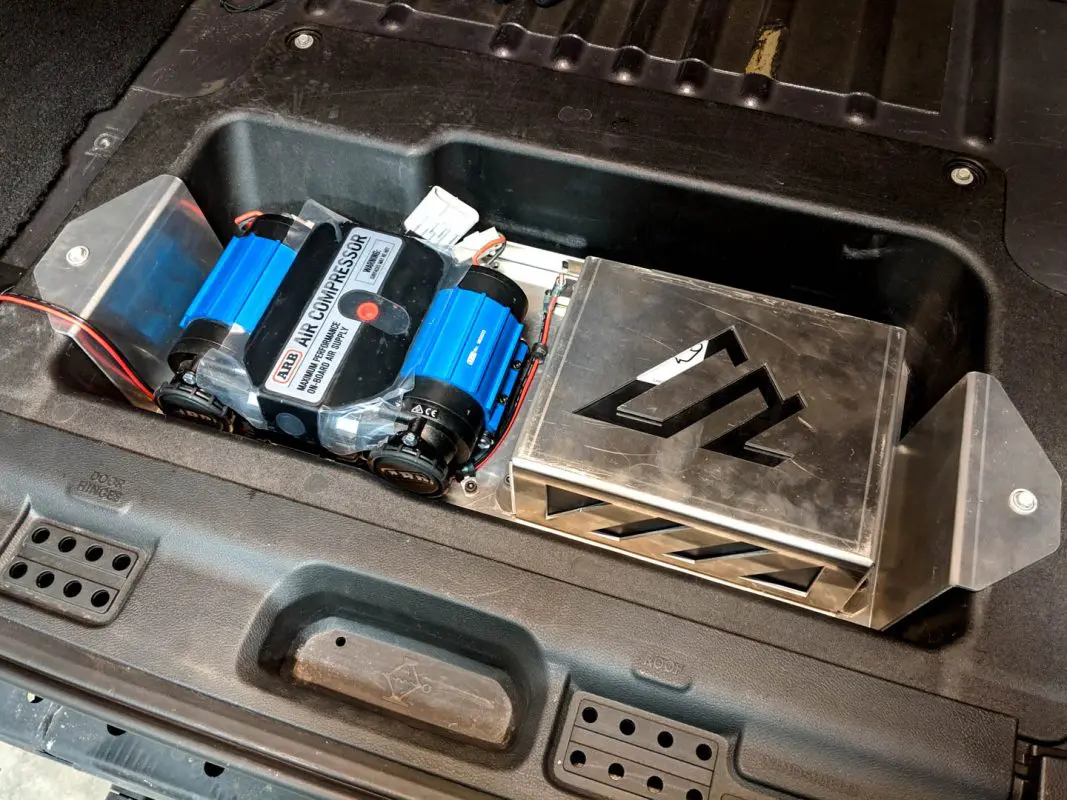

Below the Rear Cargo Floor
Place a twin ARB compressor in the rear cargo compartment. The current mount offers engine-specific bracket choices for 3.6L/2.0L and diesel applications.
Confirm engine and cargo-compartment fitment. Preserve cooling airflow for extended compressor use. The 392 uses a separate, smaller cargo bracket.
In the 392 Cargo Cubby
The reduced cargo cubby in the Wrangler 392 needs its own bracket. This option holds an ARB single compressor or an Odyssey PC950 battery.
One or the other: this bracket does not hold the compressor and battery together. It is a single-compressor solution, not a twin-compressor mount.

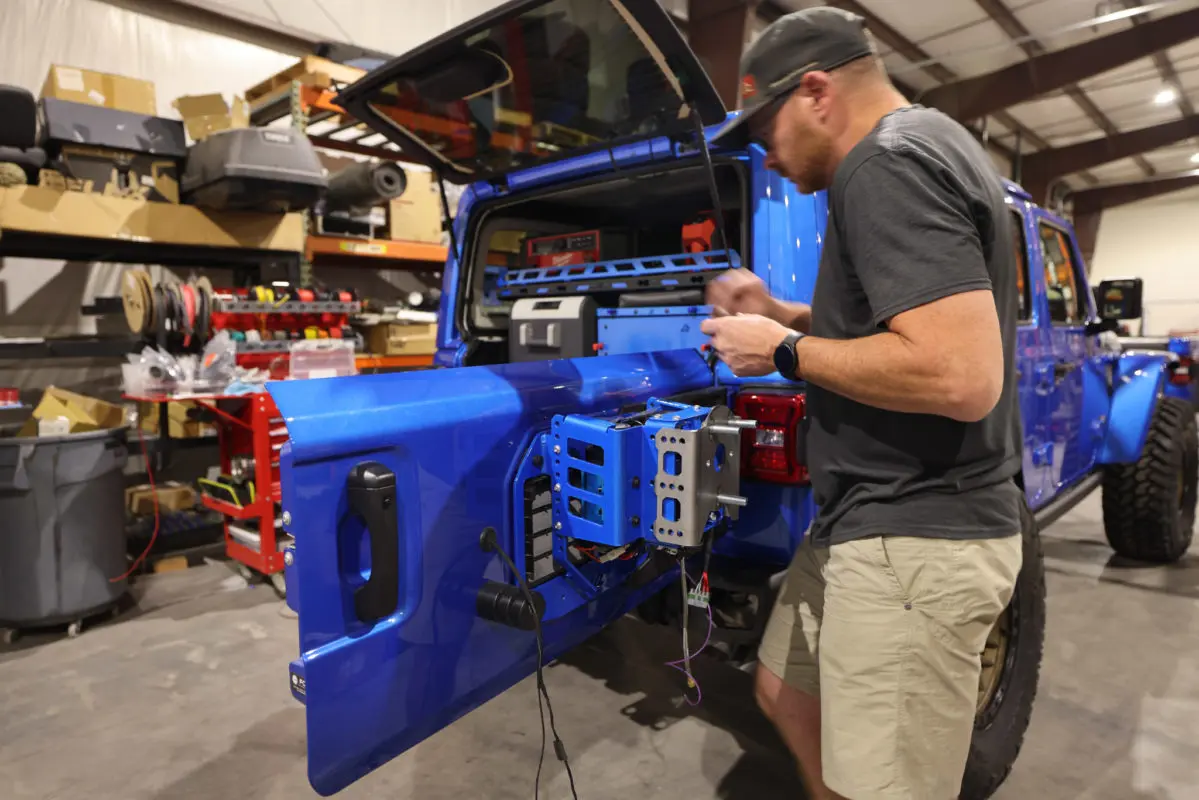

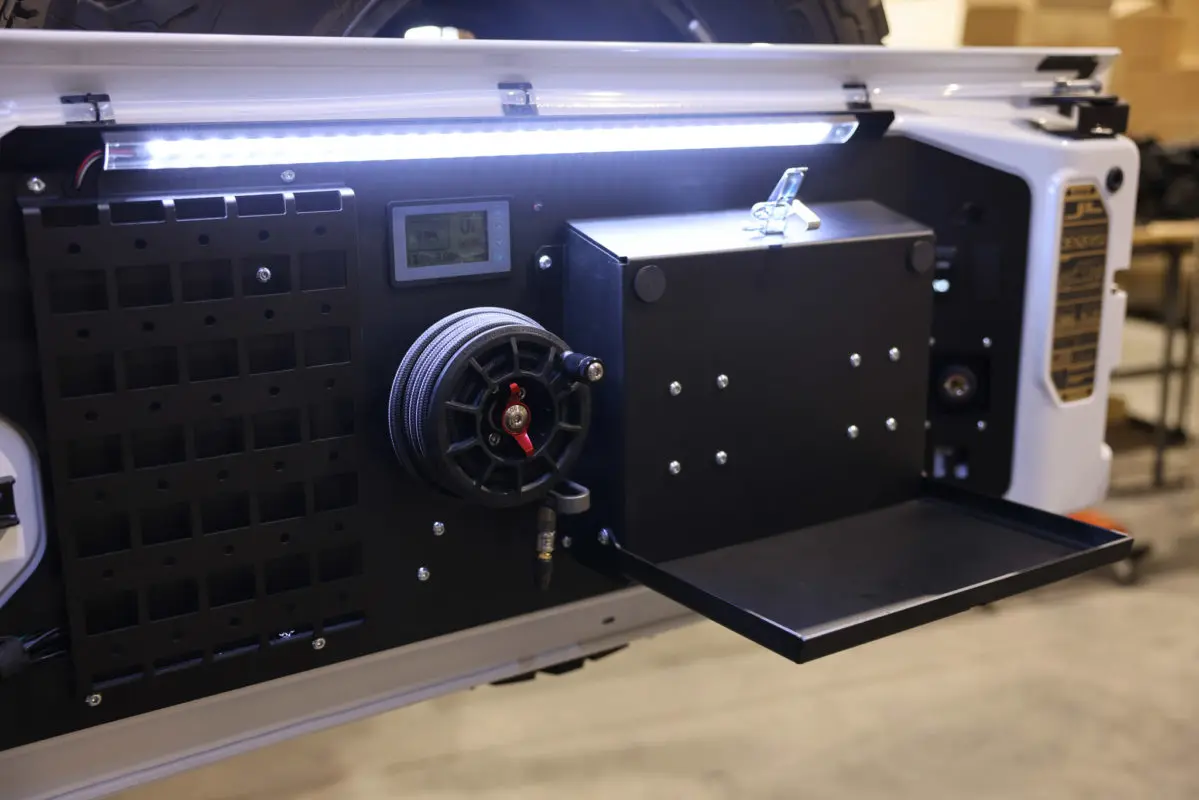

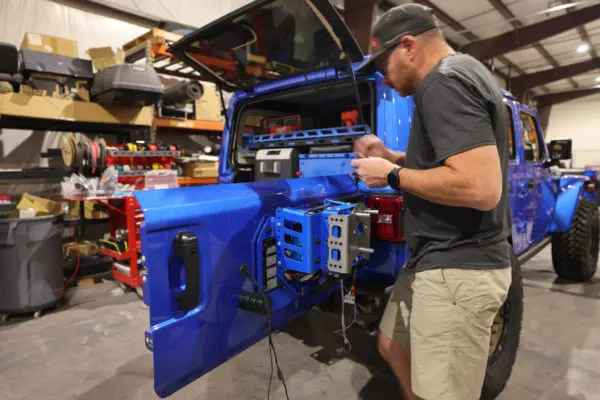

Inside the Tailgate
TACS places a twin ARB compressor in a tailgate system with a fold-down table and MOLLE panel. Current options include air-management, hose-reel, and monitoring components.
Check fridge, drawer, and tailgate clearances. Select the required components on the bundle page; a pictured compressor or accessory is not automatically included.
Behind the Spare Tire
Move the twin ARB compressor to the exterior tailgate area behind the spare. The adjustable mount replaces the OEM spare-tire carrier.
Review wheel size and offset, spare-tire arrangement, wiring, and camera/light relocation requirements before ordering.
The mounting bracket locates the compressor. The connection kit determines where you reach the air chuck and switch. Some setups use a side-specific connection kit; others route the air line to a different point in the vehicle.
Under-seat ARB Pressure Control connection kit: review the selected under-seat arrangement and components.
JL ARB Compressor Remote Kit: review the listed model-year and roof requirements. The current listing specifies pre-2024 applications and notes that Sky One-Touch use requires modifications.

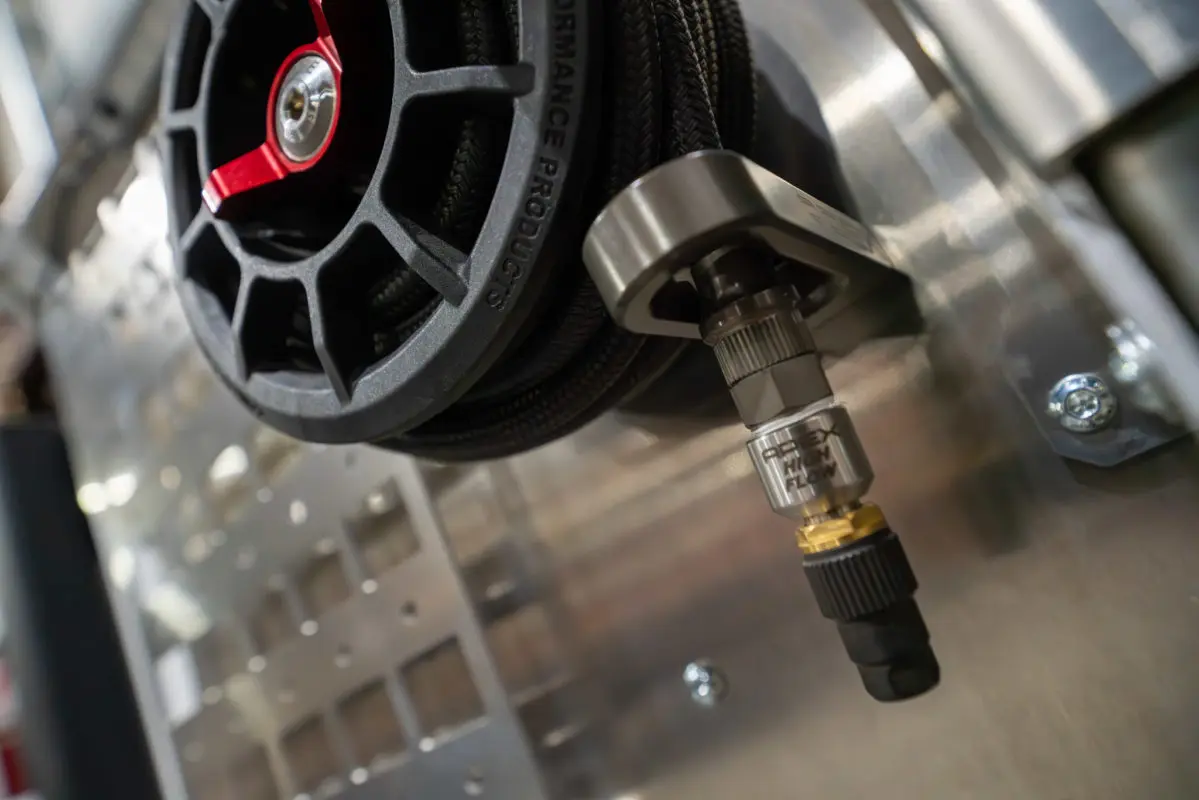

The offset C-pillar bracket places an Apex CRS reel outboard to preserve cargo space. The listing supports 20-foot and 35-foot reels, with different inward clearance.

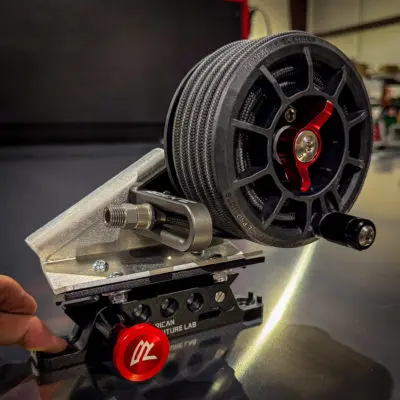

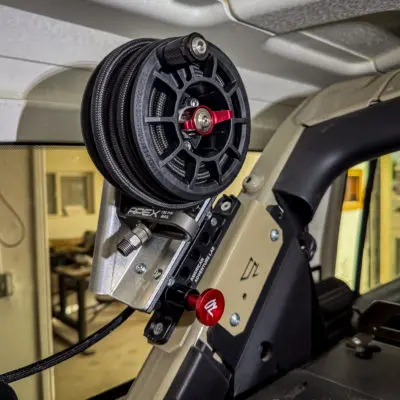

View Fixed Offset C-Pillar MountUse the rear roll-cage quick-release option when you want a removable reel arrangement. The current listing is for a JLU without the soft top, either hardtop or topless.
View JLU Quick-Release Reel MountSelect the reel, mounting components, and hose connections on the individual product page.
Single, twin brushed, and twin brushless compressors do not share every bracket. Confirm compatibility on the exact mount you select.
Account for power seats, cargo-floor space, fridge and drawer travel, and tailgate equipment. A mounting location that works in one build may conflict with another.
Check which compressor, wiring, fittings, switches, and connection components are included with your selected options.
Ask AAL about your JL setup. Include your model year, engine, seat type, compressor model, and a photo of the mounting area.
Building a JK, Gladiator, or Bronco? Browse ARB compressor mounts by vehicle.
Existing installation examples from this page. Compare the pictured components with the current product options for your build.
