Rigid Mount for RedVision Color Display

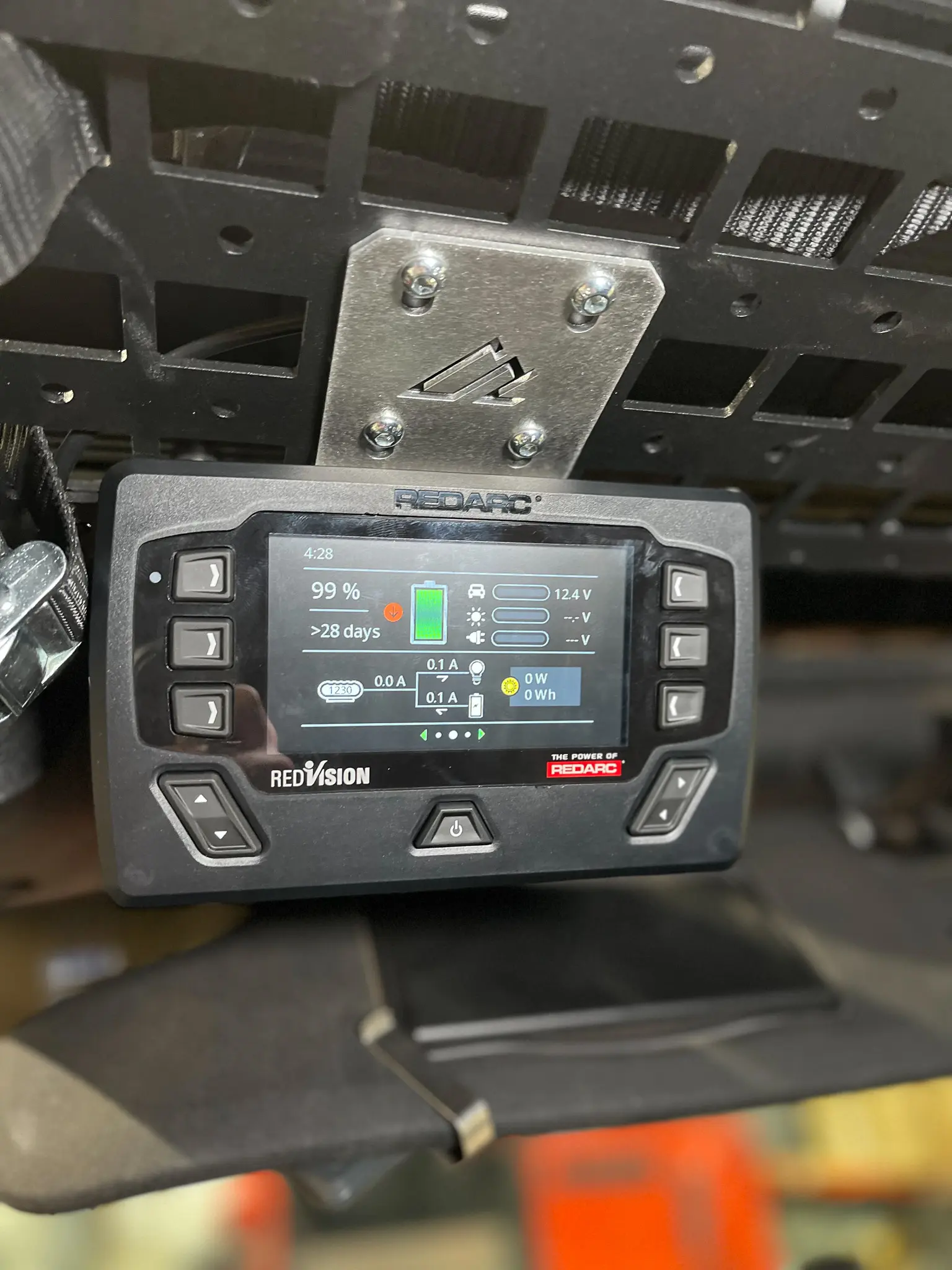

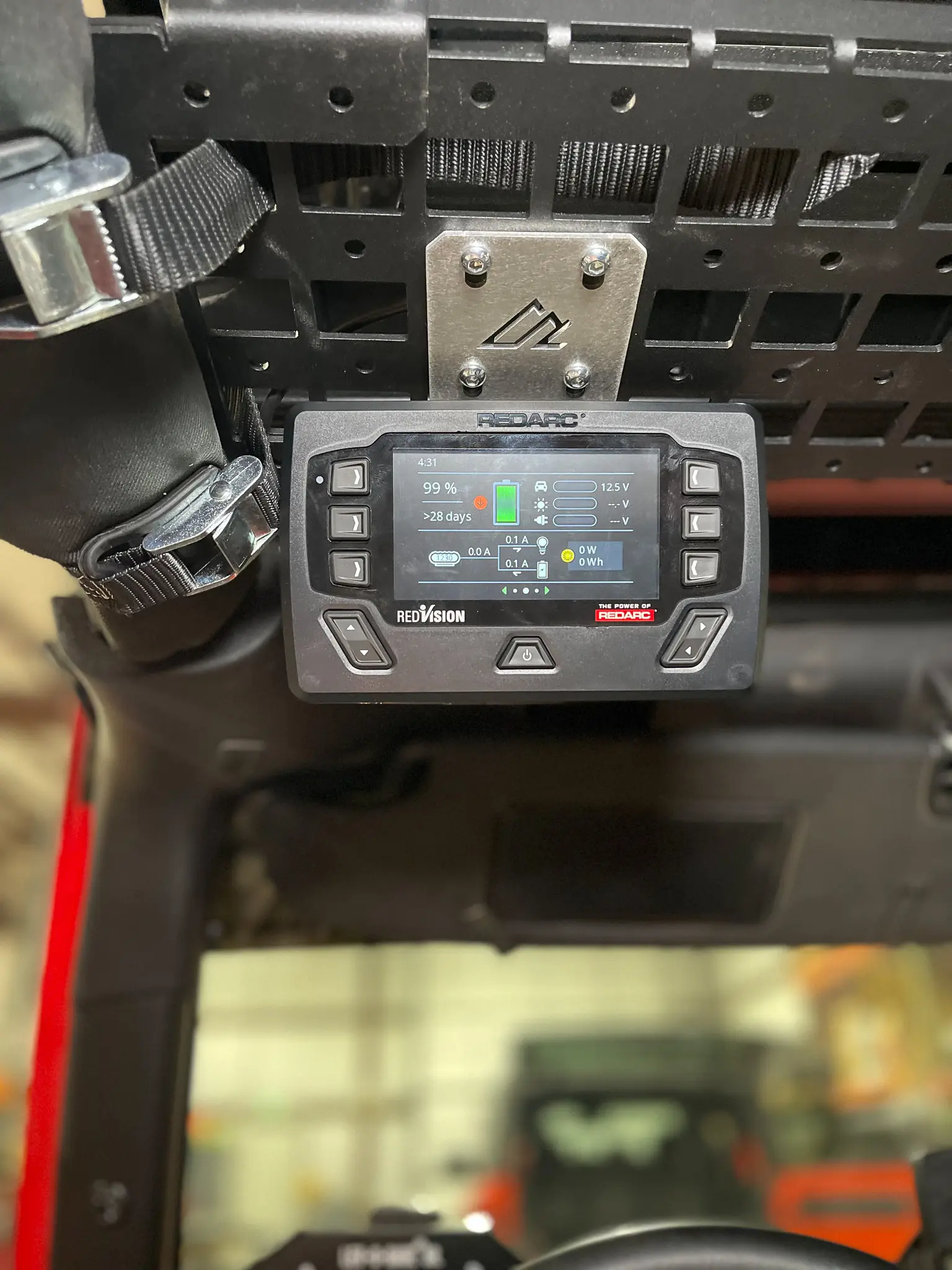

This is our rigid mount for the REDARC RedVision Color Display that mounts to our Overhead MOLLE Shelfs. This keeps the display up and out of the way but still very accessible.

NOTE: This does not come with the REDARC RedVision Color Display this is the back bracket that attaches to the Display and the “Rigid” bracket that attaches it to the Overhead MOLLE Shelf.

Installation Instructions

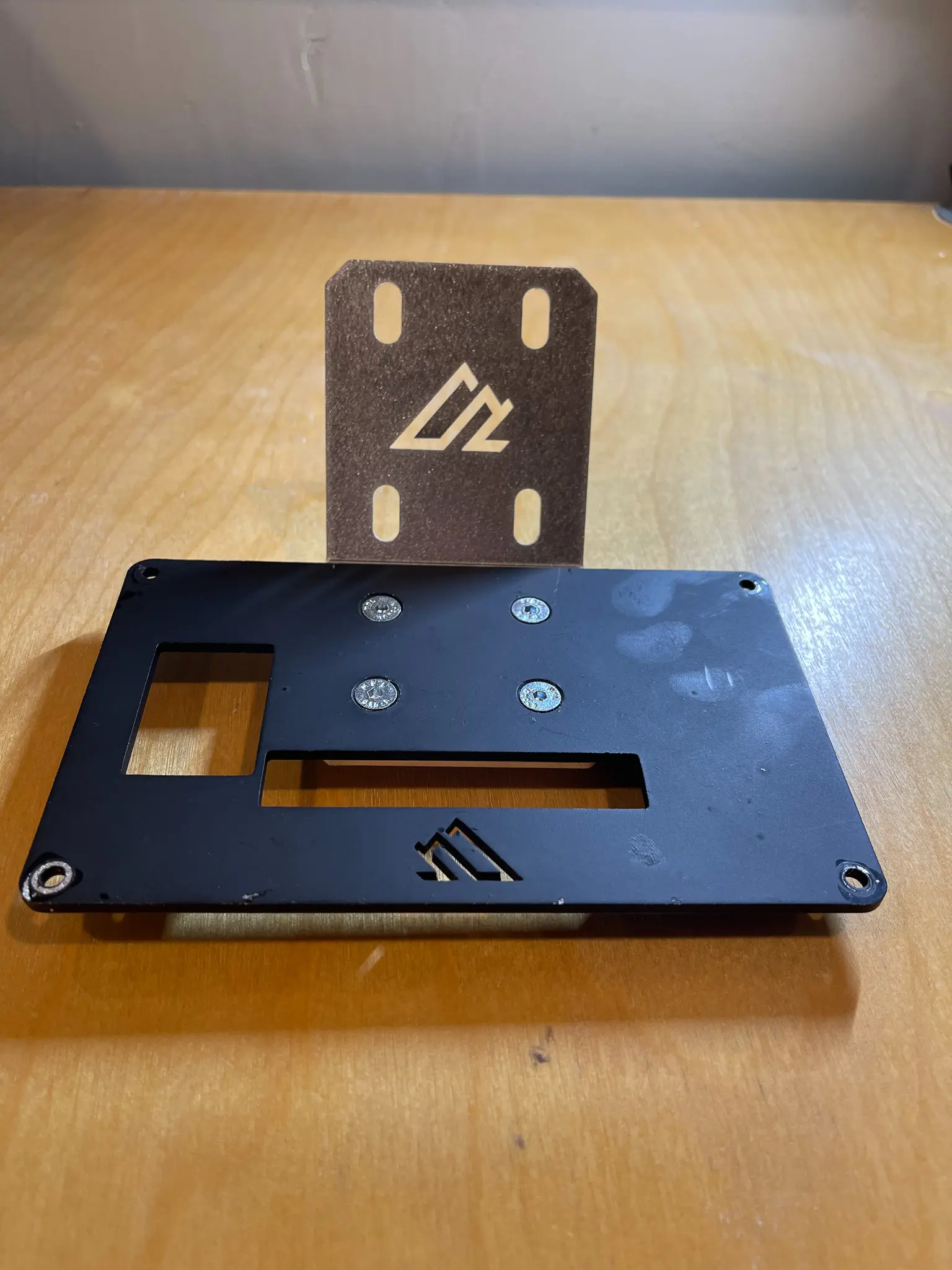

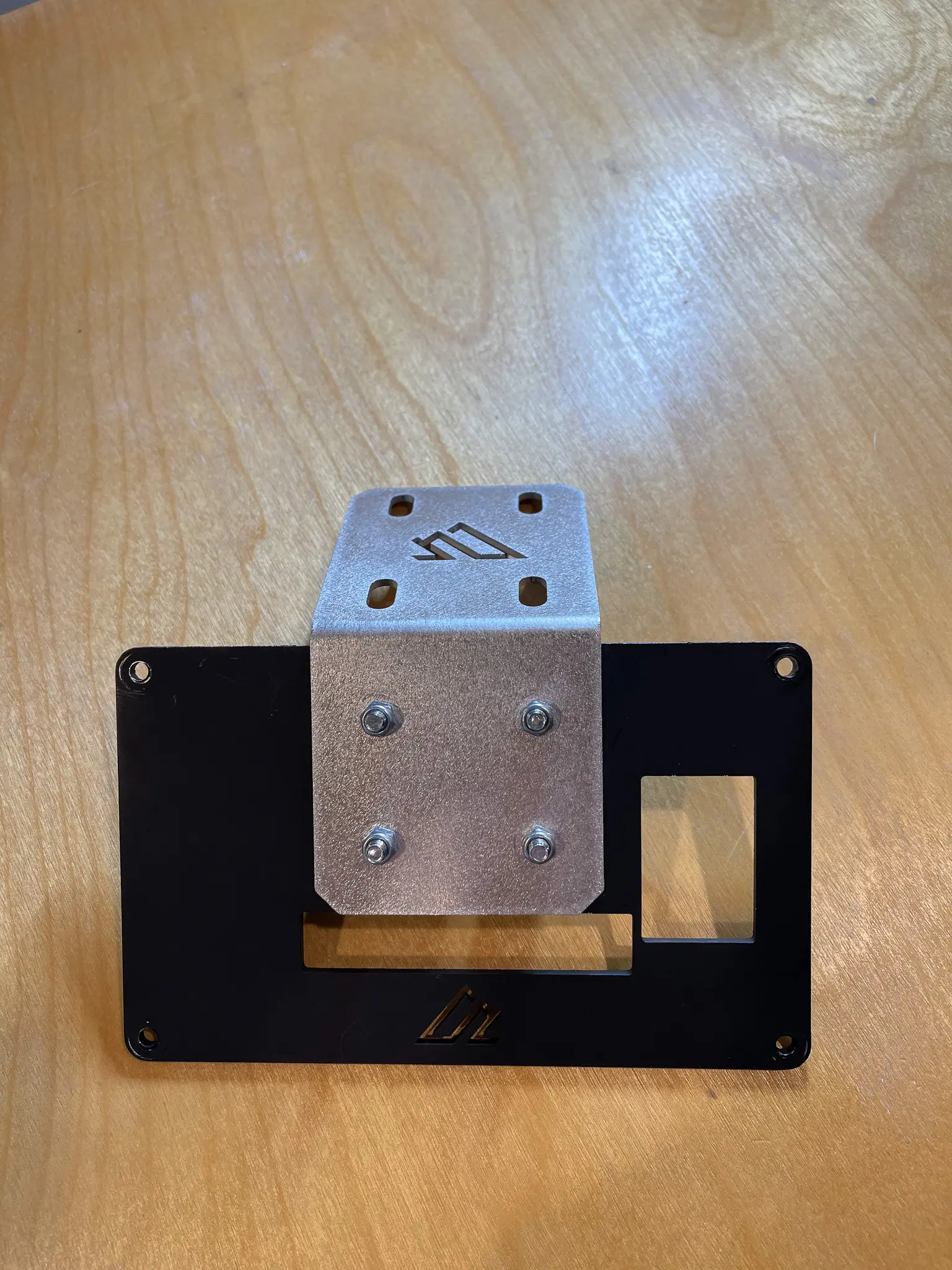

1. Attach the Display Bracket (shown in black in the photos above) to the Rigid Mount Bracket (shown in raw aluminum above) using the M5 Flat Head Bolts and M5 lock nuts. Tighten.
2. Remove the bezel from the RedVision Display, if it is already attached. Using the M4x20mm button head bolts, attach the RedVision display to the assembled bracket from the first step. The nuts will go on the back side of the bracket. The button head side of the bolt will tuck into the cavity within the RedVision display. Tighten slightly. Do not overtighten these bolts as it will damage your display.

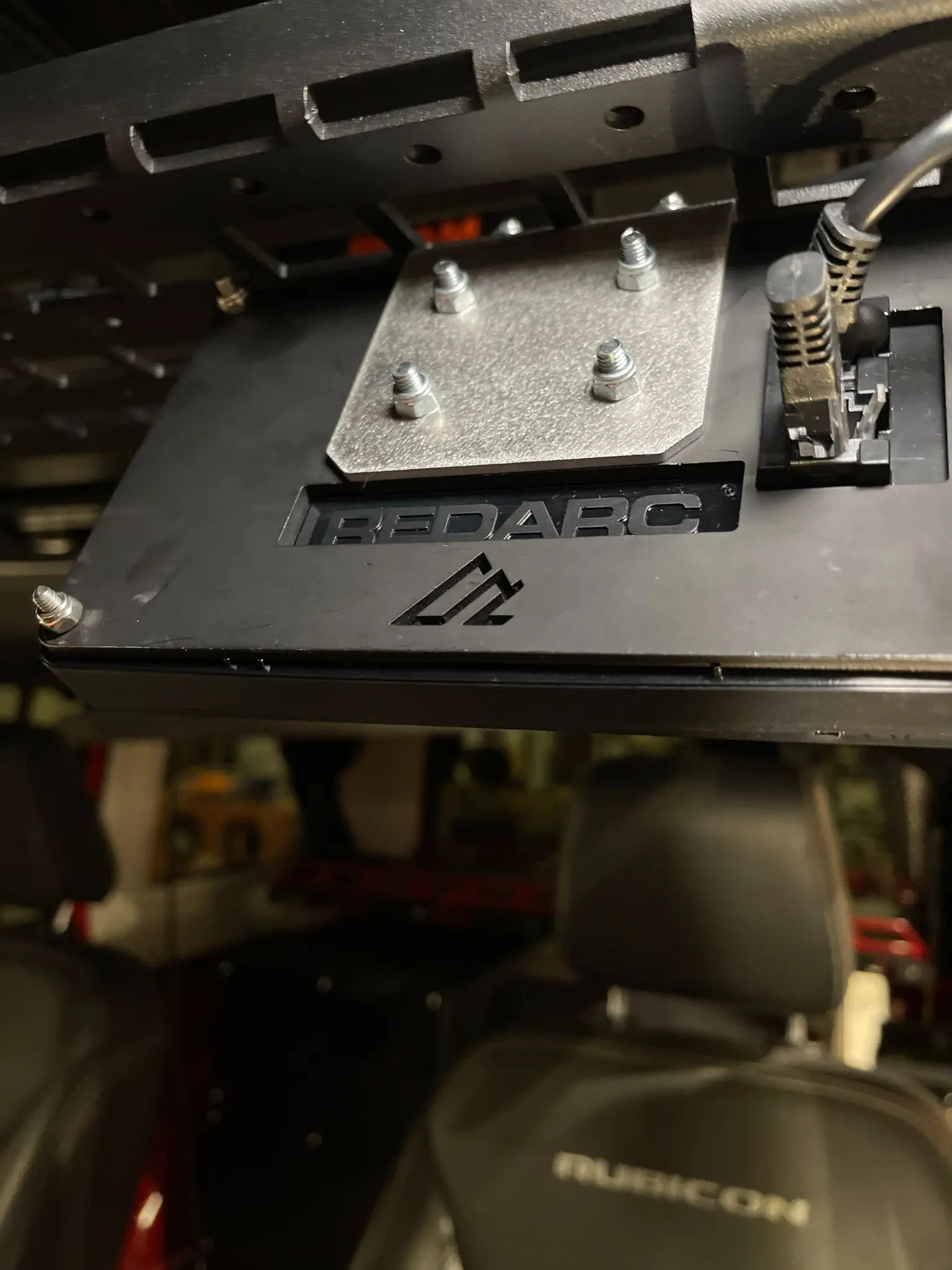

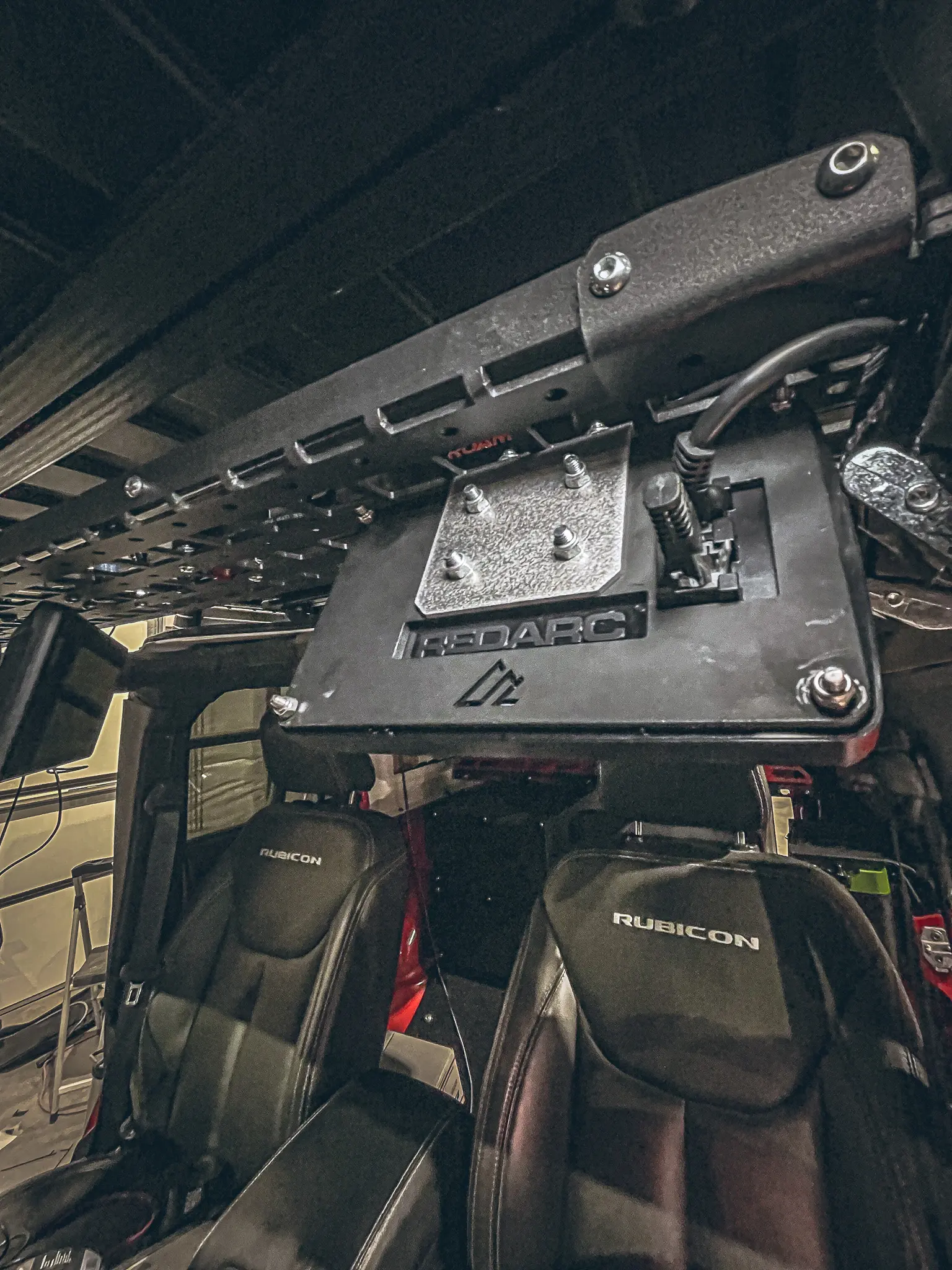

3. Using the provided M6 button head bolts (install the nuts on top of the shelf and button head bolts inserted from below), attach the assembly to your Overhead MOLLE Shelf.
