Note: Product photos may contain optional components.
JK Lower Splash Guard – Modular Front Bumper
Price range: $58.46 through $76.46
Jeep JK/JKU lower splash guard for the AAL Modular Front Bumper. Built from 3mm 5052 aluminum with no-cutout and LASFIT 22-inch light-bar options.
As part of our Veterans Day Sale, this product is currently 10% off. You will save $6.49 to $8.49. Click the sale banner above to view all products included in this sale.
Selected configuration
Choose options to see current availability
Choose options to see ready stock and in-production counts. We manufacture in-house, so counts change throughout the day.
Choose one installer for your entire order. Your selection follows you between products and is confirmed at checkout.
This Jeep JK/JKU lower splash guard closes the open area beneath the AAL Modular Front Bumper, helping shield the sway bar, steering gear, and nearby components from road debris, dirt, and water.
It is precision-cut from 3mm 5052 aluminum, then formed to bolt directly to the bumper without drilling. The result is a cleaner lower edge with useful coverage, without hanging a heavy steel plate at the front of the Jeep.
- Vehicle: Jeep Wrangler JK and JKU
- Bumper: AAL Jeep Wrangler JK Modular Front Bumper only
- Install: Bolts directly to the bumper; no drilling required
- Finish: Raw/unfinished or textured black
This is a bumper-specific part, not an OEM replacement splash shield or a universal underbody panel. If you need the complete bumper system, choose the Jeep Wrangler JK Modular Front Bumper Package.
Choose Your Light Cutout
The splash guard is available with or without the lower light opening. Pick the version that matches the bumper setup you are actually building.
No Light Cutout
Choose this version for a closed lower panel when you do not plan to mount a light bar in the splash guard.
LASFIT 22-Inch Cutout
Adds the tested opening and upper mounting flange for the confirmed LASFIT 22-inch amber spot/flood combo light bar.
Light-bar clearance matters. Space behind the splash guard is limited. The LASFIT 22-inch bar linked below is the fit we have tested. We cannot confirm another light bar without having that exact light in hand, so compare its housing, brackets, and wiring clearance before ordering.
Confirmed Light-Bar Fit
The tested LASFIT bar mounts to the upper flange in the light-cutout version. As we physically verify other light bars, we will add them to this page.
Why 5052 Aluminum
The guard is built from 3mm 5052 aluminum to keep the part light and naturally corrosion resistant. It is enough material for a formed splash panel without adding the weight of another steel bumper component.
Install Notes
The lower splash guard bolts to the AAL JK Modular Front Bumper with no drilling required. If you select the light-cutout version, mock up the light bar and wiring before final tightening so you can confirm housing, bracket, and harness clearance behind the panel.
Common Questions
Will this fit a factory Jeep JK bumper?
No. This lower splash guard is designed specifically for the AAL Jeep Wrangler JK Modular Front Bumper.
Does it fit both the JK and JKU?
Yes. It fits Jeep Wrangler JK and JKU applications equipped with the AAL JK Modular Front Bumper.
Is this an engine skid plate?
No. It is a formed aluminum splash guard for the lower bumper area. It helps block debris, dirt, and water from components behind the bumper, but it is not sold as a load-rated skid plate.
Will a different 22-inch light bar fit?
Do not assume that every nominal 22-inch light bar uses the same housing, brackets, or mounting depth. The LASFIT bar listed above is the confirmed fit. Check all dimensions and wiring clearance before using another light.
Specs
- Product: JK/JKU Modular Front Bumper Lower Splash Guard
- Compatibility: AAL Jeep Wrangler JK Modular Front Bumper
- Material: 3mm 5052 aluminum
- Finish options: Raw/unfinished or textured black
- Light options: No cutout or LASFIT 22-inch cutout
- Install: Bolt-on, no drilling required
- Parent SKU: JK-1267X
- Manufacturing: Made in the USA

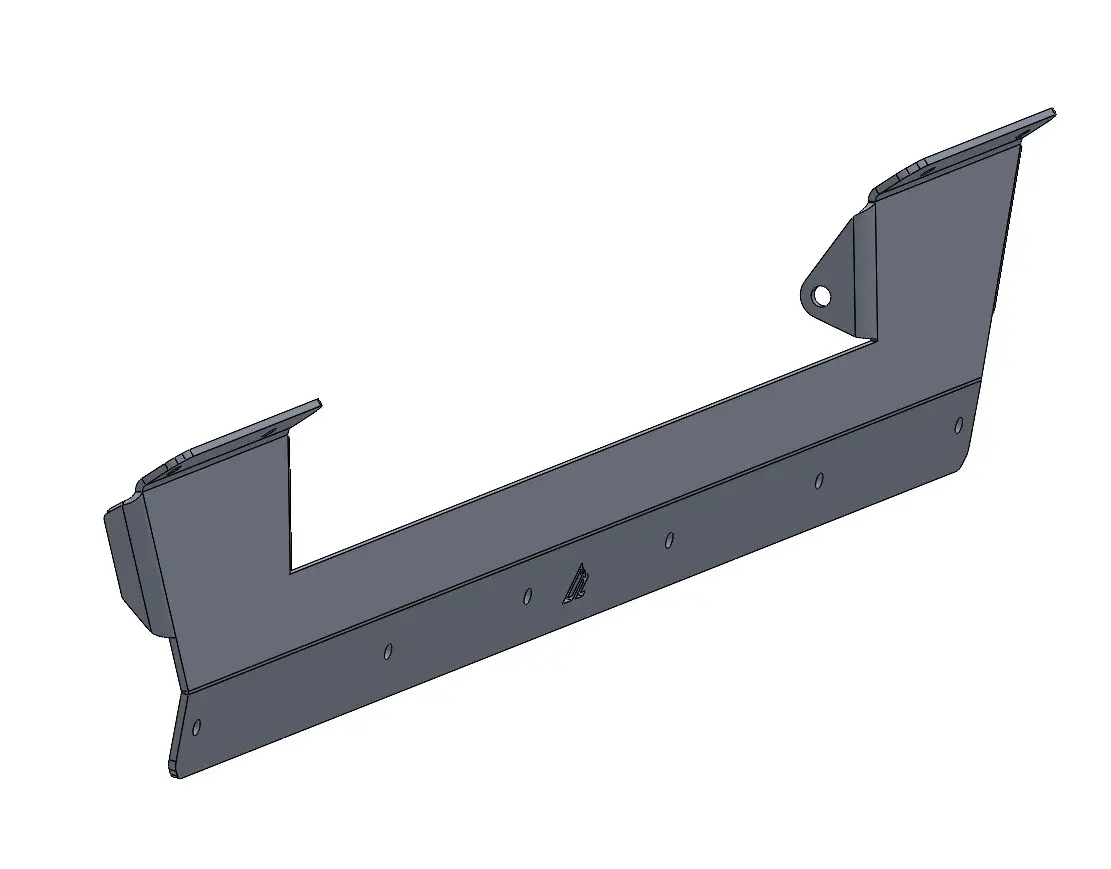

Precision CAD Design
We built the lower splash guard from OEM CAD data so its bends, mounting points, and bumper interface are defined around the Jeep JK platform and our modular bumper system.
