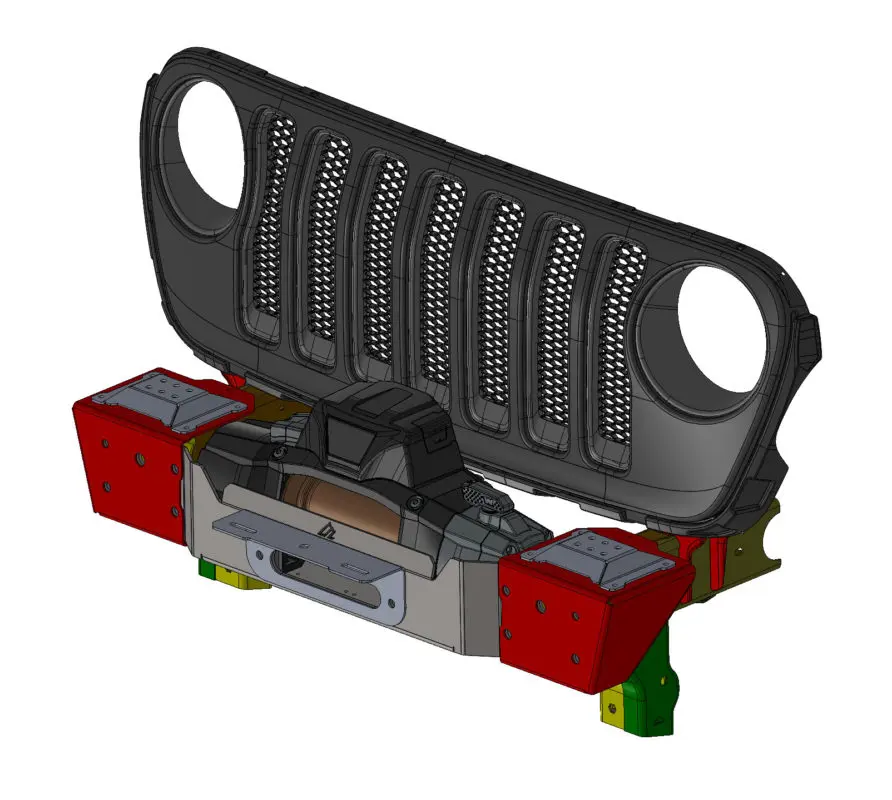

Standard fairlead light mount.

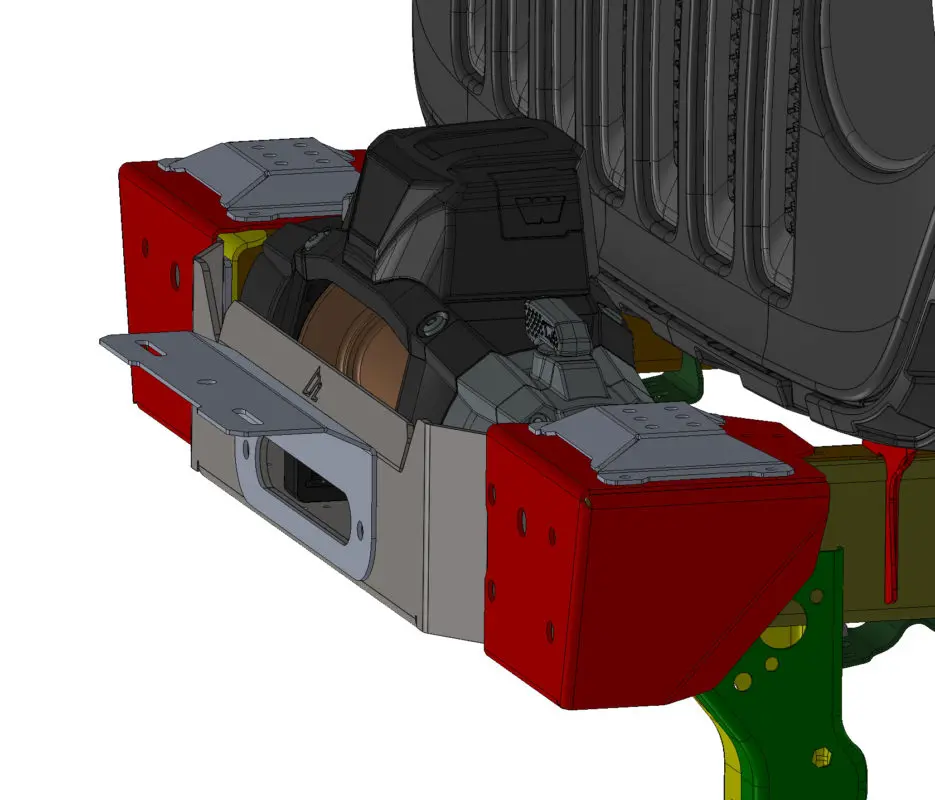

Extended-reach fairlead light mount.
Note: Product photos may contain optional components.
Jeep Wrangler JL/JT Modular Front Bumper Package
From: Original price was: $300.00.$270.00Current price is: $270.00.
Lightweight, modular front bumper for Jeep Wrangler JL and Gladiator JT. Fits the WARN ZEON 10-S envelope and confirmed with the BADLAND APEX 12,000 winch. Just under 28 lb. before the winch and accessories.
As part of our Veterans Day Sale, this product is currently 9% to 10% off. You will save $30.00 to $78.98. Click the sale banner above to view all products included in this sale.
Selected configuration
Choose options to see current availability
-
Ready to ship
-
In production
Choose options to see ready stock and in-production counts. We manufacture in-house, so counts change throughout the day.
AAL Installer NetworkFind an Authorized Installer
Selected
Choose one installer for your entire order. Your selection follows you between products and is confirmed at checkout.

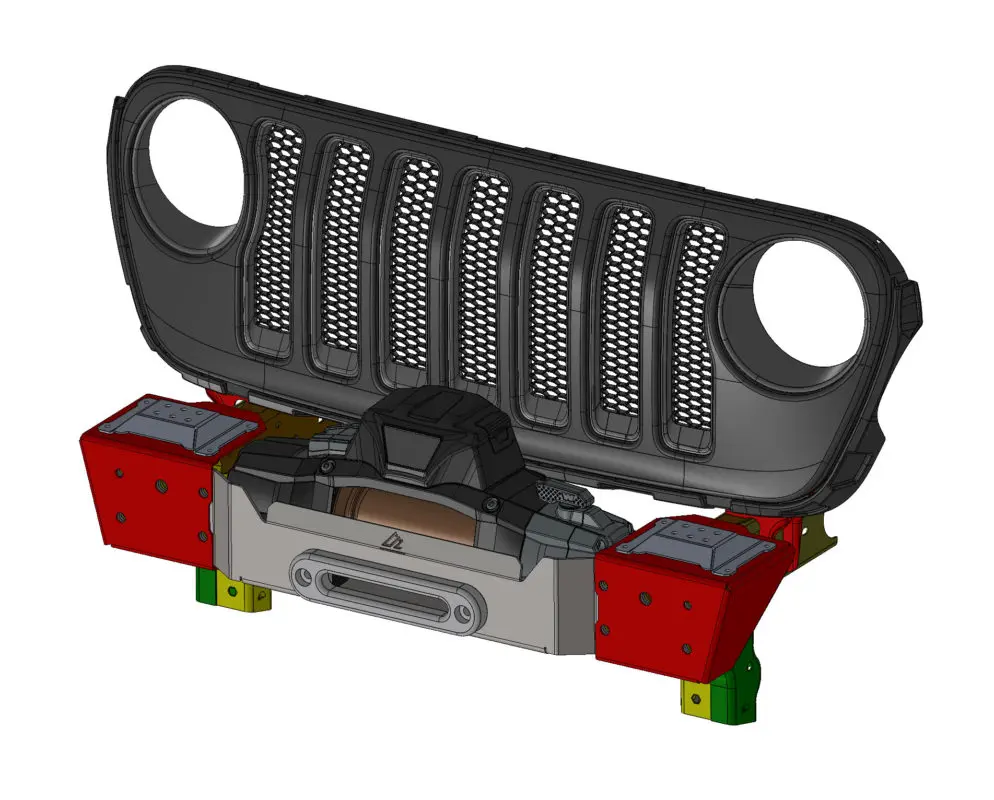

Jeep Wrangler JL And Gladiator JT Front Bumper

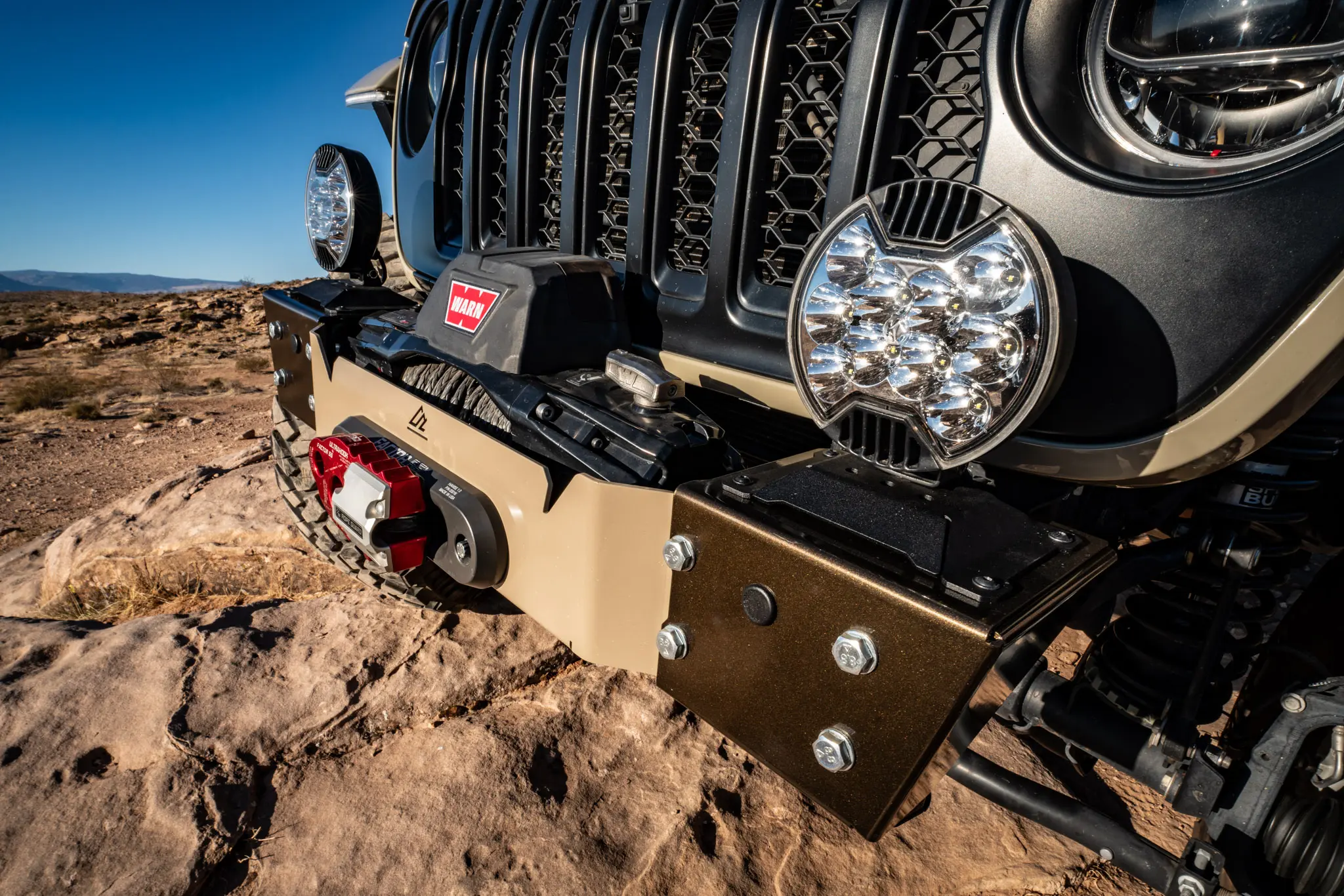

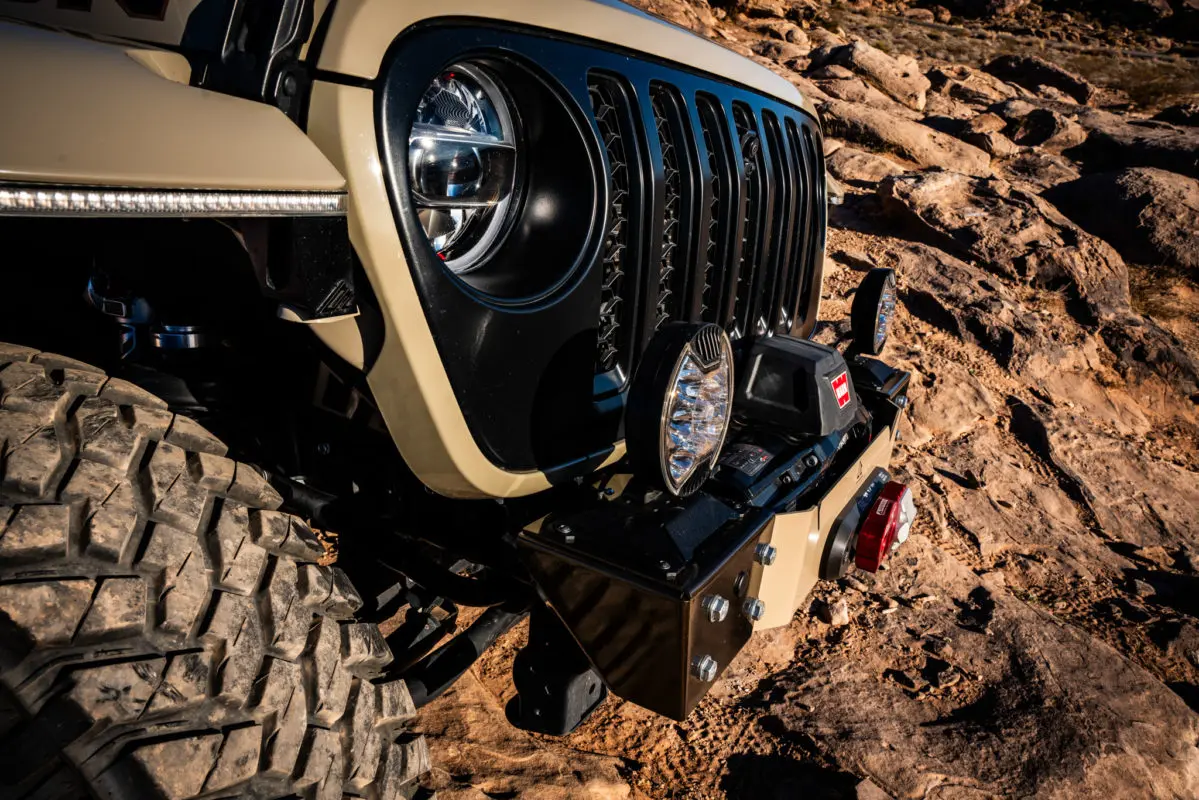

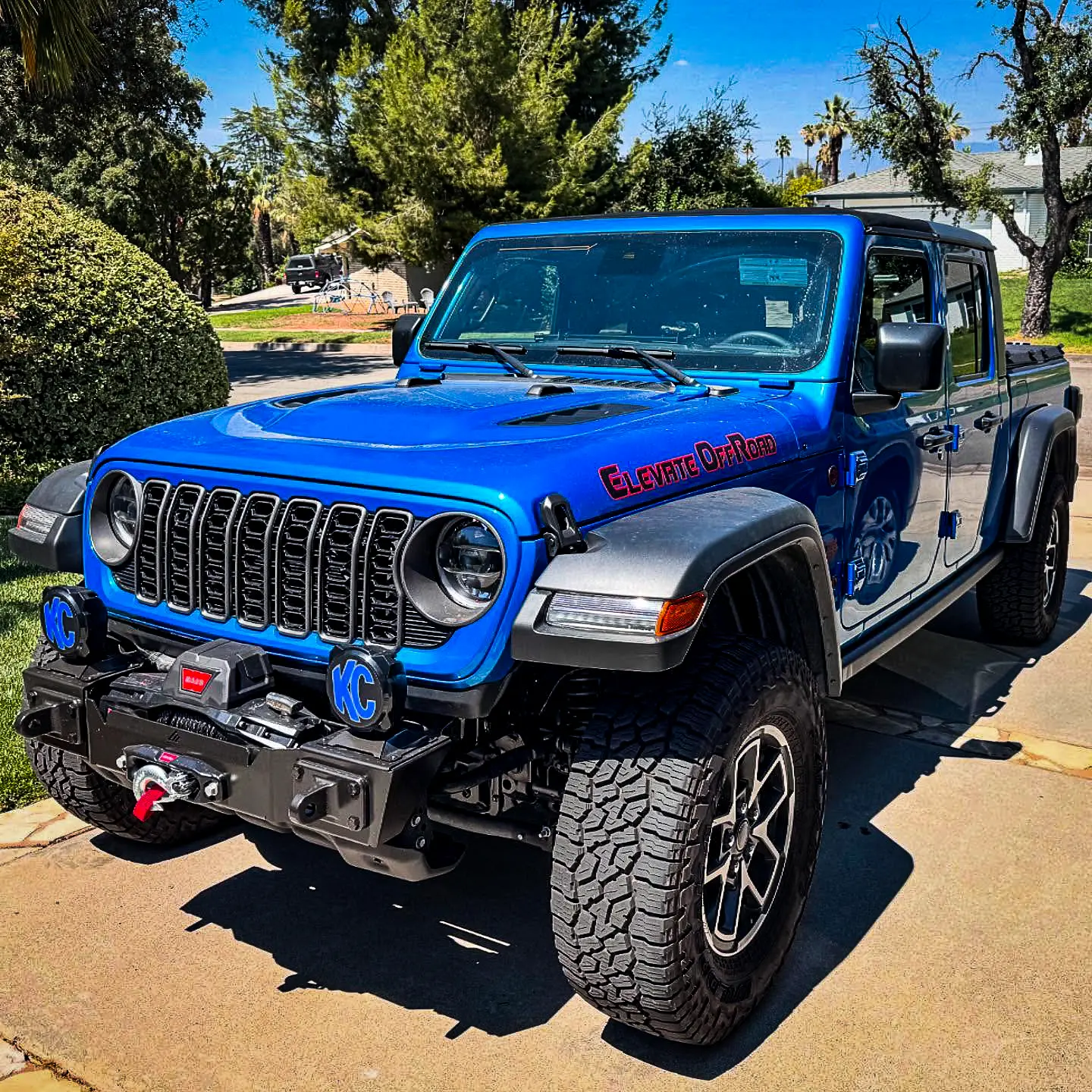

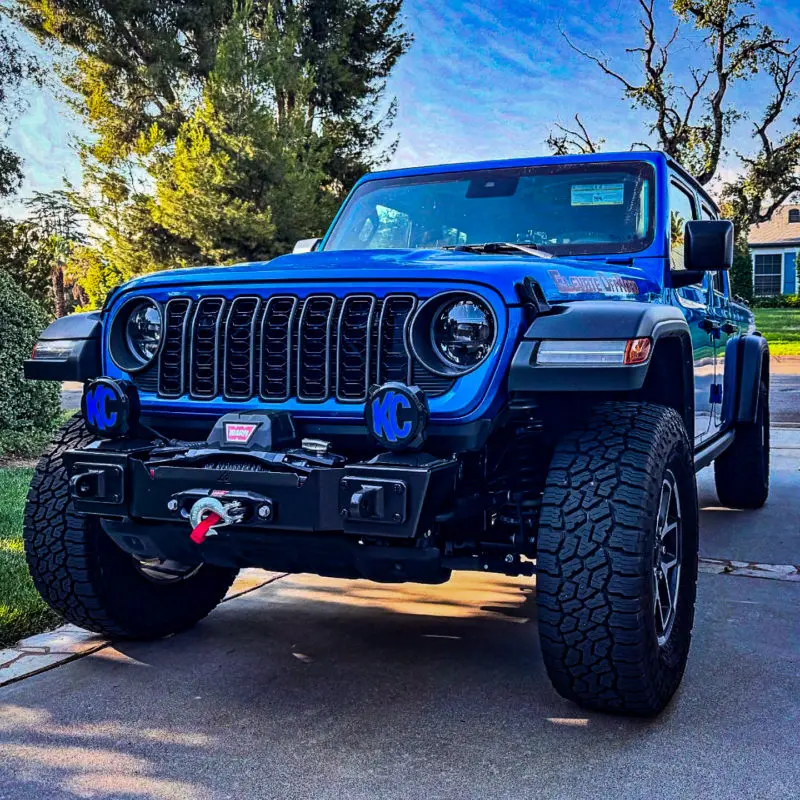

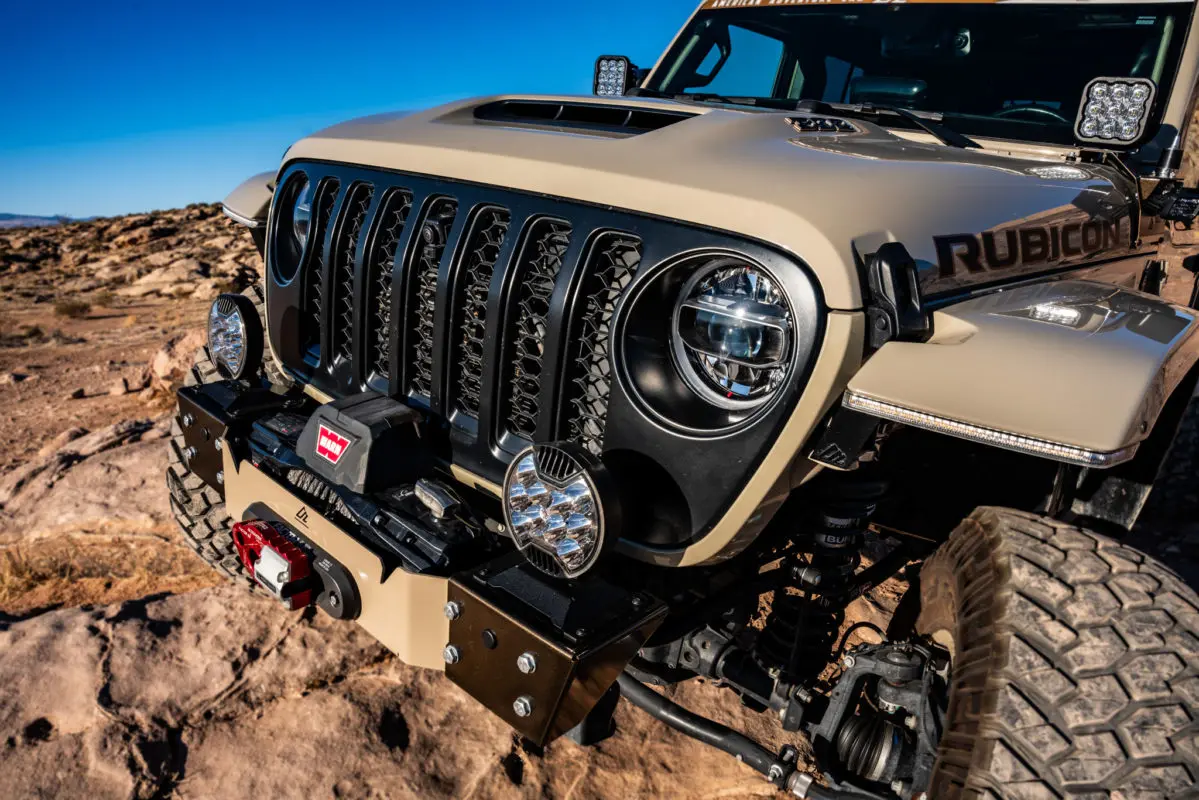

Put a full-size recovery winch on your JL or JT without hanging a bulky bumper off the front of the Jeep. Our modular front bumper combines a 3/16-inch steel winch plate with replaceable aluminum end caps, keeping the complete bumper under 28 pounds while leaving room for proven 10,000 and 12,000-pound winches.
Vehicle Fitment
Jeep Wrangler JL and Jeep Gladiator JT.
Winch Pattern
Standard 10 Ć 4.5-inch, four-bolt truck-winch pattern.
Complete Weight
Just under 28 pounds with the winch mount and Alpha end caps.
Winch Fitment
The bumper was packaged around the WARN ZEON 10-S envelope. A winch with the standard 10 Ć 4.5-inch mounting pattern still needs to fit within that physical envelope, so bolt pattern alone is not enough. The models below meet both checks.
| Winch | Published Size (L Ć D Ć H) | Mounting Pattern | Fitment Status |
|---|---|---|---|
| WARN ZEON 10-S | 24.25 Ć 7.14 Ć 10.52 in. | 10 Ć 4.5 in. | Design Envelope Original fitment benchmark. |
| WARN ZEON XD 10-S | 23.9 Ć 7.1 Ć 10.5 in. | 10 Ć 4.5 in. | Fits Within the ZEON 10-S envelope. |
| WARN ZEON XP 10-S | 23.9 Ć 7.1 Ć 10.5 in. | 10 Ć 4.5 in. | Fits Within the ZEON 10-S envelope. |
| WARN VR EVO 10-S | 21 Ć 7.1 Ć 10.1 in. | 10 Ć 4.5 in. | Fits Within the ZEON 10-S envelope. |
| BADLAND APEX 12,000 lb., Synthetic Rope (Item 56385) | 23.2 Ć 6.67 Ć 9.96 in. | 10 Ć 4.5 in. | Confirmed Installed Shown below in the AAL bumper. |
Dimensions are manufacturer-published overall dimensions. Winch designs can change. If your exact model or part number is not listed, compare its overall dimensions and mounting pattern before ordering. Contact us if the clutch, control pack, or electrical connections extend beyond the published housing dimensions.
Confirmed Badland Fitment

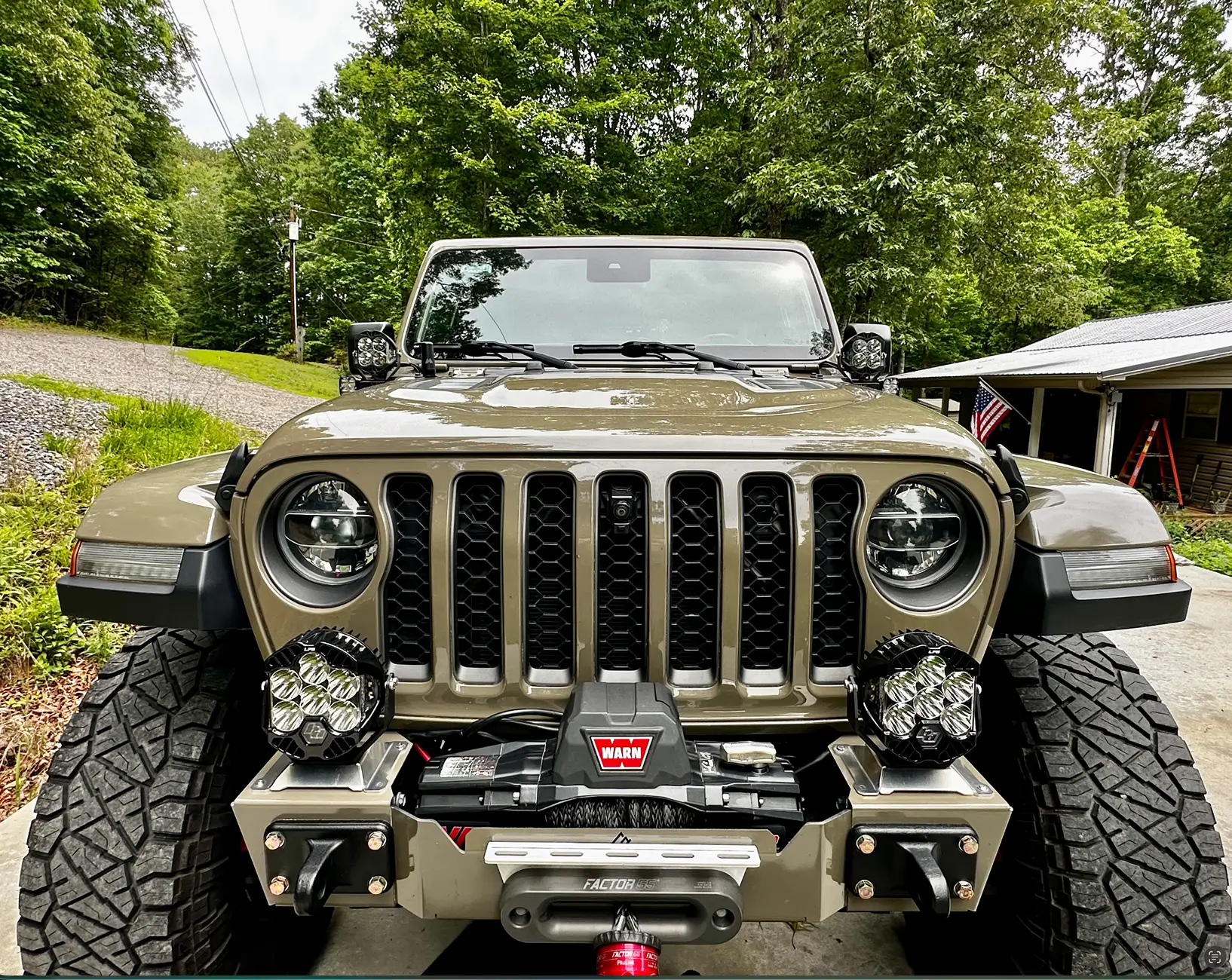

BADLAND APEX 12,000 Fits
The synthetic-rope BADLAND APEX 12,000 fits with its control pack installed on top, as shown. The winch uses the standard 10 Ć 4.5-inch mounting pattern and sits within the bumper’s ZEON-sized envelope.
Why the Modular Design Works

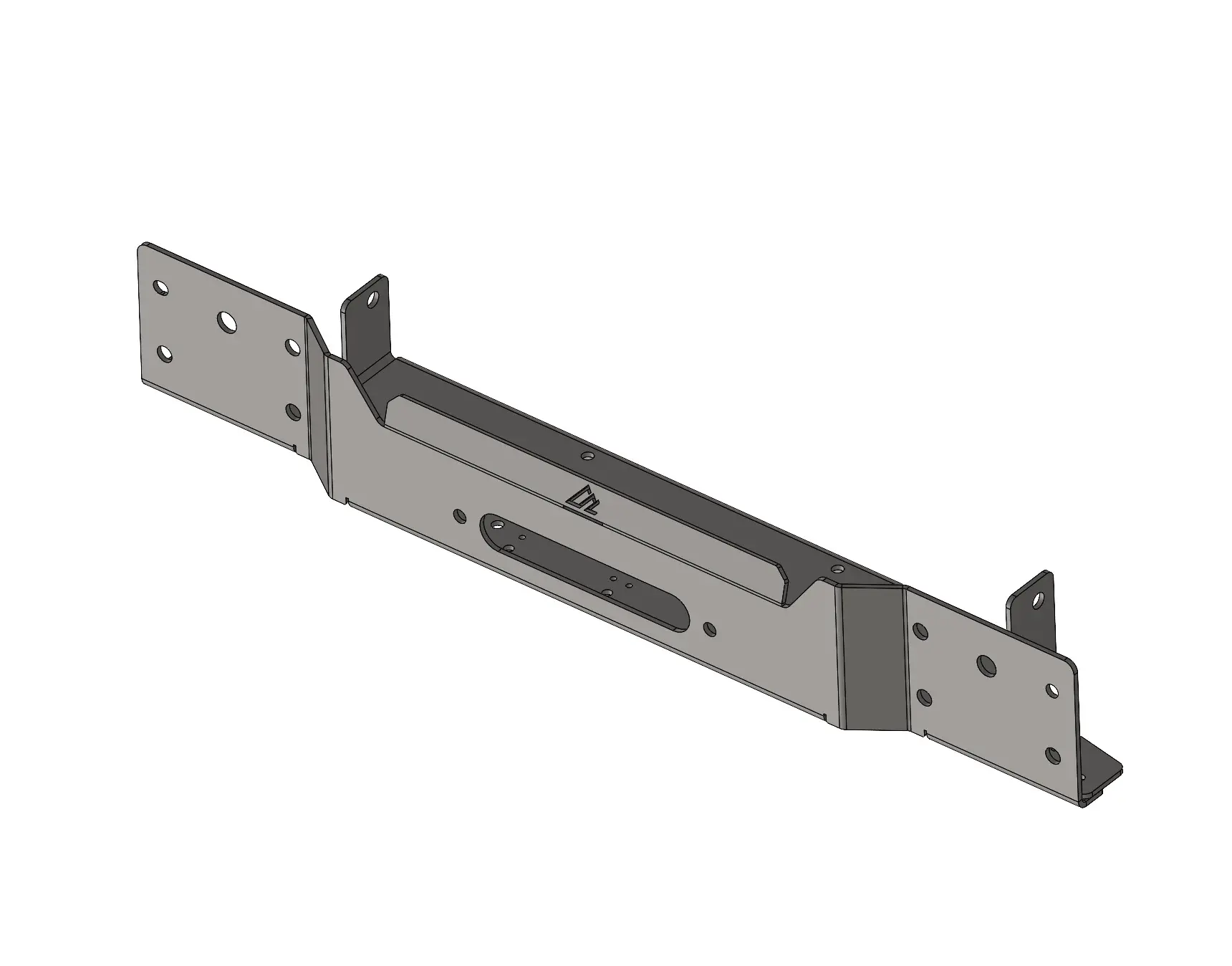

The two-piece main winch plate is cut from 3/16-inch (4.7 mm) steel. The current Alpha end caps are 1/8-inch (3 mm) 5052 aluminum. That mixed-material construction keeps steel where the winch load enters the bumper and saves weight at the outer corners.
No welding or finish grinding is required in the bumper’s construction. Sharing the front mount across our JL, JT, and JK bumper systems also lets us run common components and keep the system affordable.
Built in the USA: We design and manufacture the bumper components in-house using OEM vehicle CAD data. The result is a bolt-on, vehicle-specific system instead of a universal plate adapted after the fact.
Compare the platforms, end caps, and accessories in our Modular Front Bumper overview.
Choose the Pieces Your Jeep Needs
- Alpha end caps: Lightweight, replaceable 5052 aluminum outer sections.
- Shackle mounts: Add D-ring recovery points to the bumper.
- Pod-light brackets: Optional aluminum mounts with main-bumper mounting hardware included.

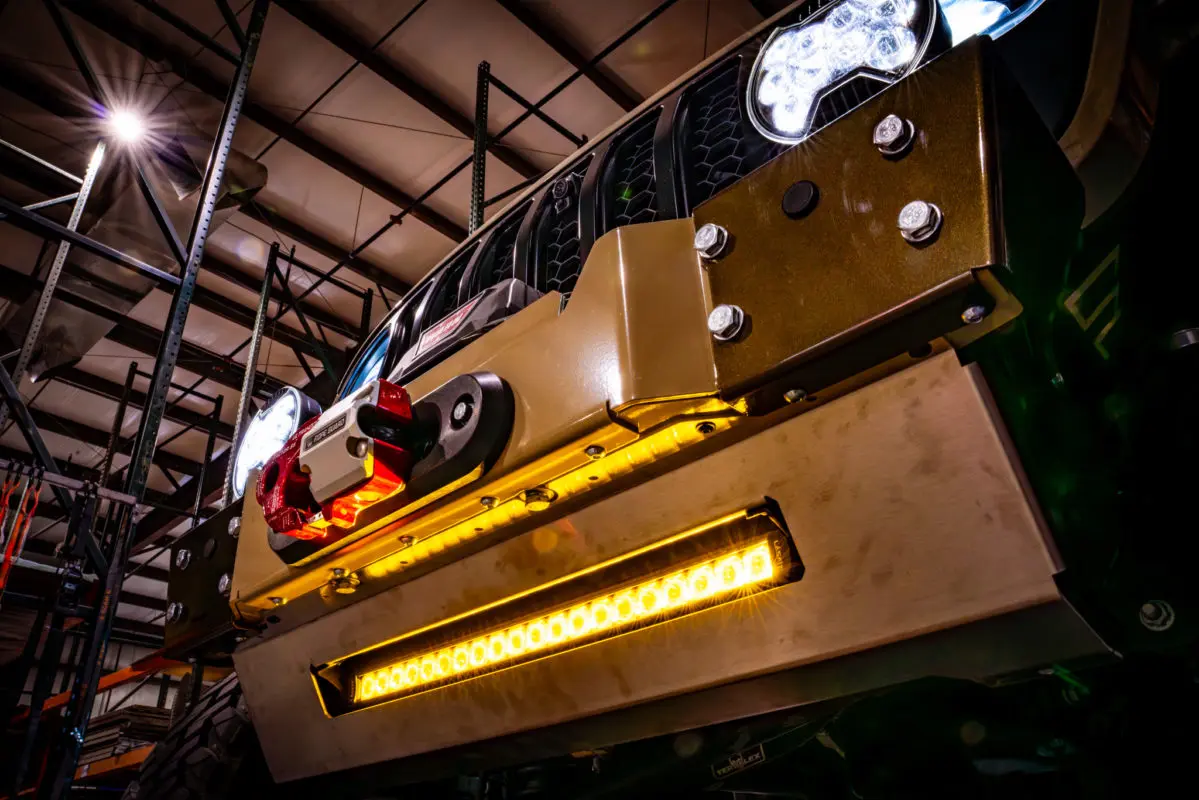

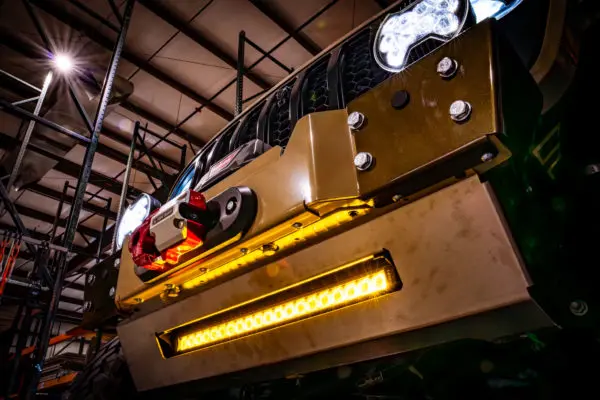

- Lower splash guard: Uses OEM CAD data for close fitment and can support a lower LED light bar.
- Fairlead light mount: Supports two pod lights or a compact light bar.
- Replaceable modules: End caps can be changed without removing the bumper or winch.
Fairlead Light Mount Dimensions
The optional 5052 aluminum fairlead light mount weighs 0.63 pounds and is available in two depths.
- Light-slot centers: 8.5 inches (215.9 mm)
- Slot length: 1.575 inches (40 mm)
- Standard depth, slot center to mounting surface: 2 inches (53 mm)
- Extended-reach depth: 3 inches (75 mm)
- Center antenna hole: 0.5 inch (13 mm)

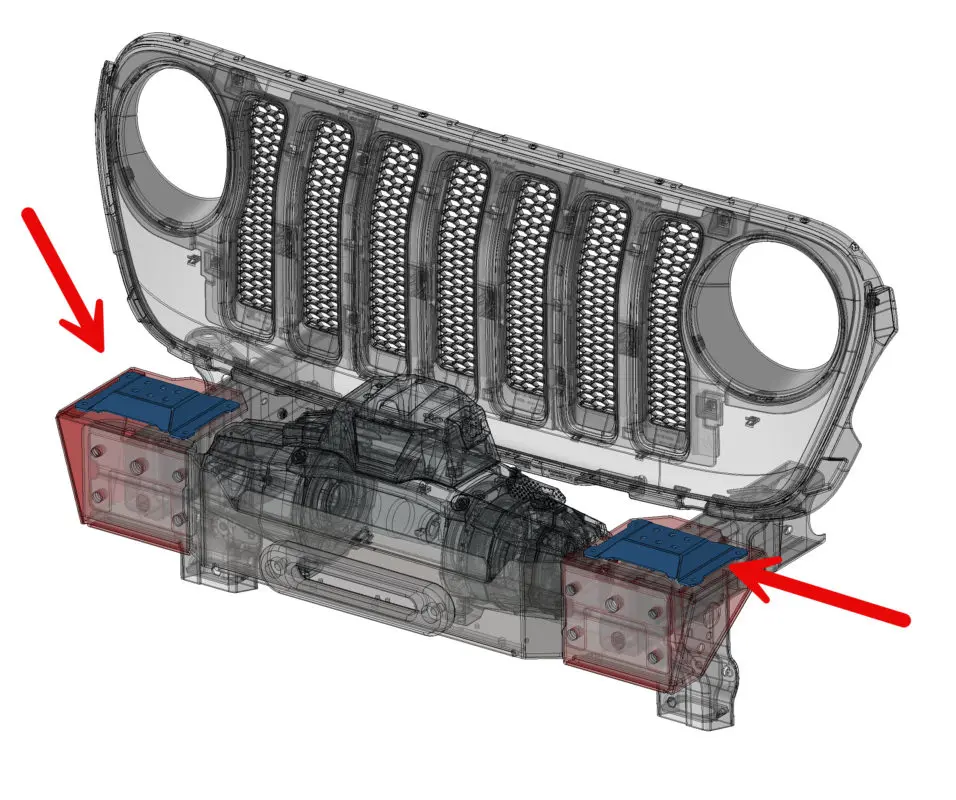

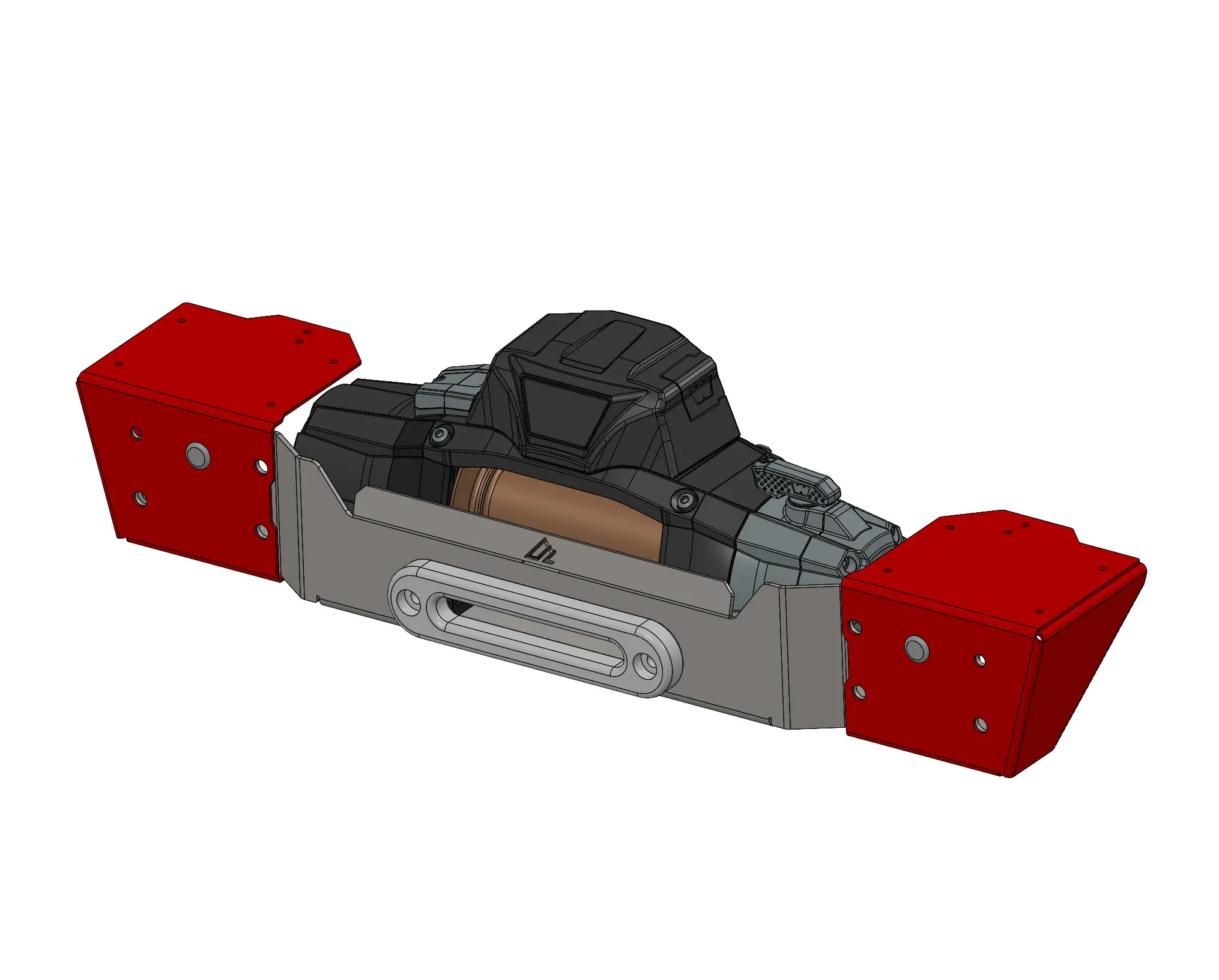

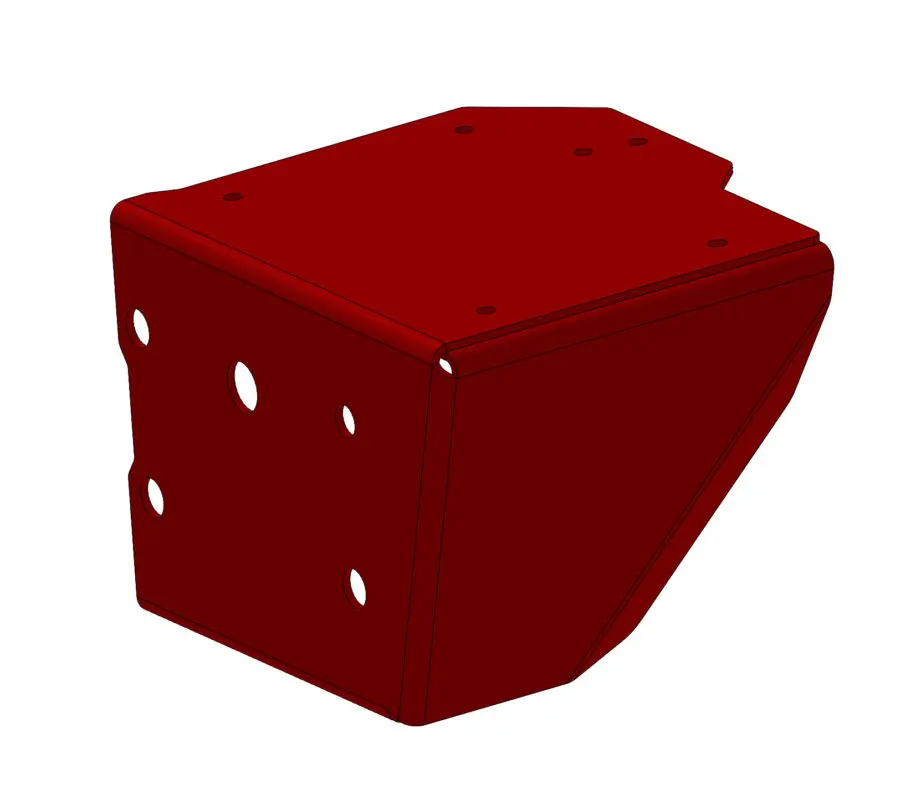

Alpha End Caps
The Alpha is our compact end-cap design. It keeps the bumper tight to the Jeep and can be removed or replaced without pulling the winch or main bumper structure.
See It in Action
Follow Us on InstagramPhoto Gallery
Frequently Asked Questions
Will It Fit a WARN 10K Winch?
Yes, for the WARN ZEON 10-S, ZEON XD 10-S, ZEON XP 10-S, and VR EVO 10-S. Each uses the standard 10 Ć 4.5-inch bolt pattern and fits within the original ZEON 10-S design envelope. If you have another WARN 10,000-pound model, compare its complete length, depth, height, clutch access, and control-pack location before ordering.
Will It Fit the Harbor Freight BADLAND APEX 12,000 Winch?
Yes. The synthetic-rope BADLAND APEX 12,000 fits the AAL JL/JT Modular Front Bumper with its control pack installed on top. The installed photo above shows the exact combination.
What Does the Bumper Weigh?
The steel winch mount and Alpha aluminum end caps together weigh just under 28 pounds, before adding the winch or optional accessories.
Can I Order Custom Powder Coat?
Yes. Custom colors add lead time because they require separate shop routing, handling, and packaging. See our powder-coat information before choosing a custom finish.
Is There a Version for the Jeep Wrangler JK?
Yes. The Jeep Wrangler JK Modular Front Bumper Package shares several components with this system.
