10″ Storage Drawer – 48×20

Stay Organized, Adventure Better: The 10-Inch Storage Drawer

Say goodbye to the chaos of loose gear rattling around your SUV or pickup truck! The 10-Inch Storage Drawer from American Adventure Lab is your ultimate solution for keeping your essentials neatly stowed and easily accessible, whether you’re conquering trails, heading to work, or embarking on a weekend getaway.

Why You’ll Love It:

• Smart Organization: With a spacious yet compact design, this drawer keeps your tools, recovery gear, camping supplies, or everyday essentials right where you need them.
• Built Tough: Crafted with durability in mind, this storage solution is made to withstand the bumps, jolts, and rugged adventures of offroad life.
• Sleek Design: Its low-profile 10-inch height fits seamlessly into your vehicle, maximizing storage without sacrificing space for larger cargo.
• Smooth Accessibility: Featuring high-quality glides, the drawer opens effortlessly so you can grab what you need in seconds. No digging, no searching—just adventure-ready convenience.
• Versatile Fit: Perfect for larger SUVs and pickup trucks, this drawer adapts to your lifestyle, whether you’re overlanding, camping, or just staying organized on the road.

Adventure Ready

From road trips to remote trails, the 10-Inch Storage Drawer keeps you prepared for whatever lies ahead. Organize your gear, streamline your packing, and focus on the journey, not the clutter.

Important Powder Coating Note

Powder coating is a manual process done by humans and may take some time. When you purchase powder coated products from AAL, we coat them for your order. Occasionally, that means delays with non-standard colors, resprays for less-than-perfect conditions, etc. We have a very high standard with powder coated products. We will work to get your parts coated in the best condition possible before they leave the building.

Please visit our Powder Coating Page for more info.

Specifications

Interior Dimensions:

• Width: 18 5/8″ wide (473mm)
• Depth: 47 1/2″ deep (1206.5mm)
• Height: 9.84″ tall (250mm) – to lowest clearance point

Exterior Dimensions:

• Width: 20 3/4″ (527mm)
• Depth: 49 5/8″ (1260.5mm) – tip of slide handles to back of drawer
• Height: 11″ (250mm)

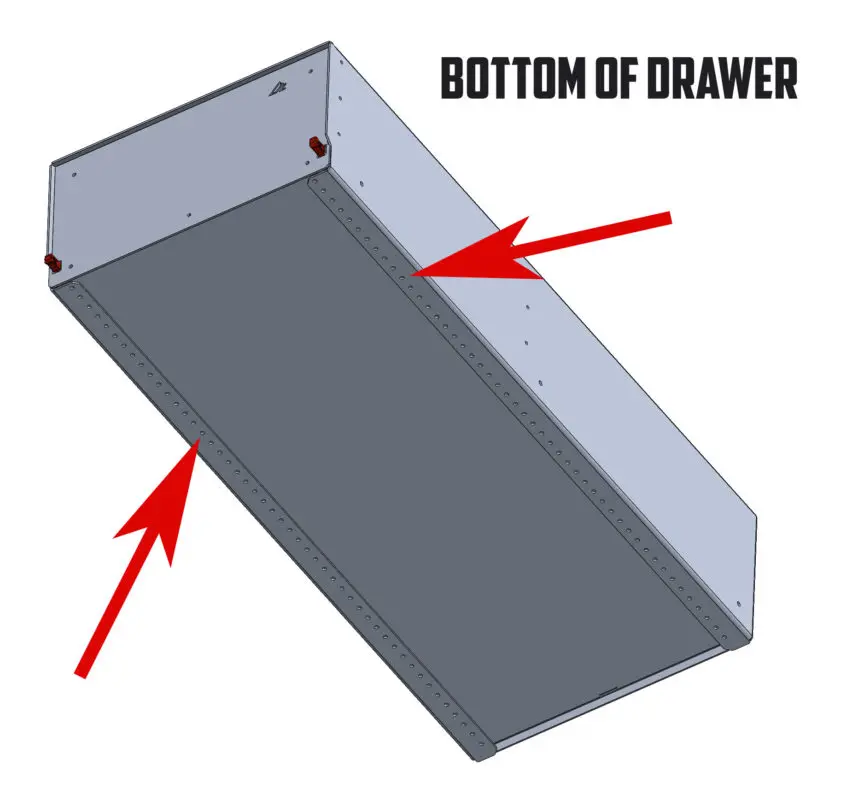

Mounting Dimensions:

• Mounting holes are 7mm (0.28″) in diameter
• Mounting holes are spaced every 1″ (25.4mm)
• Left to right spacing on the mounting holes is 18″ (457.2mm)

Features:

• 1/8″ aluminum construction
• Ships with two steel structural internal braces
• Ships with two removable dividers
• Two lifetime-warranty locking drawer sliders (one on each side)
• Zinc-plated steel hardware and nylon locking fasteners
• Can include key-lock on drawer

NOTE: Does not include mounting hardware

Click to Enlarge

Mounting Options:

• Please note we do recommend our JT BASE (Bed Attachment System Equipment) to install any Jeep JT fridge slide or drawer. It comes with a provided template and steel nut plates that are secured under the bed to mount your JT Bed Storage System.

• If you want to mount in other applications, it may be necessary to drill holes and attach with rivet nuts or bolts and nuts.
