Erick’s JKU, With a Working Cargo Layout

Erick’s gray four-door Jeep Wrangler JK pairs red exterior accents with a cargo arrangement built around a fridge, a stack of drawers, and surfaces that extend beyond the rear opening. The shop photos show the equipment both stowed and open, while exterior views show storage carried around the spare tire and above the roof.

The useful detail is how those spaces work together. The fridge and drawers remain accessible from the rear, and the extended surfaces provide room to set out equipment beside the tailgate.

Questions About This Build?Browse Jeep Wrangler JKU - 4-Door Gear

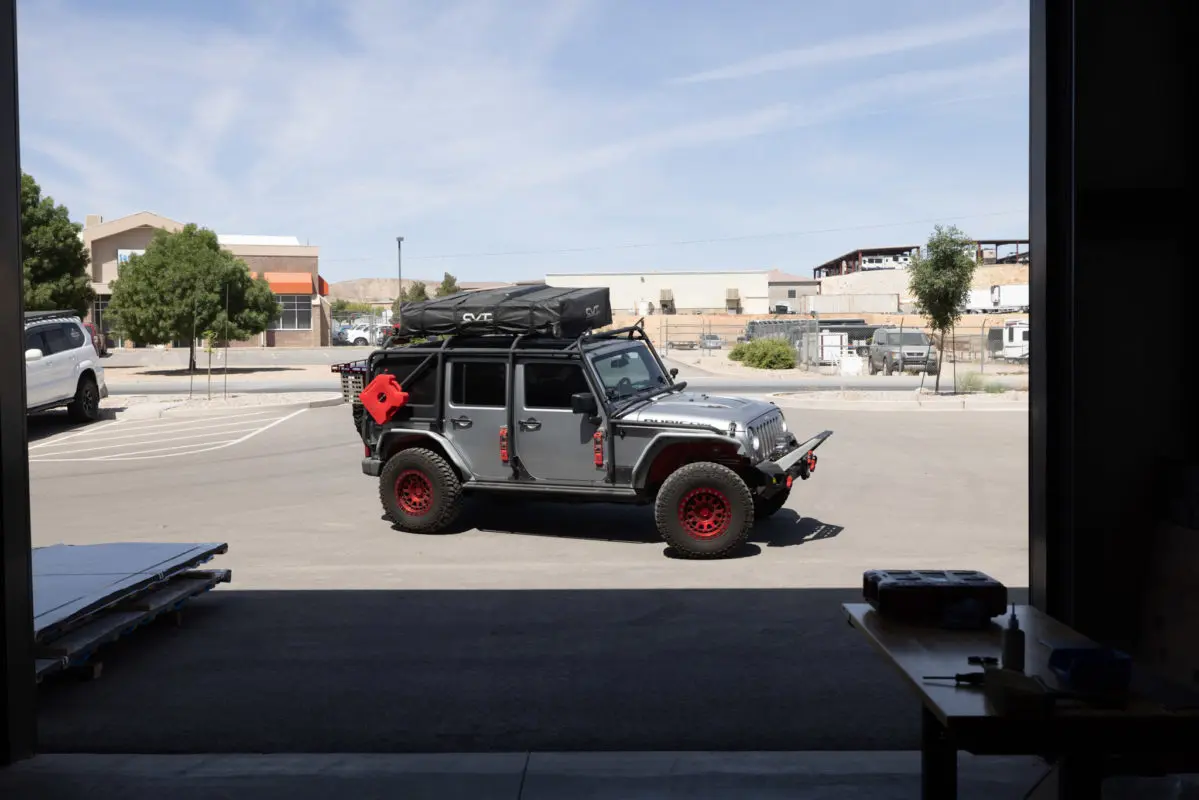

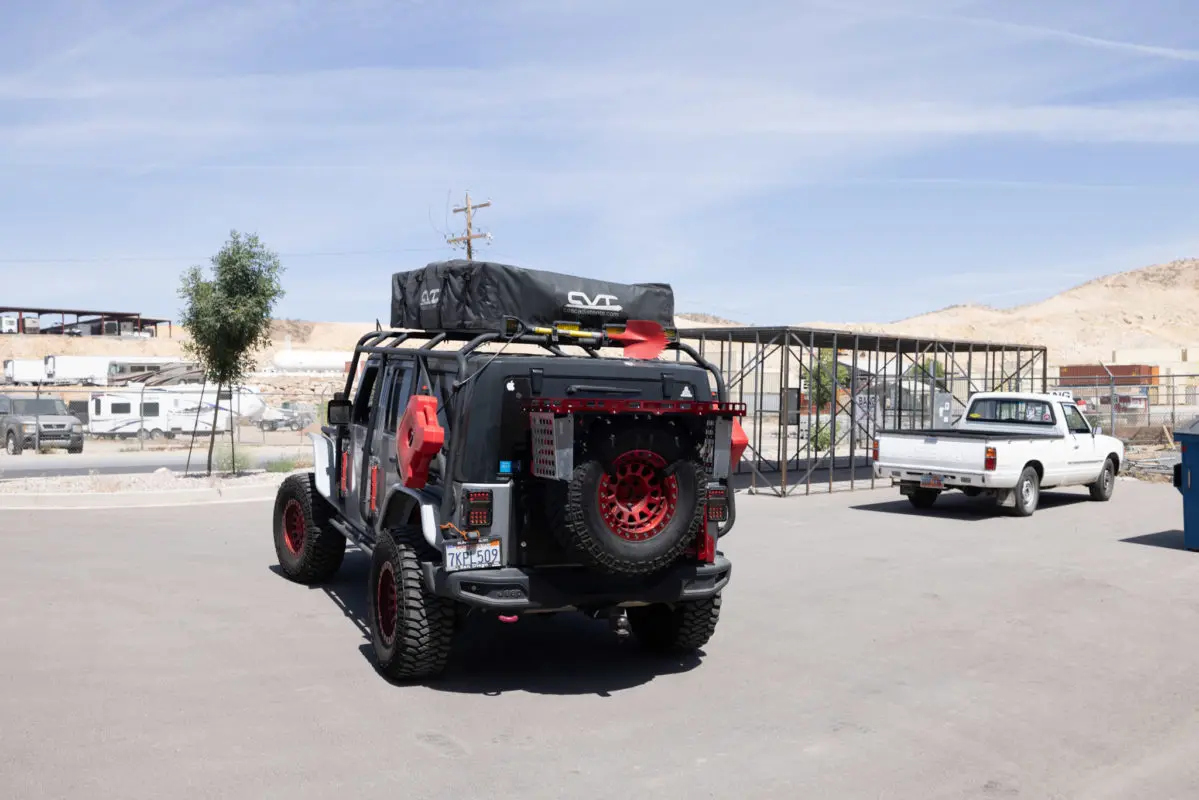

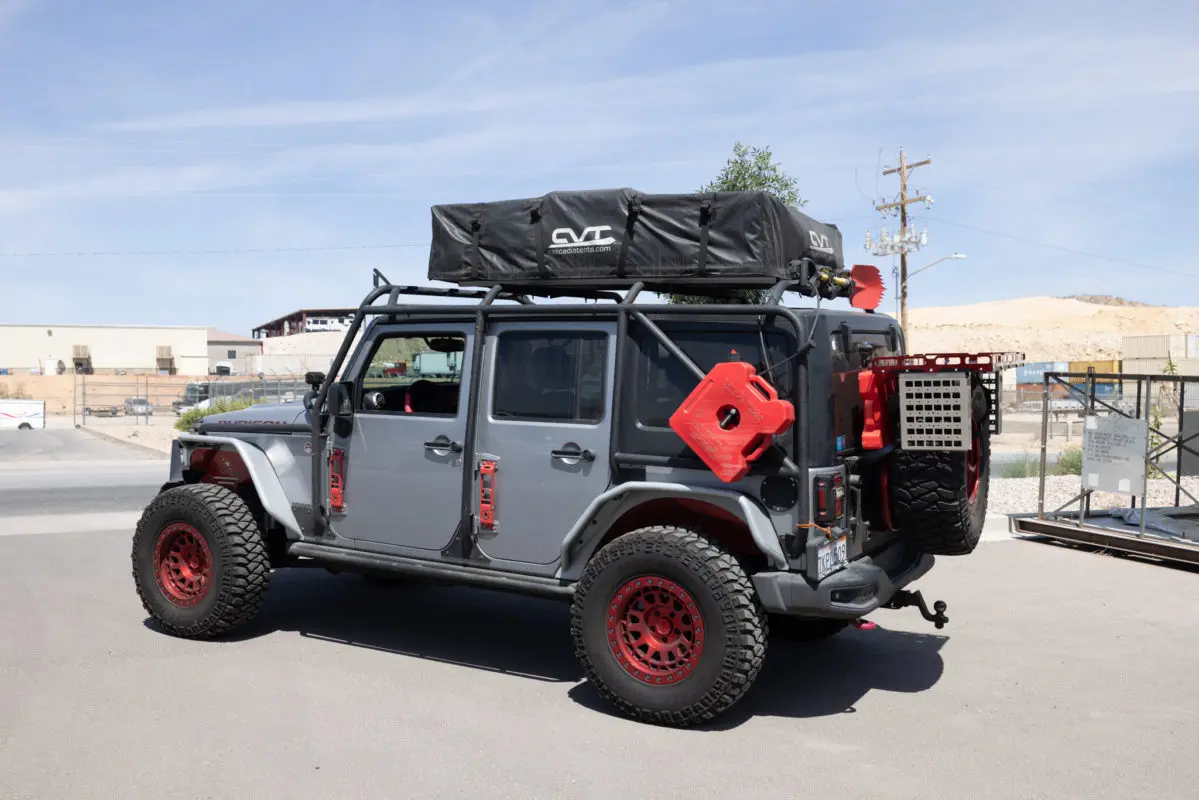

Erick’s gray JKU with red wheels and equipment mounted around the rear spare tire.
Erick’s gray JKU with red wheels and equipment mounted around the rear spare tire.
Photo ArchiveEquipment verification date not recordedPhotos may show different stages. Check current product fitment and included components.

Build at a Glance

Vehicle: Four-door Jeep Wrangler JK, also called a JKU
Rear Cargo: Fridge, stacked drawers, and upper storage
Exterior: Spare-tire storage and roof-carried equipment

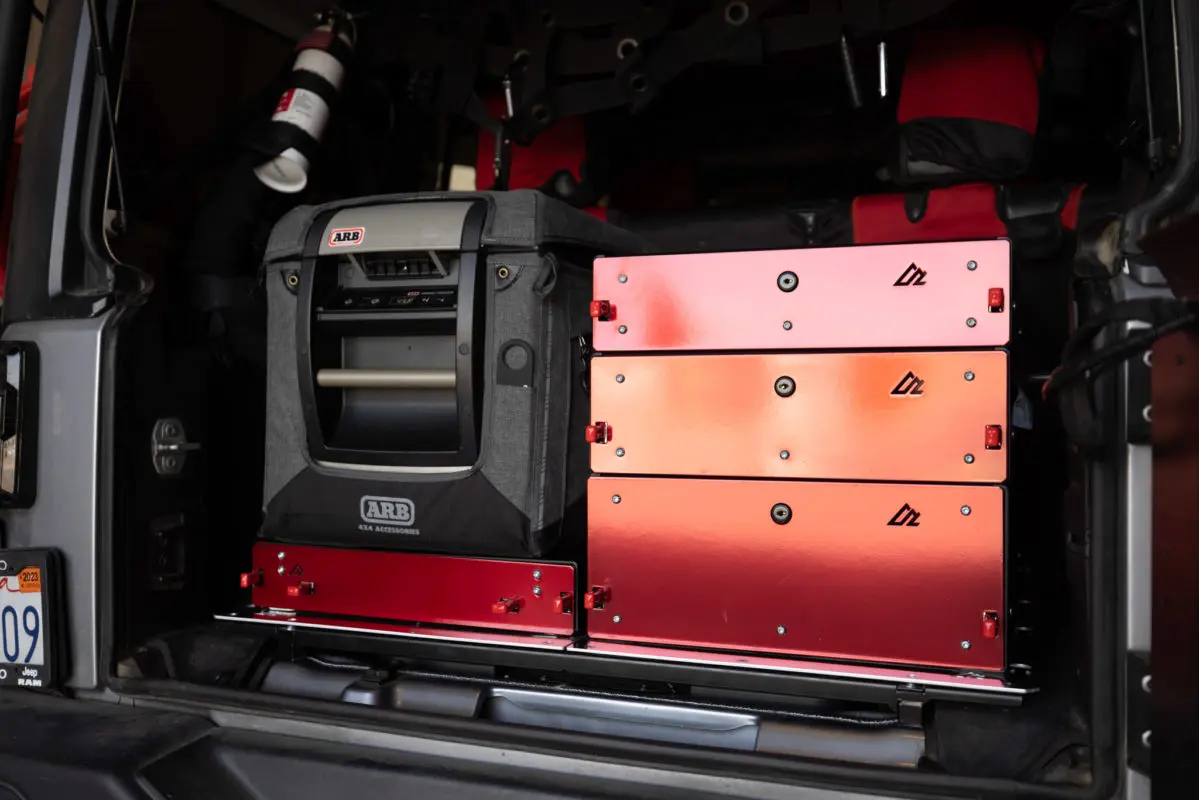

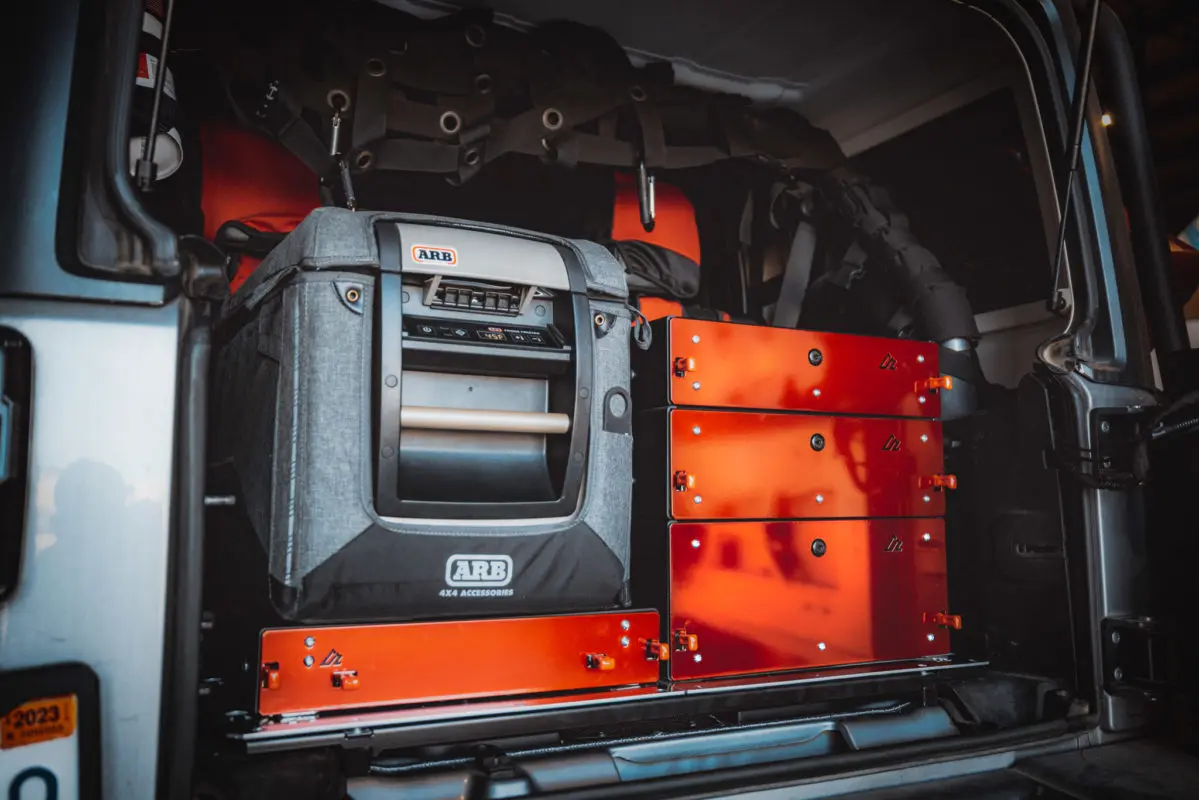

The fridge and three-drawer stack in their stowed positions.
The fridge and three-drawer stack in their stowed positions.

Keep the Fridge and Drawers Accessible

The rear cargo photos show a fridge on the left and a stack of three drawers on the right. Smaller storage sits above the lower modules, making use of the height inside the cargo area.

Compare this arrangement with the equipment you need to reach most often. Measure your fridge including handles, check lid clearance, and allow the ventilation space specified by its manufacturer. The original page does not document the fridge model or drawer dimensions.

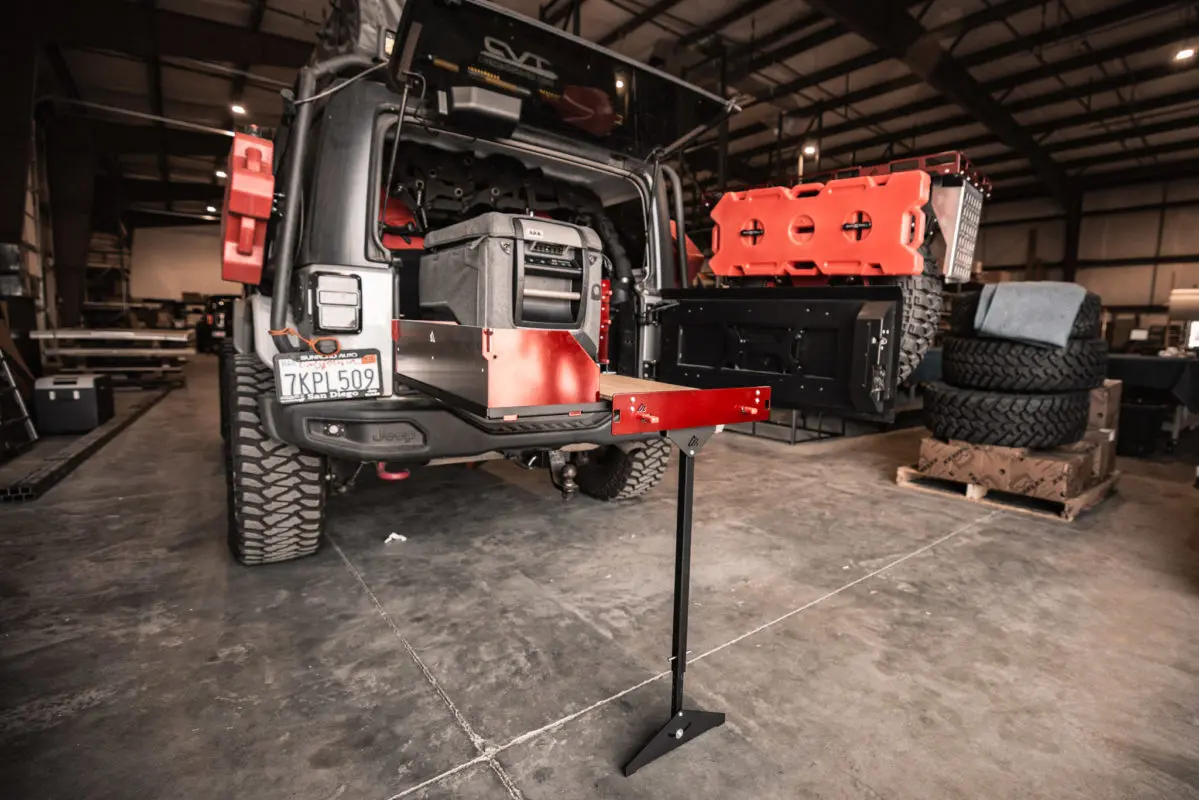

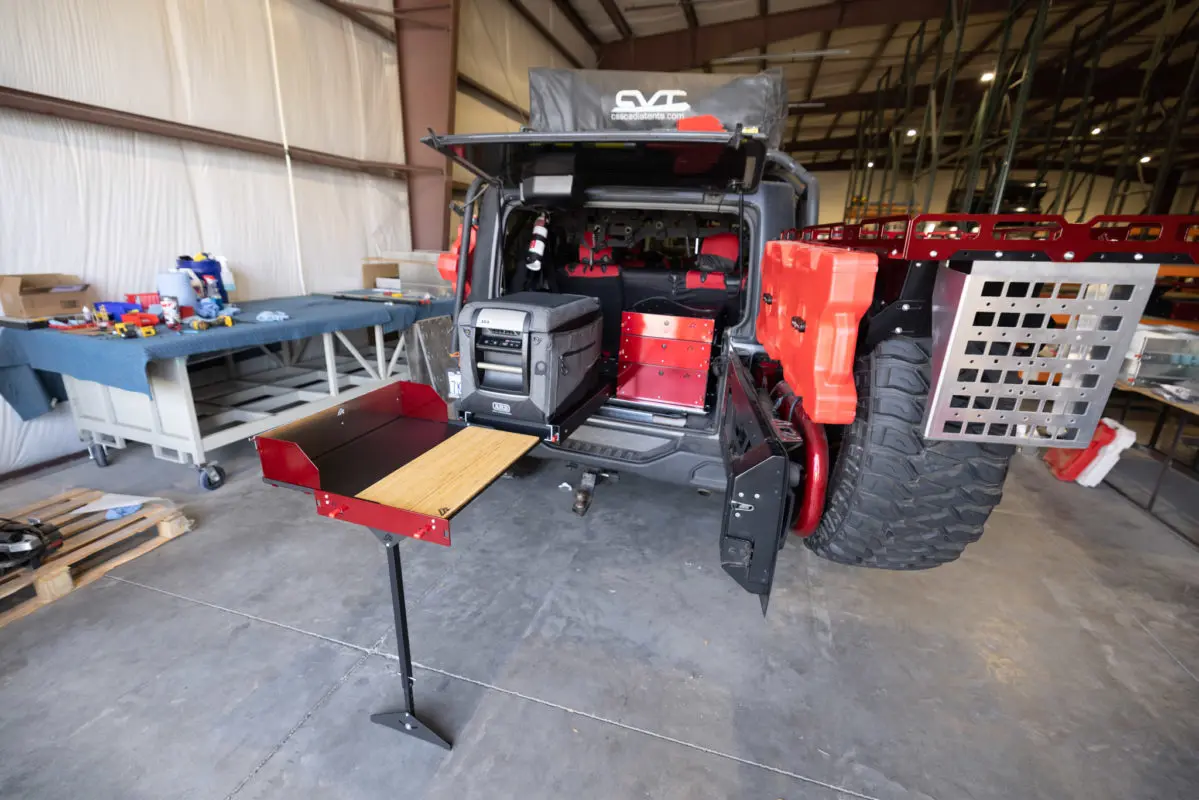

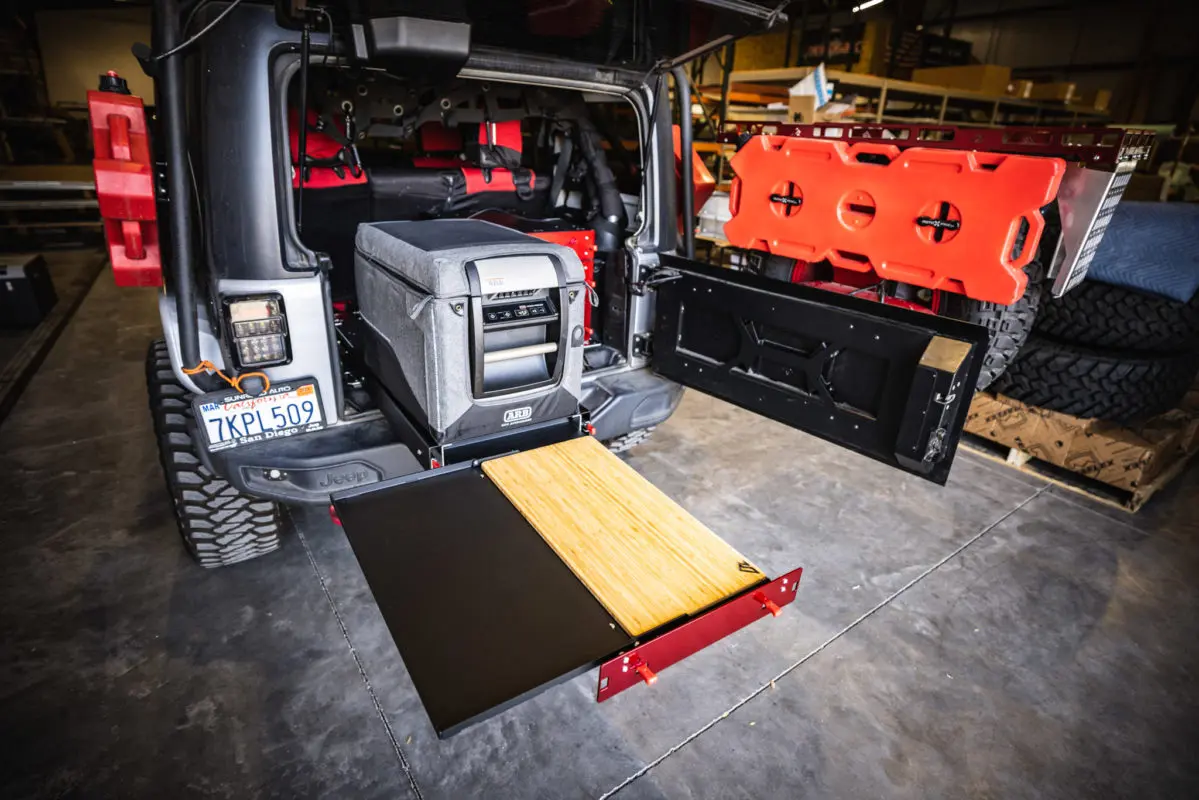

The cargo work surface and tailgate surface opened beside the fridge.
The cargo work surface and tailgate surface opened beside the fridge.

Extend the Work Surfaces at the Rear

The open-layout photos show surfaces extending from the cargo system, including a wood-panel work area. A separate surface folds out from the tailgate, creating another place to set gear beside the fridge and drawers.

Check the whole arrangement in its open position before choosing components. Leave room to stand, reach the fridge, and operate each drawer. The photographs illustrate the layout; confirm the current product versions, mounting requirements, and dimensions with AAL.

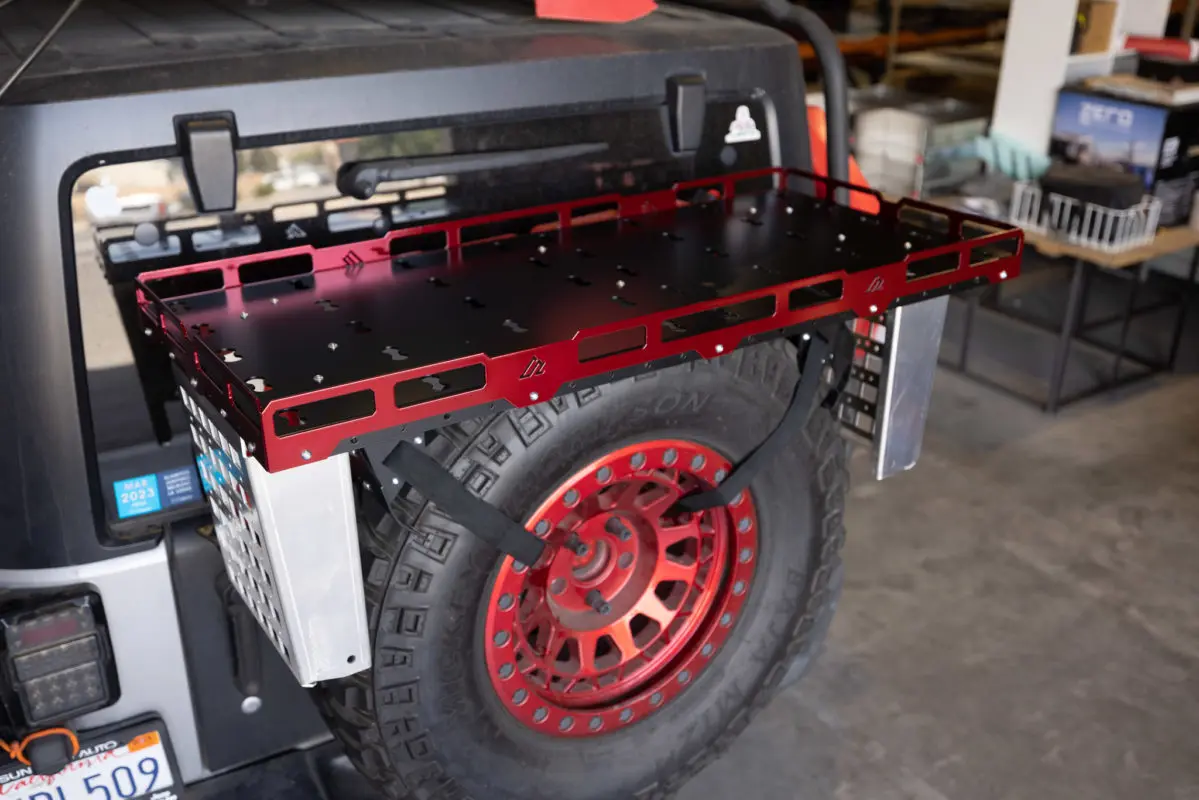

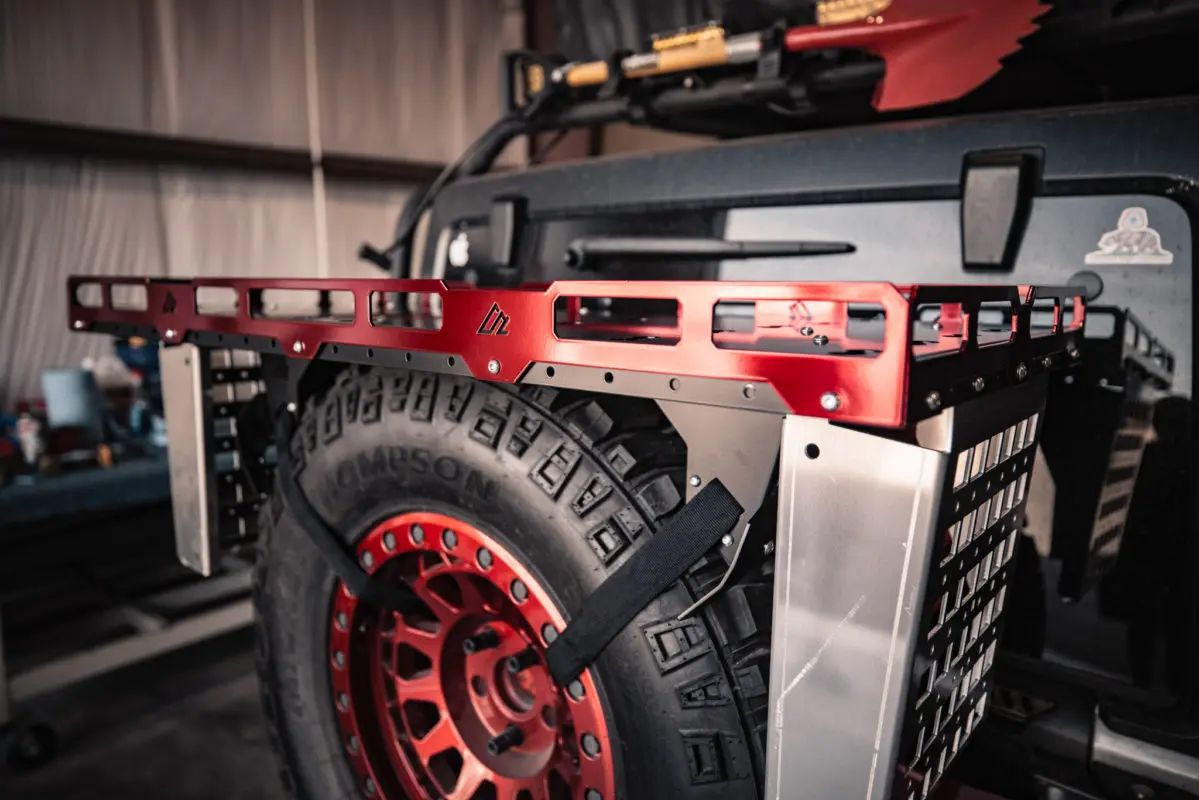

Storage equipment mounted around the rear spare tire.
Storage equipment mounted around the rear spare tire.

Plan the Gear Around the Spare Tire

The rear exterior views show storage mounted around the spare tire, with additional equipment carried on the roof. Those locations add options outside the cabin, but they also affect access around the back of the Jeep.

Consider how far the tailgate opens, how the mounted gear clears surrounding parts, and how you will reach it. Check the applicable carrier, rack, mount, and vehicle limits for your loaded configuration.

Equipment Layout Guide

Follow the numbered locations to understand this photographed setup.

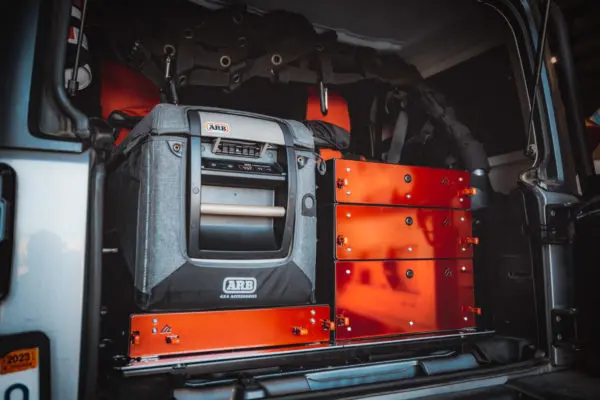

Photographed cargo layout in Erick's JKU.
  1. Fridge

    The fridge occupies the left side of the rear cargo opening.

  2. Drawer Stack

    The three red drawers are visible beside it; their dimensions are not recorded.

  3. Upper Storage

    Smaller equipment uses the height above the modules.

This photo explains one configuration, not a complete installation plan. Confirm the current product version, mounting requirements, seating needs, and clearances.

Questions About Erick’s JKU

Equipment, fitment, and planning details from this build.

Which Wrangler Is This?

The photos show a four-door Wrangler JK, commonly called a JKU. The original page does not identify the model year.

Which Fridge and Drawer Sizes Are Installed?

Those specifications are not documented in the source page. Use the photos to compare arrangements, then select components using your actual equipment measurements.

Can I Reproduce This Layout With Current Products?

Ask AAL to check the complete combination for your Jeep. Product versions and mounting details should be confirmed together.

What Should I Include in a Build Question?

Use the questions button above the main photo. Include your Wrangler’s year, door count, seating needs, fridge dimensions, and the equipment you want to carry or mount outside.
