Under Seat Mount – ARB Dual Compressor Kit

Includes Mounting holes for both ARB Duel Brushed and Brushless Compressor

All aluminum 5052 construction. No rust and light weight! Can be used on the passenger side or driver’s side and can easily be swapped to the opposing side using the appropriate Connection Kit. The Connection Kits are different for the driver and passenger side.

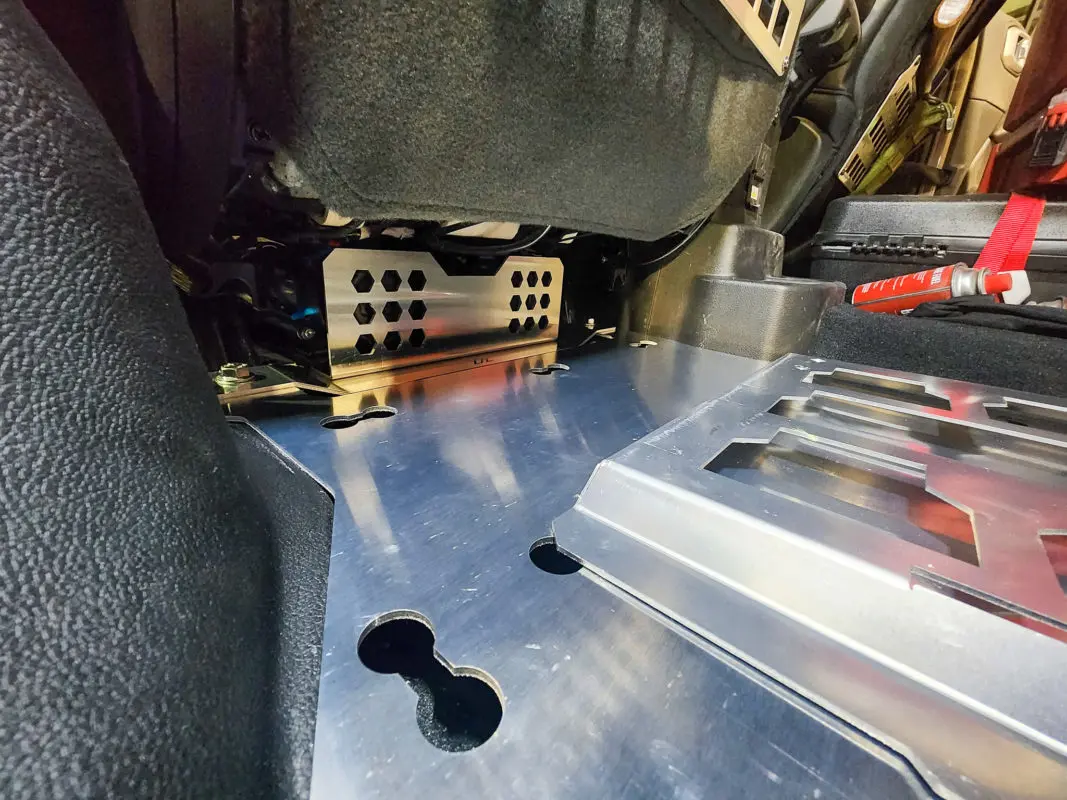

The rear “Kick Plate” is standard and prevents your passengers’ feet or your gear from damaging the plastic filters on the back of the compressor.

The Connection Kits are optional. If you are plumbing your compressor to an exterior coupler you will not need a Connection Kit.

New mounting bolts and spacers to fill the channel in the rear of the seat brackets are included. You do not need to remove the seat to install this bracket.

IMPORTANT: This will NOT fit vehicles with power seats. There just isn’t enough room for the compressor under there.

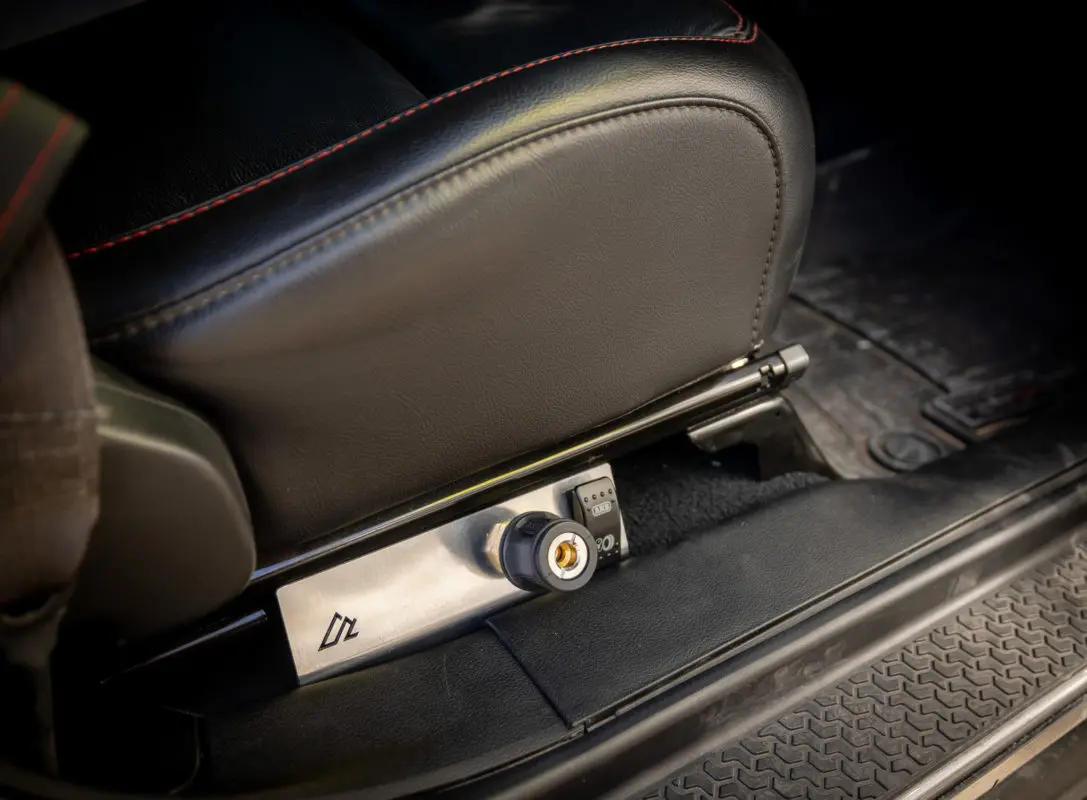

Passenger Side ARB Compressor Mount Configuration

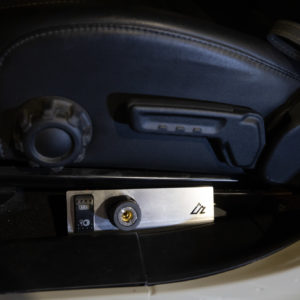

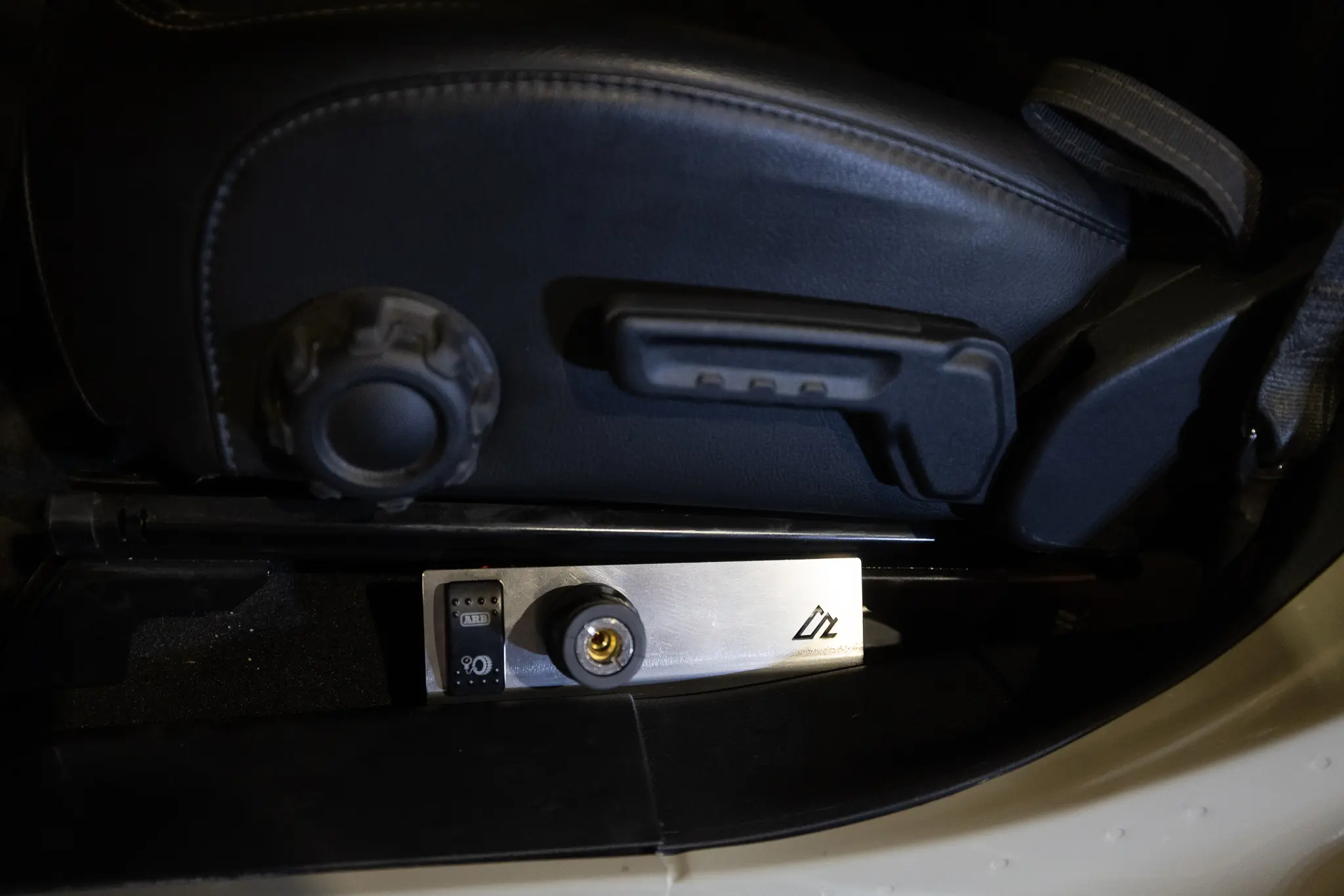

The main bracket can be attached on the Passenger’s side as well as the Driver’s side. If you would like your air coupler and switch mounted on the passenger side, you will need to add the Passenger Side Connection Kit.

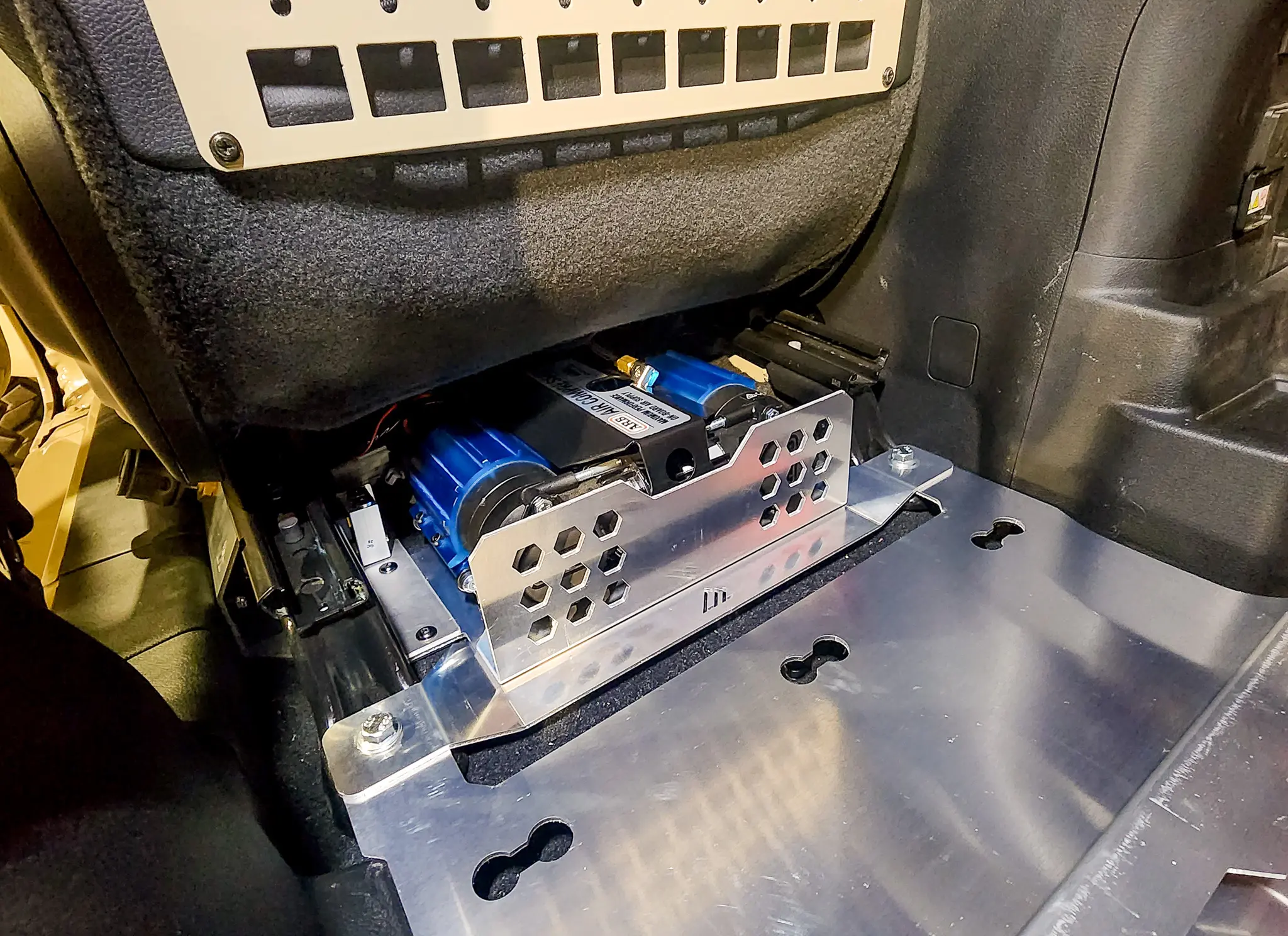

Driver’s Side ARB Compressor Mount Configuration

This mount system was designed with flexibility in mind. It can also be mounted on the Driver’s side and the Driver’s Side Connection Kit can be attached so your air coupler and compressor switch is accessible on the side of the driver’s seat.

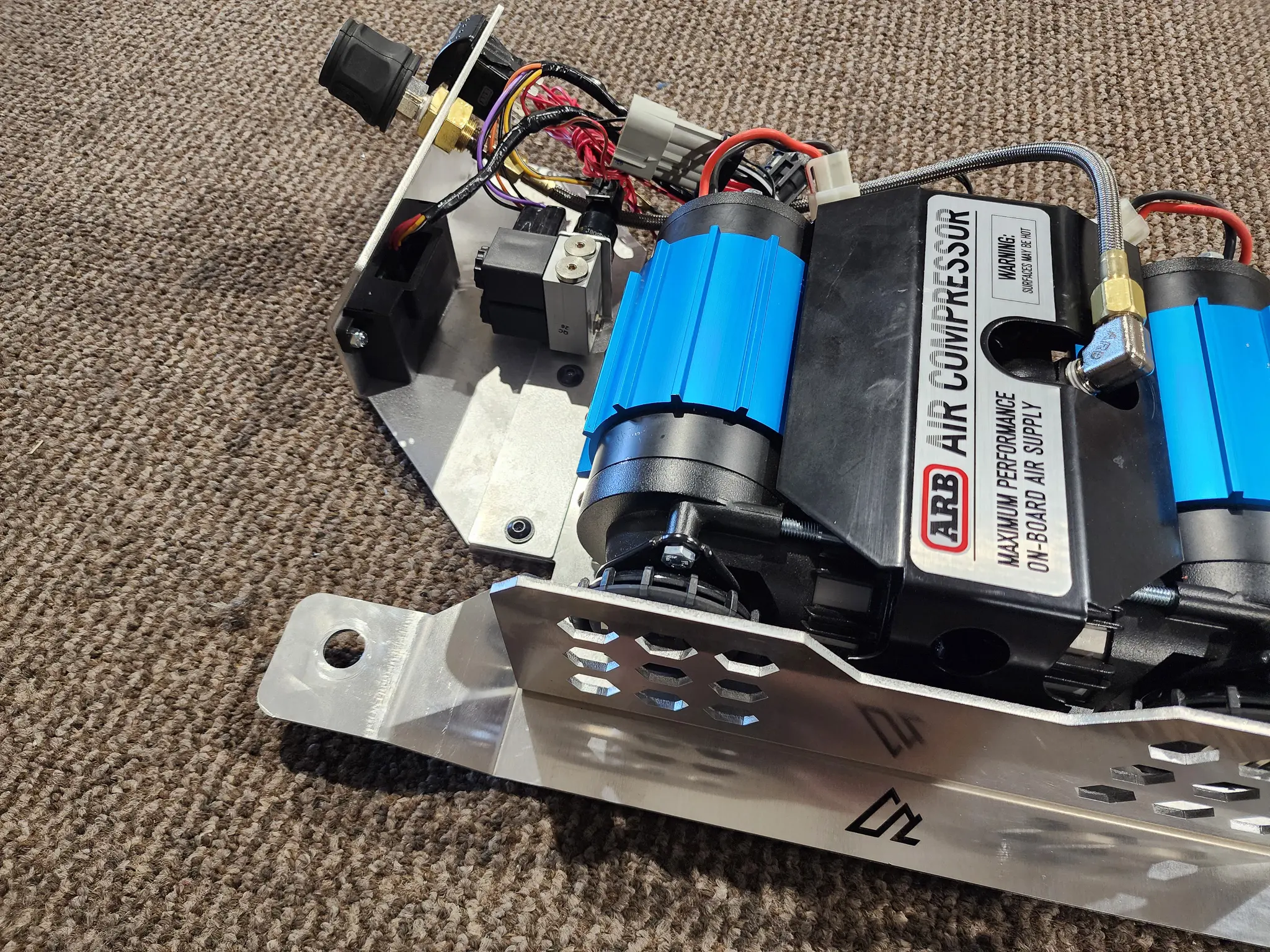

Connection Kits

Our “Connection Kits” include:

• Main mounting bracket for coupler and switch (5052 aluminum construction)
• ARB Quick Coupler
• Brass bulkhead fitting
• NPT to JIC adapter
• 90 degree NPT to JIC fitting
• Steel braided air hose to connect compressor to coupler (JIC on both ends)

Note: fitting threads have thread sealant pre-applied

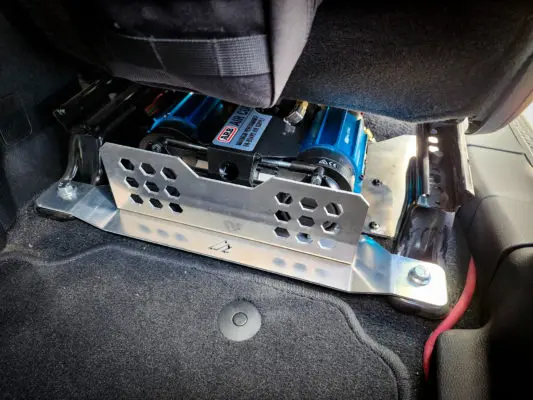

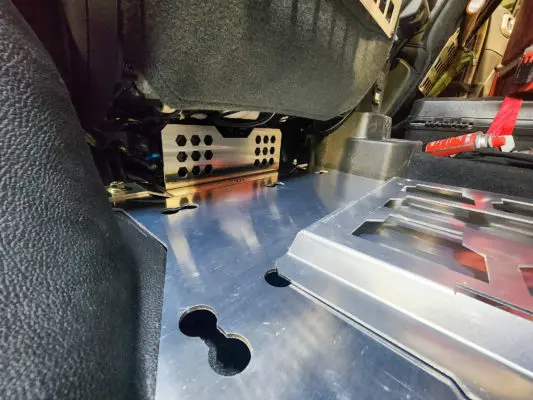

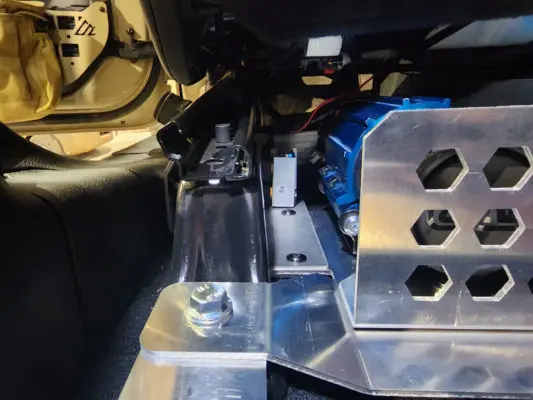

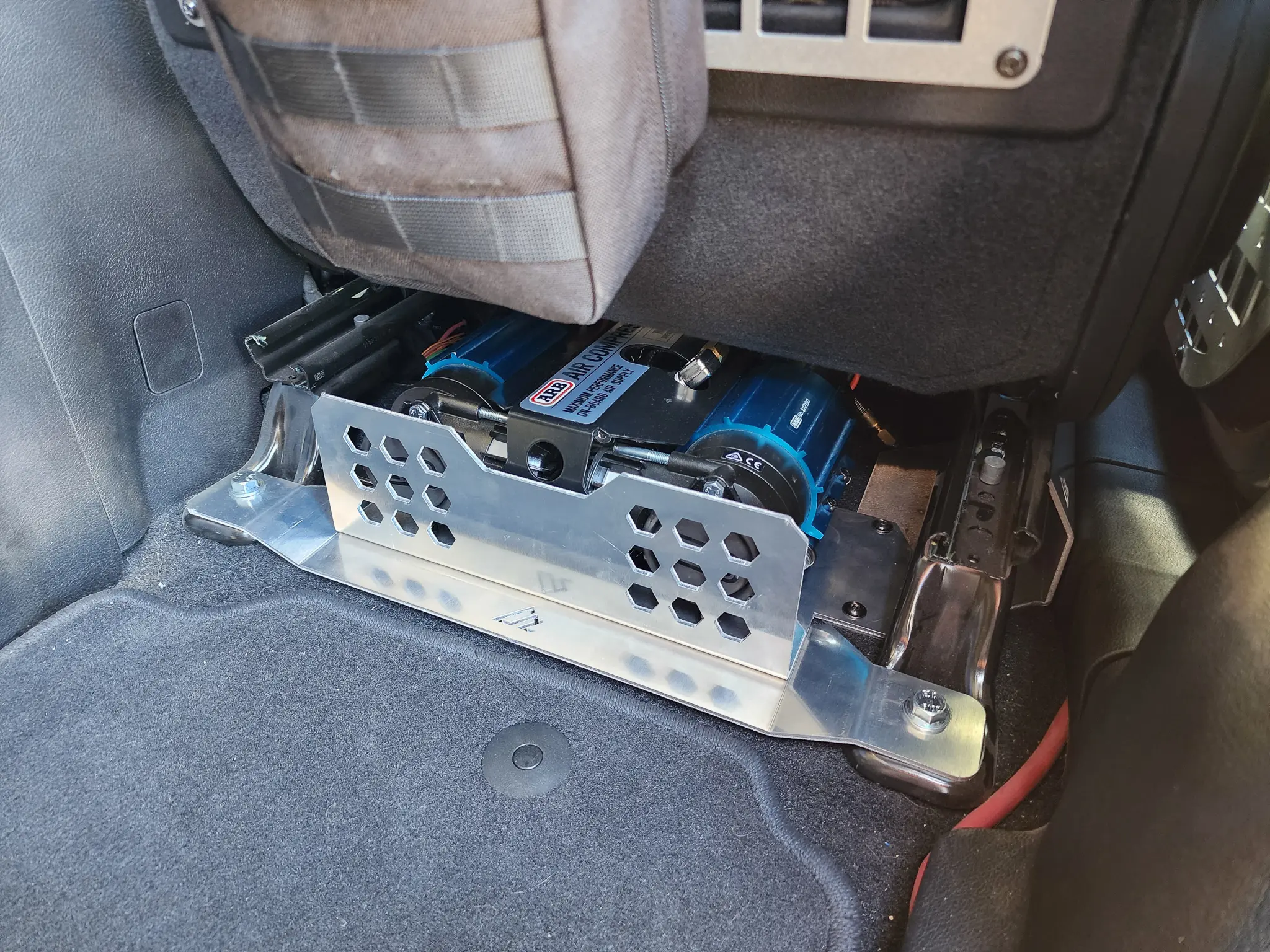

Protect the ARB Compressor Filters

We include an aluminum “kick plate” that attaches to the bracket that will protect the fragile plastic intake filters on the compressor. This prevents your passengers or your gear from damaging the filters.

The Kick Plate is attached to the main bracket with (2) zinc plated M6 bolts and nylon locknuts.
