Lightweight 10LB Propane Tank Mount
Price range: $165.00 through $195.00
Lightweight 5052 aluminum mount for 9-inch-diameter 10 lb propane tanks, now including the FlameKing YSN10LB-ALM aluminum tank. Stainless padlock-capable latch, reversible access, raw or textured black finish, and a new fabricated swingarm pivot that saves weight and simplifies assembly.
Note: Product photos may contain optional components.
The Lightweight 10LB Propane Tank Mount secures a 9-inch-diameter 10 lb propane cylinder to an overland rig, trailer, or camp build without turning fuel storage into dead weight. This updated version keeps the 5052 aluminum body, stainless padlock-capable draw latch, reversible access, and security flanges from the original mount, then adds support for the FlameKing YSN10LB-ALM aluminum 10 lb tank.
Updated Fitment

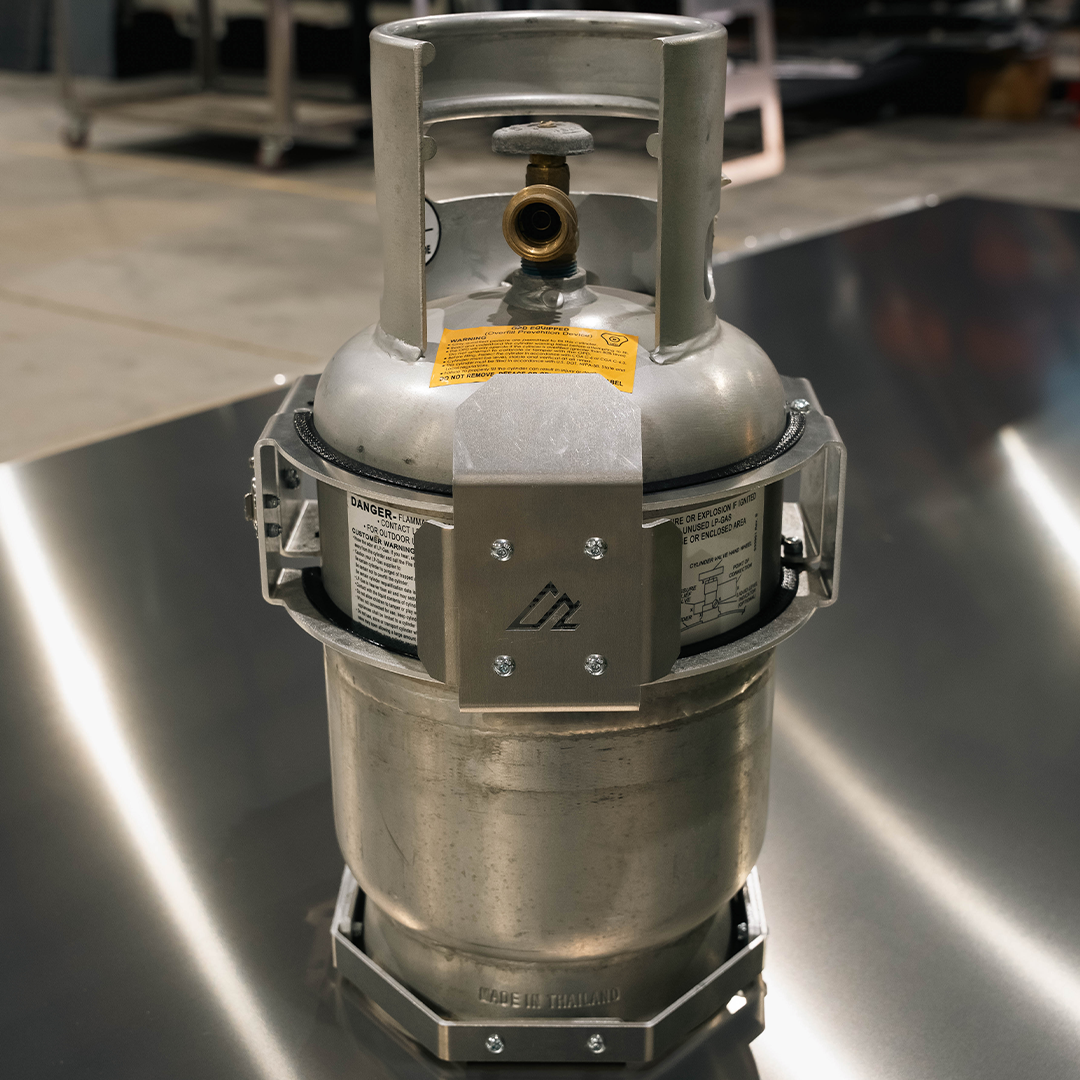

Now supports the FlameKing aluminum 10 lb tank.Built around a 9-inch tank diameter, including the FlameKing YSN10LB-ALM aluminum cylinder and the 9-inch FlameKing 10 lb tank fitment this mount was originally developed around.
What Changed
The major update is the hinge. We replaced the previous cast hinge with a fabricated swingarm pivot, which makes assembly cleaner, removes unnecessary weight, and helps reduce manufacturing cost without giving up the latch, material, or tank security that made the original mount work.
Built from 5052 aluminumThe body stays light, rigid, and corrosion-resistant for vehicle-based camp and trail use.
Padlock-capable stainless latchThe quick-release draw latch pulls the clamp tight and gives you a simple way to add a padlock when your setup calls for it.
Reversible accessAssemble the mount to open from the left or the right so it works with your rack, trailer, spare-tire area, or camp-kitchen layout.
Tank Fitment
This mount is designed around tank diameter, not just the number printed on the propane cylinder. It is made for 10 lb propane tanks with an outside diameter of about 9 inches (230 mm).- Fits the FlameKing YSN10LB-ALM 10 lb aluminum propane tank.
- Fits 9-inch-diameter FlameKing 10 lb propane tanks used for the original mount fitment.
- Does not automatically fit every 10 lb propane tank from every brand.
Verify the tank before ordering. Some retailers and third-party listings use similar product names for tanks with different shapes. If you are using anything other than the listed FlameKing fitments, confirm the tank diameter, collar, foot ring, and overall profile before ordering the mount. Propane tank sold separately.
How It Works On The Rig

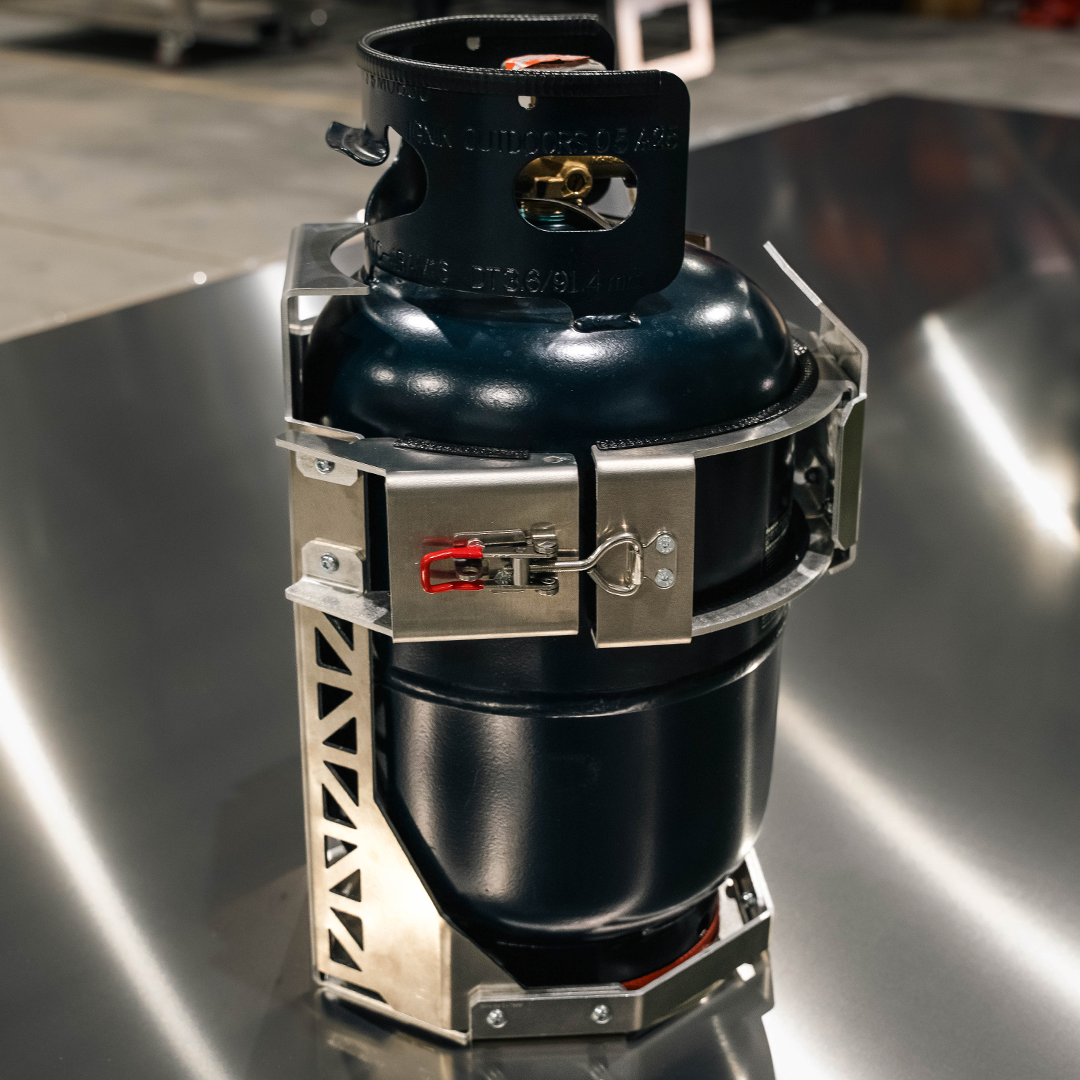

The mount clamps around the propane tank with shaped aluminum plates and protective edge trim at the contact points. The stainless draw latch gives fast access when you need to remove the bottle for filling or camp setup, while the security flanges make it harder to spread the clamp open around the tank.
That combination matters on an overland build. A 10 lb tank gives you more cooking and camp-fuel capacity than small disposable bottles, but it still needs to be held cleanly, opened easily, and kept from becoming loose cargo. This mount keeps the tank accessible without giving up the weight savings that make the FlameKing aluminum cylinder attractive in the first place.
Specs And Options
- Material: 5052 aluminum
- Tank diameter: 9 in / 230 mm
- Verified aluminum tank: FlameKing YSN10LB-ALM
- FlameKing aluminum tank dimensions: 9 x 9 x 19.25 in
- FlameKing aluminum tank weight: 9.6 lb empty
- Latch: stainless steel draw latch
- Security: padlock-capable latch and anti-spread flanges
- Opening: reversible left- or right-hand access
- Finish: Raw/Unfinished or Textured Black
- Padlock option: choose with or without padlock
- Manufacturing: made in St. George, Utah
Assembly Note
Your mount ships with protective edge trim for the tank contact surfaces. Install the long trim pieces starting right at the edge of the clamp, then work around the clamp so the trim lands where it needs to for proper tank tension.
Still picking the right bottle size?We build propane mounts for multiple camp-fuel setups, including the smaller Lightweight 5LB Propane Tank Mount.
See All Propane Tank Mounts
Common Questions
Will this fit the FlameKing 10 lb aluminum propane tank?
Yes. This updated mount supports the FlameKing YSN10LB-ALM aluminum 10 lb propane tank.Will it fit every 10 lb propane tank?
No. This is a fixed-diameter mount for 9-inch / 230 mm tanks. If a different 10 lb tank uses a different diameter, collar, base ring, or overall profile, it may not fit correctly.Is the propane tank included?
No. This product is the mount only. The propane tank is sold separately so you can pair the mount with the tank that fits your build.Can the mount open from either side?
Yes. The mount is reversible, so you can assemble it for left- or right-hand access based on where it sits on your vehicle, trailer, rack, or camp setup.What is different from the original 10 lb propane tank mount?
The updated version adds FlameKing aluminum 10 lb tank support and replaces the cast hinge with a fabricated swingarm pivot. The 5052 aluminum construction, stainless padlock-capable latch, reversible access, finish options, and security flanges carry forward.Be the first to review “Lightweight 10LB Propane Tank Mount”
