Type a
Dimensions:- Width: 5.31ā³ (135mm)
- Length: 9.13ā³ (232mm)
- Height: 7.13ā³ (181mm)
- Width: 5.31″ (135mm)
- Length: 8.8″ (223mm)
- Height: 7.3″ (185mm)
Note: Product photos may contain optional components.
Jeep JL Dual ARB Compressor Mount
From: Original price was: $150.00.$135.00Current price is: $135.00.
The quickest, easiest, and most secure way to add onboard air (Dual ARB Compressor) and an auxiliary battery (Odyssey PC1100) to your Jeep JL.
As part of our Veterans Day Sale, this product is currently 2% to 10% off. You will save $15.00 to $27.48. Click the sale banner above to view all products included in this sale.
Selected configuration
Choose options to see current availability
-
Ready to ship
-
In production
Choose options to see ready stock and in-production counts. We manufacture in-house, so counts change throughout the day.
AAL Installer NetworkFind an Authorized Installer
Selected
Choose one installer for your entire order. Your selection follows you between products and is confirmed at checkout.

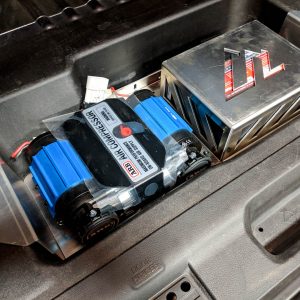

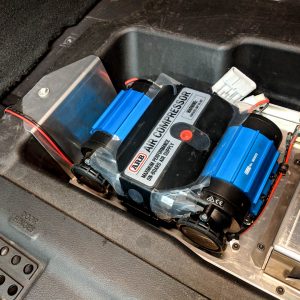

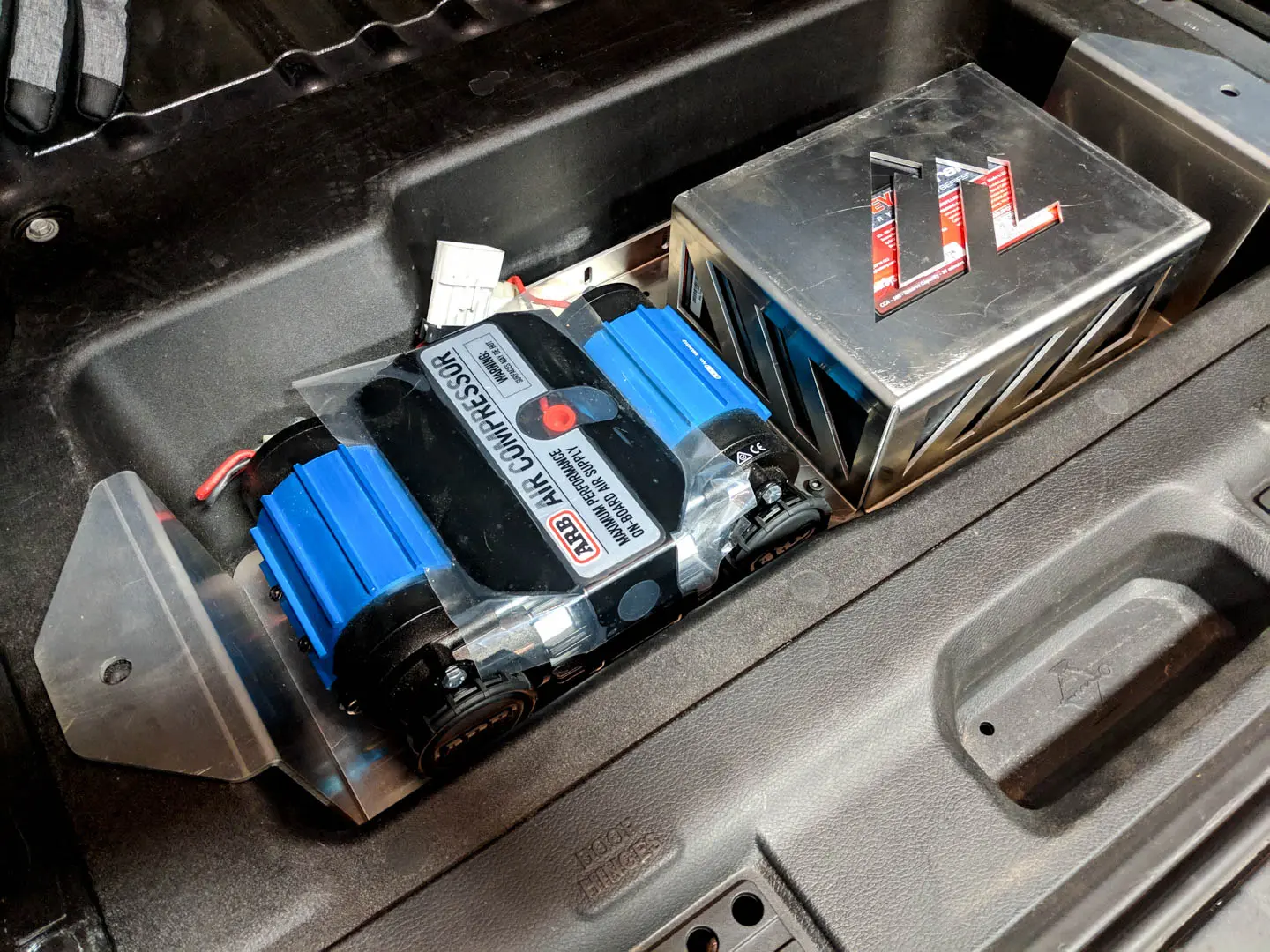

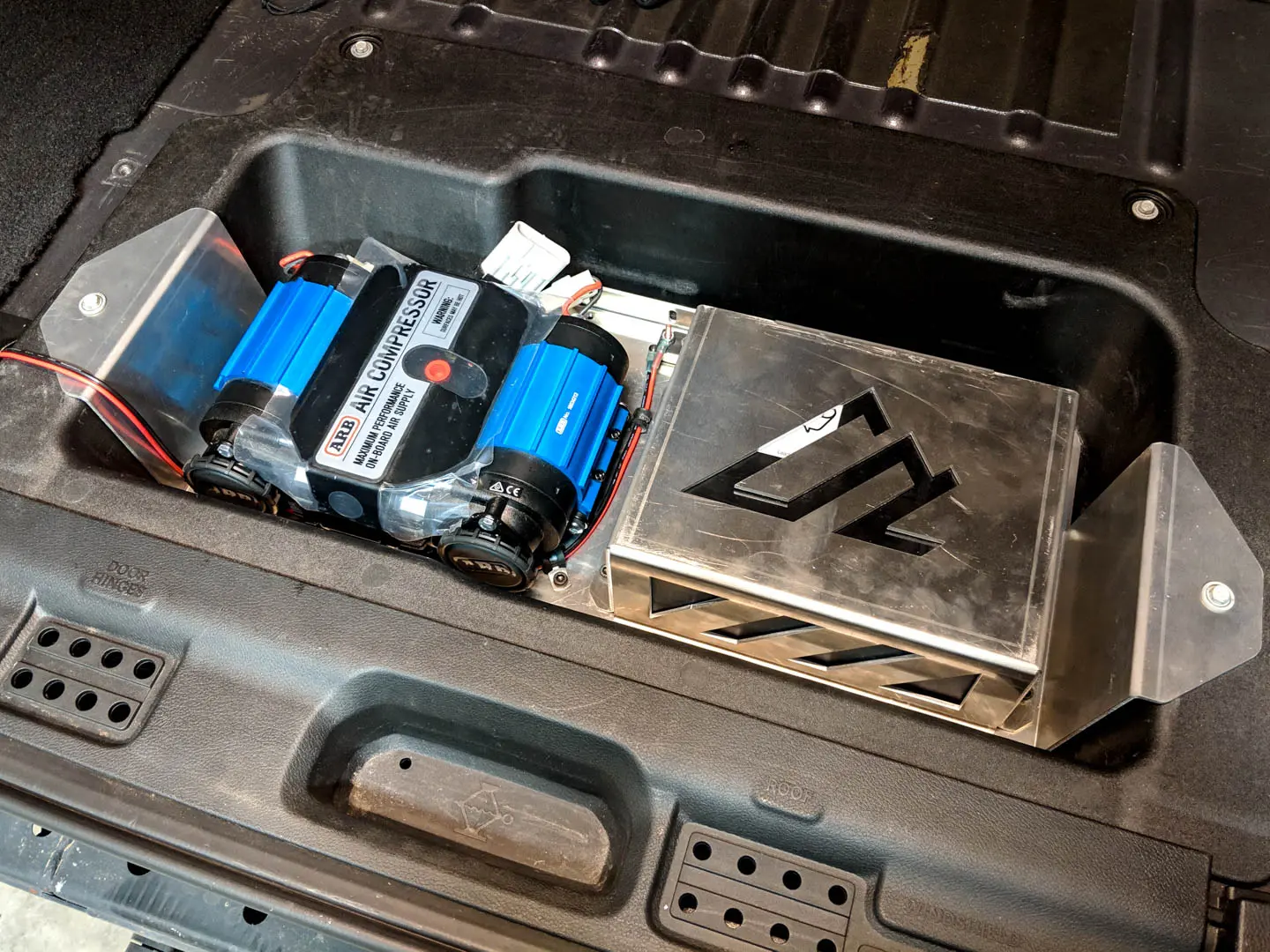

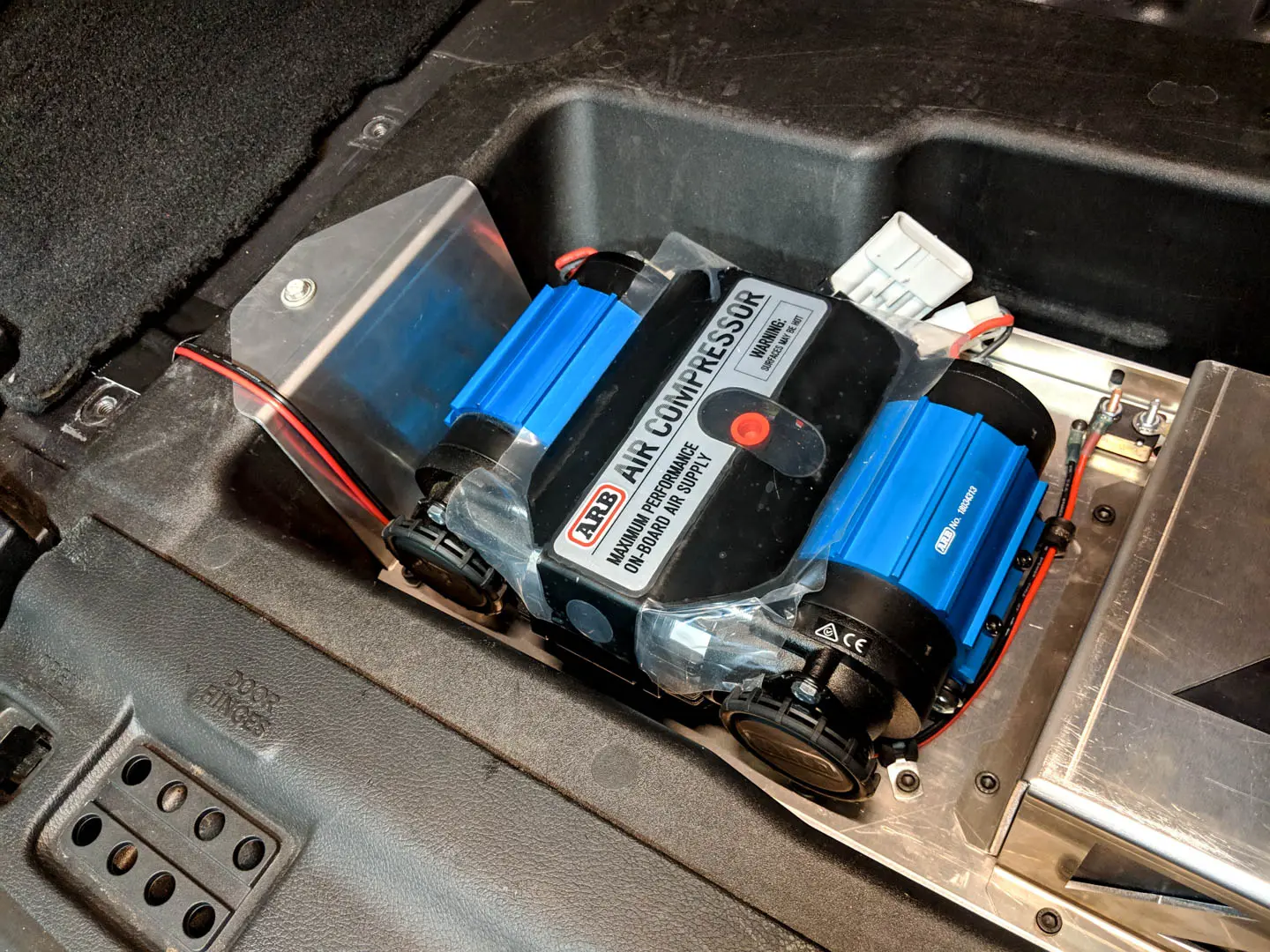

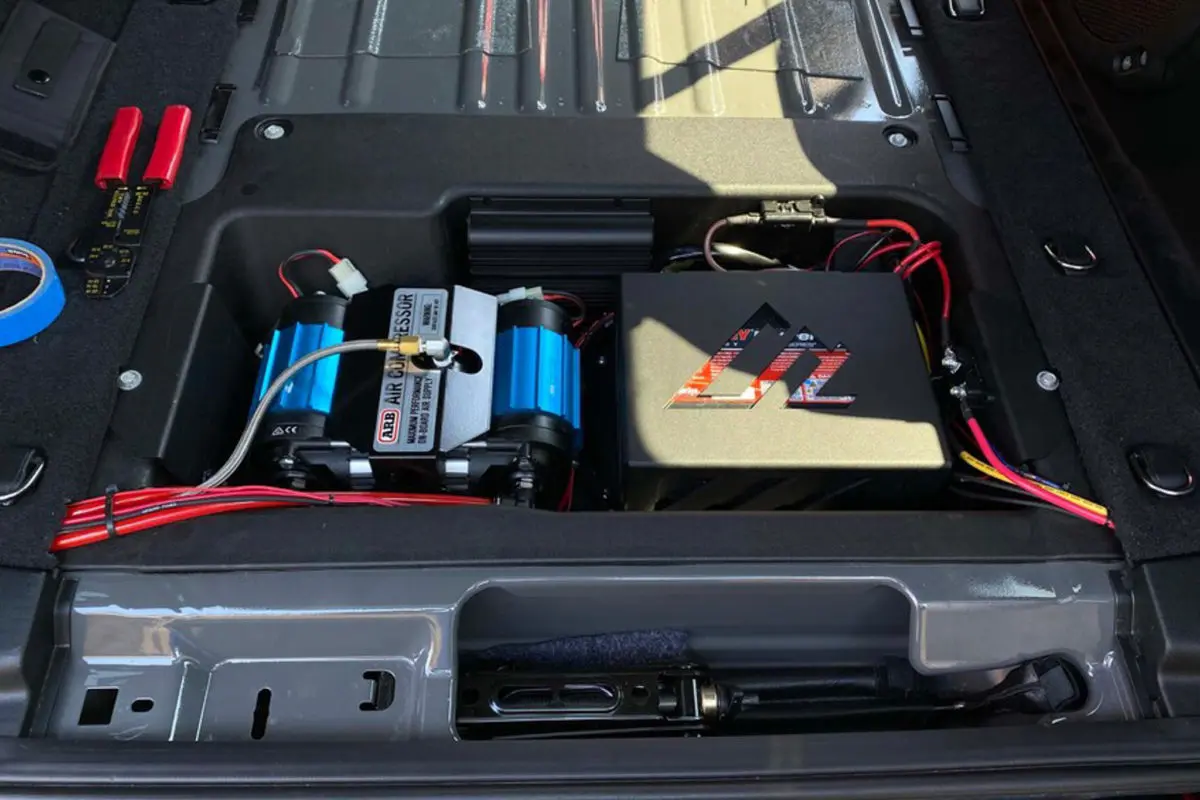

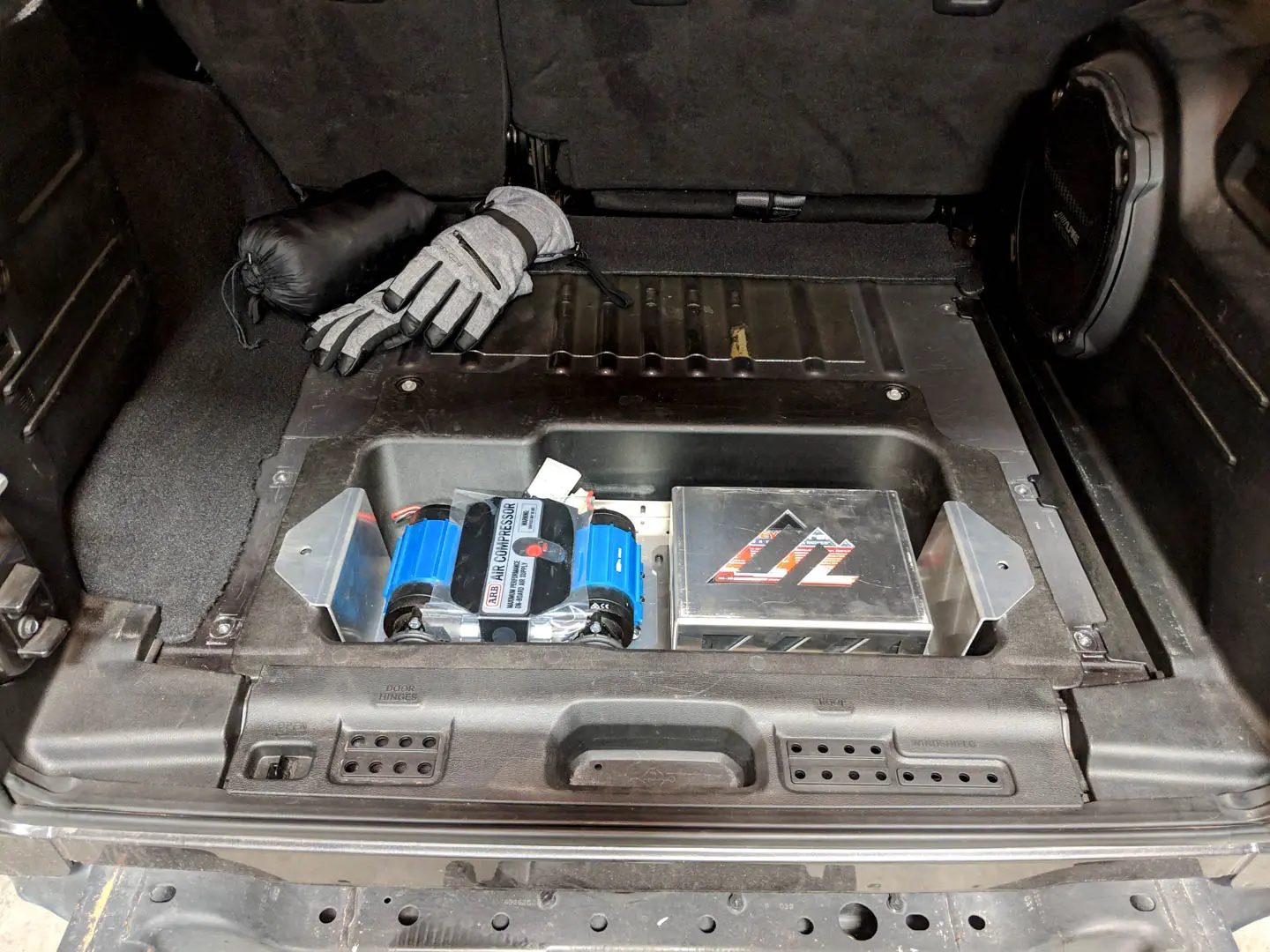

Due to the configuration of the under-the-hood components of the new Jeep JL, there is no longer room to mount a Dual ARB air compressor. Our solution to that problem is to mount the Dual ARB Compressor in the sealed compartment below the cargo area. This has the following benefits:
- Keeps everything dry
- Sound insulation – very quiet during operation
- Concealed – keeps the compressor eye candy away from prying eyes
- Proper use of space – most of the time when hauling cargo, it would be very tough to get to anything stored in this cargo compartment. For this reason, it makes sense to mount things in there that don’t need to be accessed often. The compressor and battery are perfect for that space.
Comparing mounting locations? Explore our JL on-board air systems guide before choosing your setup.
Battery Options
Below are the batteries for which we build hold-down brackets. We have also had some issues with the battery manufacturers changing the dimensions of the batteries. Please pay attention to the dimensions listed below for each battery. The brackets are built with tight tolerances and will not fit batteries of varying sizes.NOTE: There has been an inconsistency to the size of the 30Ah and 50Ah Eco-Worthy batteries lately so we recommend getting the battery first and checking the physical dimensions so we know which bracket to send out. Please add the size of yours to the customer notes on the checkout page.
Type b
Dimensions:- Width: 7.17″ (182mm)
- Length: 3.07″ (78mm)
- Height: 6.46″ (164mm)
Odyssey PC1100
Dimensions:- Width: 3.8″ (95.5mm)
- Length: 9.8″ (223mm)
- Height: 8.1″ (205.7mm)
- ODYSSEY PC1100 (no link to this one yet)
Design Update!

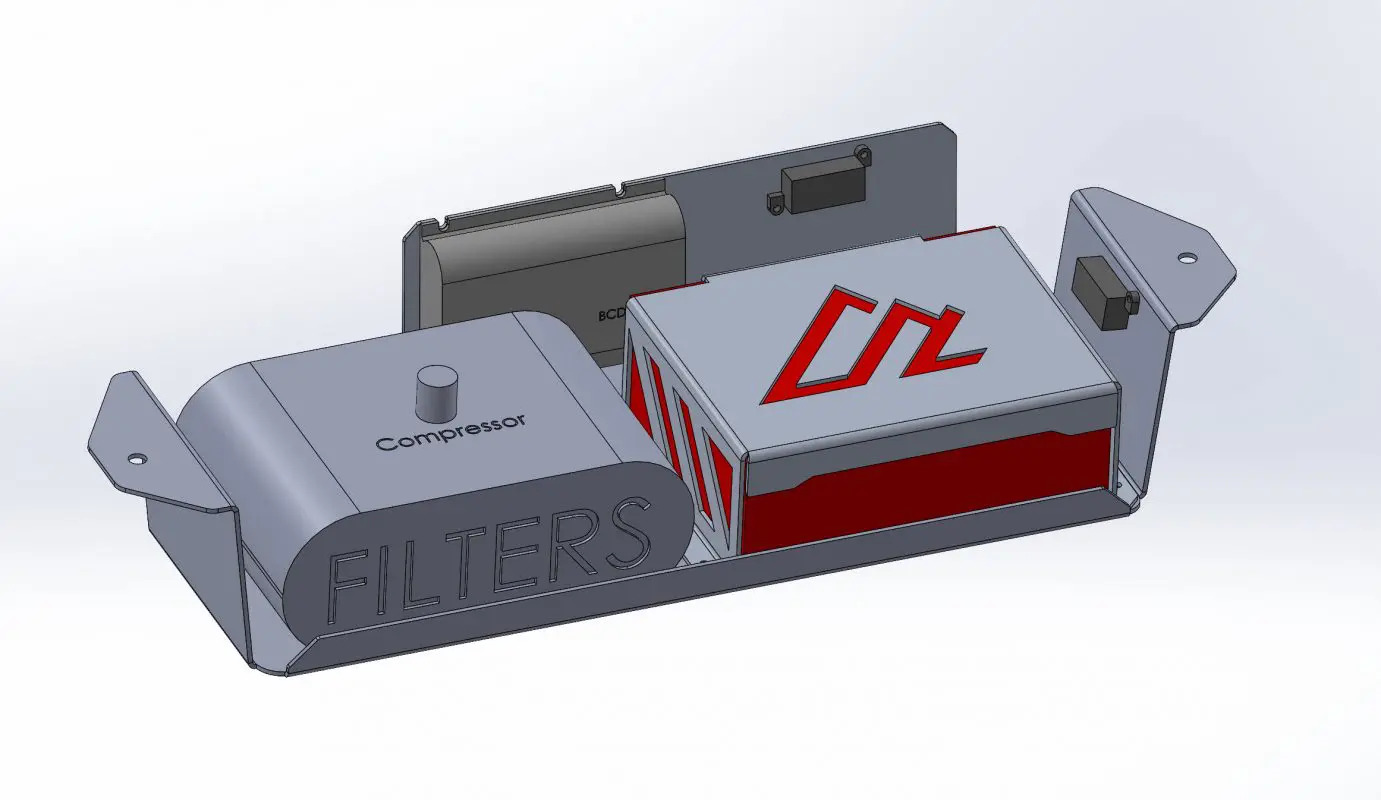

Keeping with the “Lab” theme, we are constantly improving our products. This update moves the battery about an inch rearward making more room for wiring. This should make wiring even easier. We also now have an optional bracket to mount the REDARC BCDC 1225D, along with holes pre-cut for the REDARC fuse kit. We sweat the details so you don’t have to! These changes are shipping now!

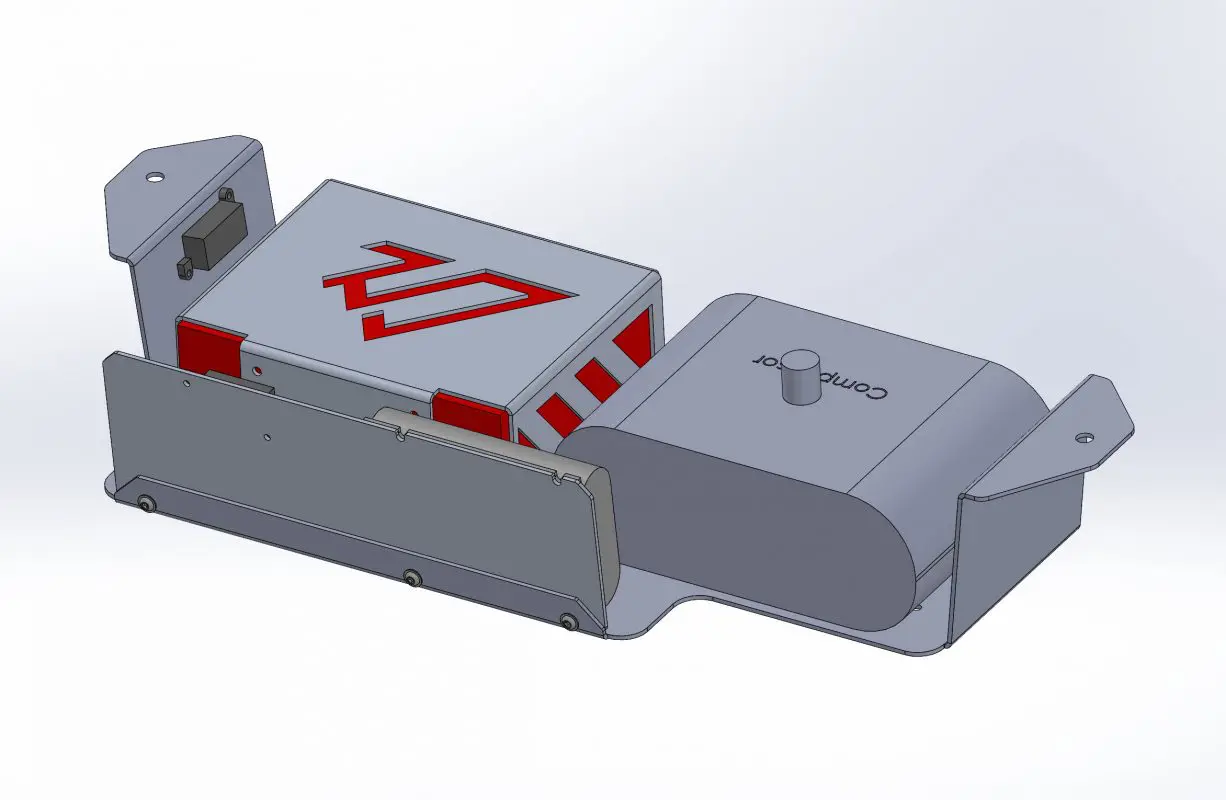

Interactive CAD Model
Just Released – Remote Kit with Built-In Voltmeter and Status LED!
To make everything easy to access and completely tucked away, we developed our ARB Remote Kit (separate product from the bracket on this page). This brings a ton of features to the easy to access area of the Jeep JL right behind the C-pillar (driver rear). This is a great complimentary product to the Dual ARB Compressor Bracket on this page. Learn More
In-Depth Install by Four Wheeler
Sean Holman, of Four Wheeler, did a very thorough installation of the complete compressor, auxiliary battery, and remote kit package. He did a great job of explaining the benefits of this system as well as the steps required to get it all connected. Check it out if you have a few minutes. It’s a very educational read. Take Me to the Install article100% Made in the USA

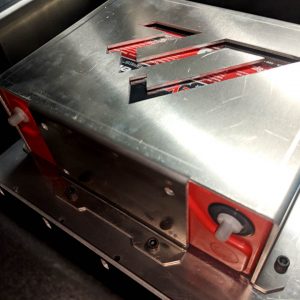

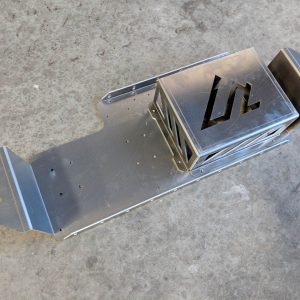

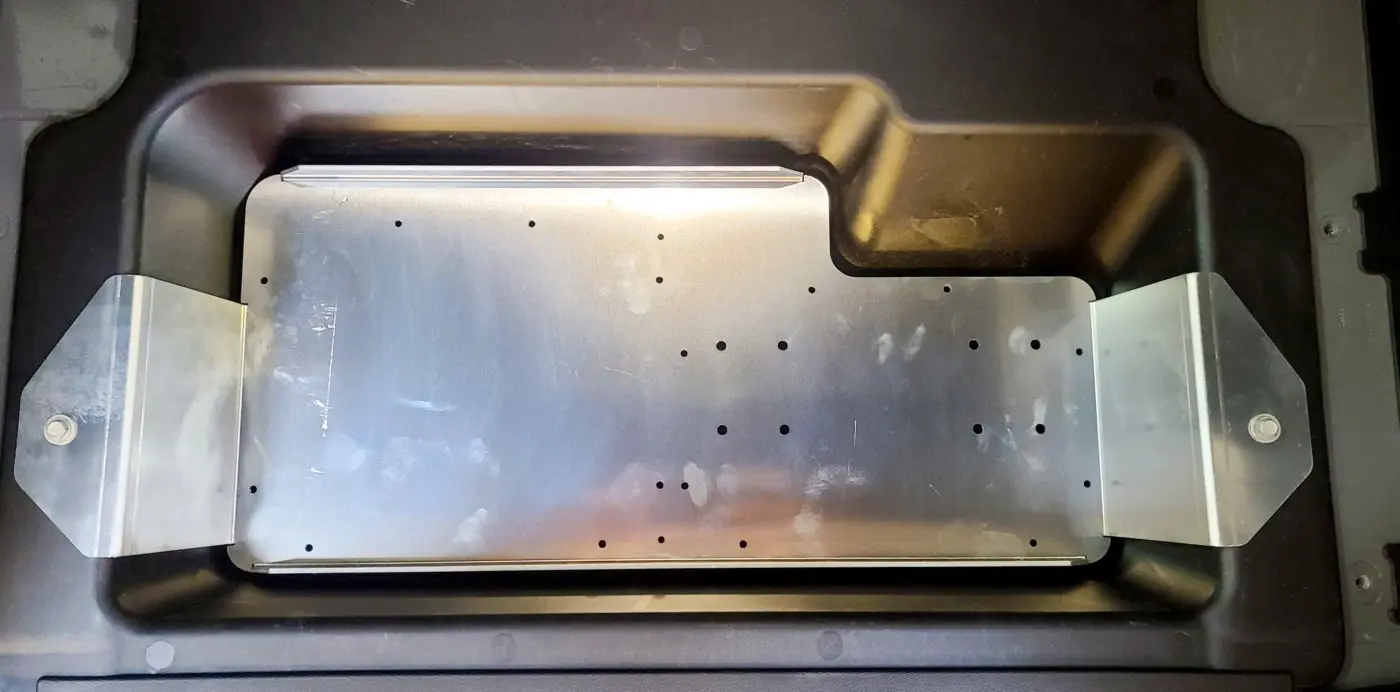

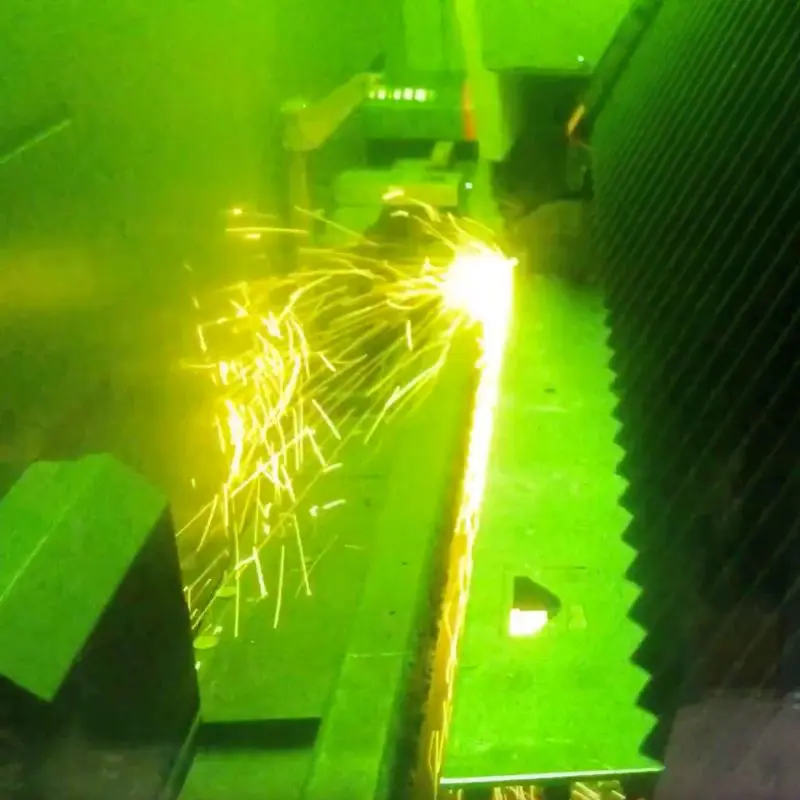

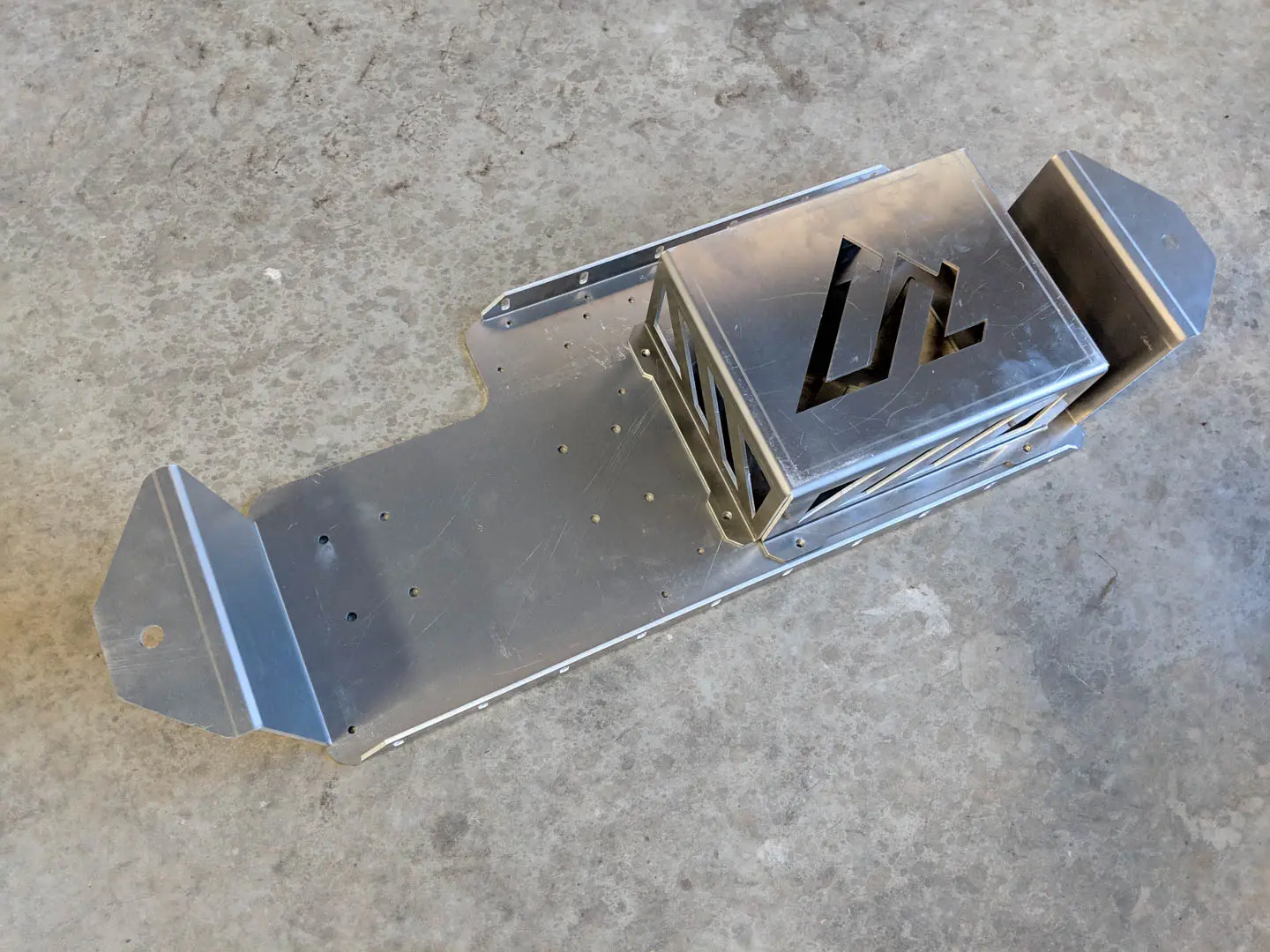

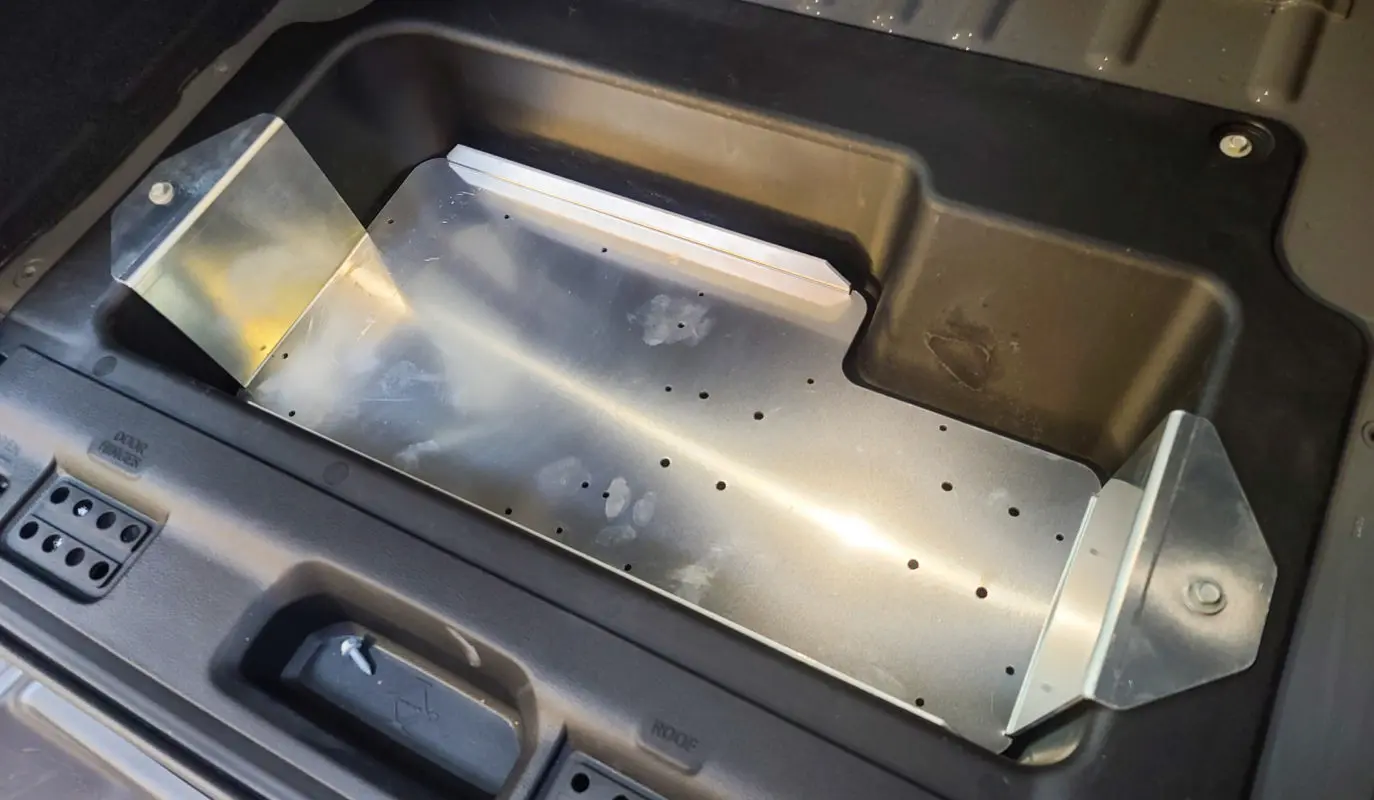

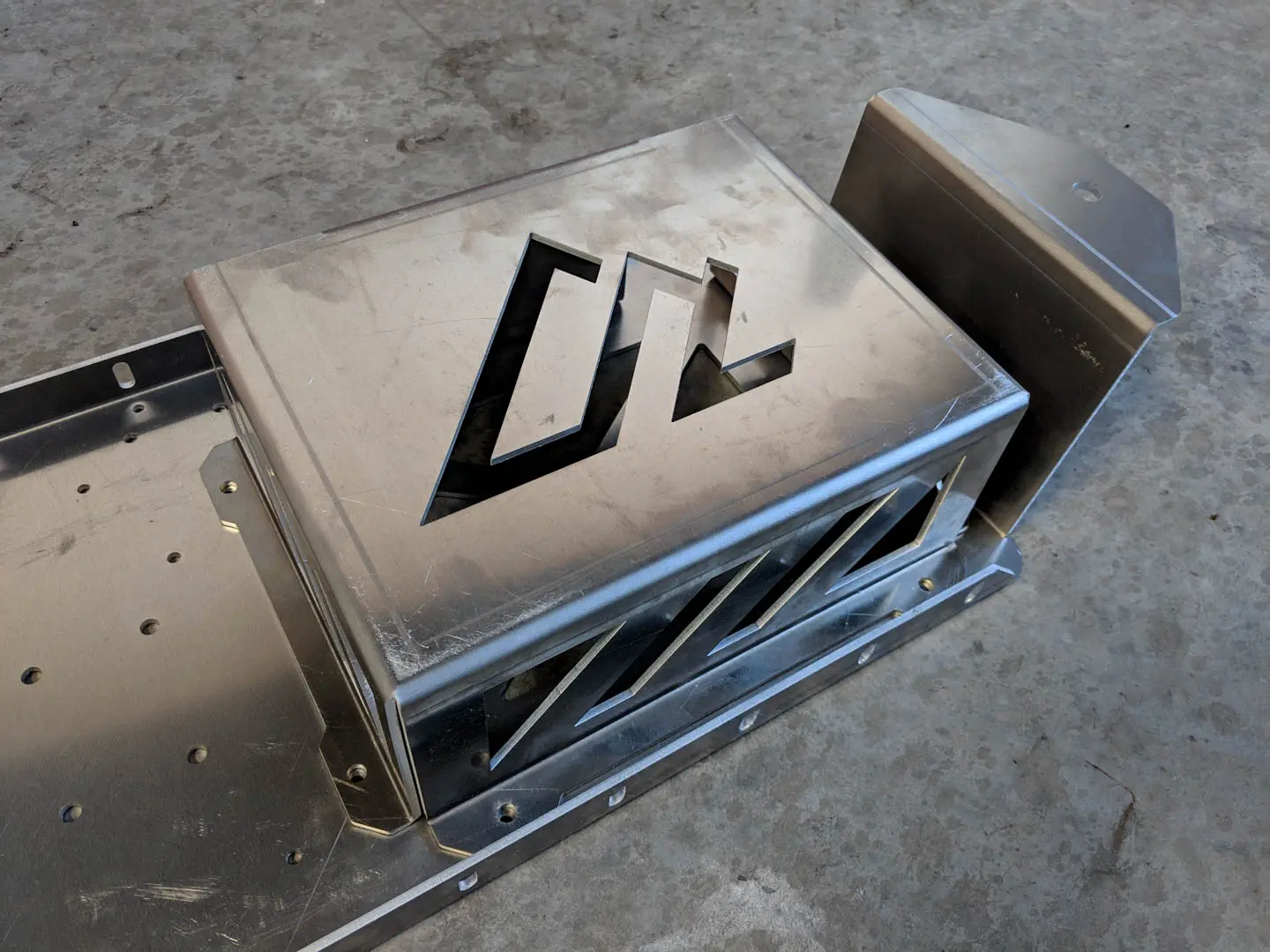

As our company name proudly suggests, all of the products we build are made right here in the USA. This one is no exception. This bracket is precision laser cut by a fiber laser and maintains a .005″ tolerance on all cuts. The tray is held into the cargo compartment of the Jeep JL using two OEM bolts and existing threaded holes. No drilling is required to mount this bracket. The battery tray is held down using 8 metric allen bolts.
Efficient Use of Space

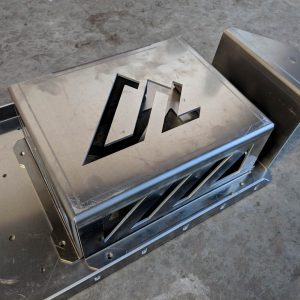

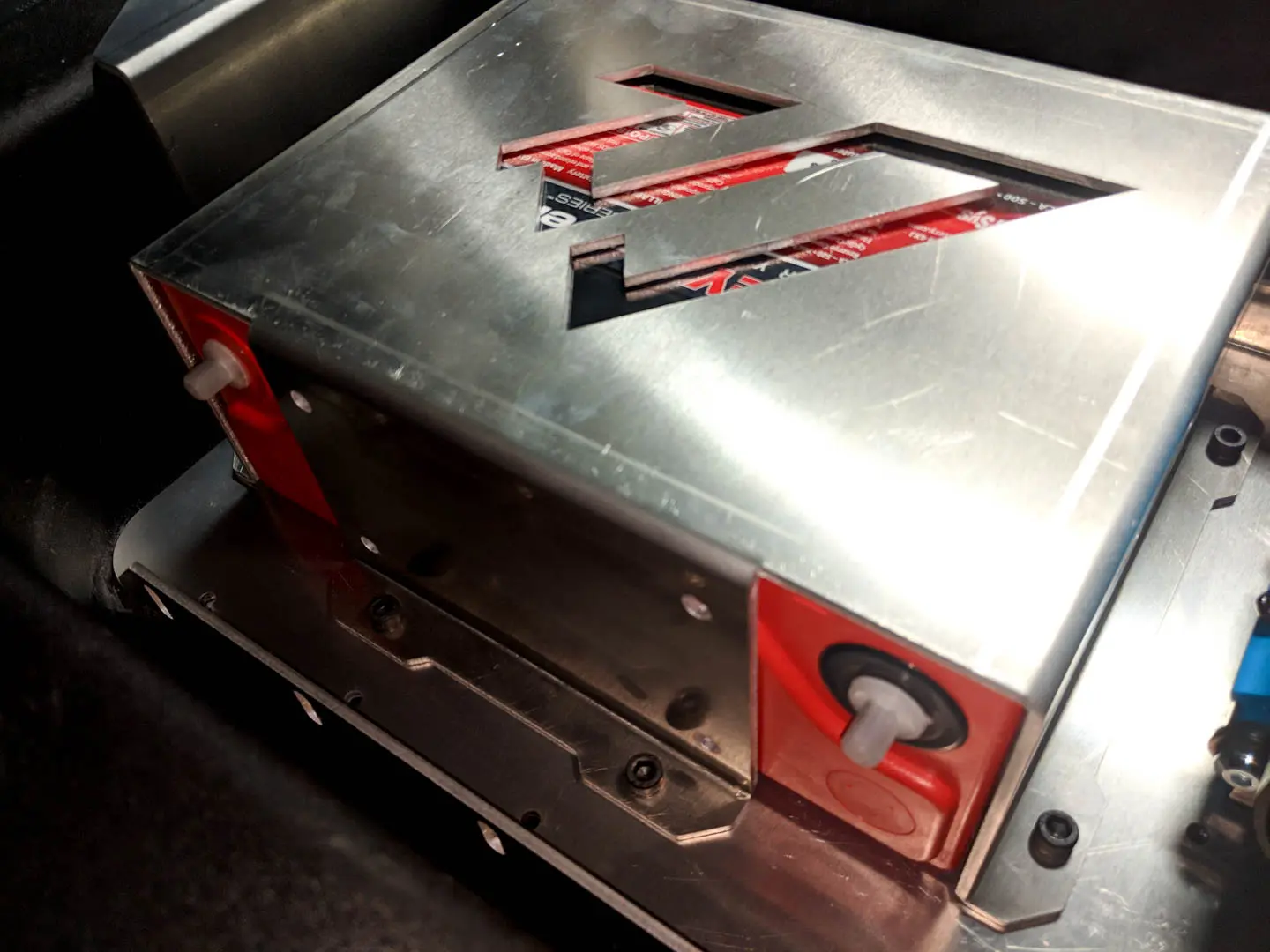

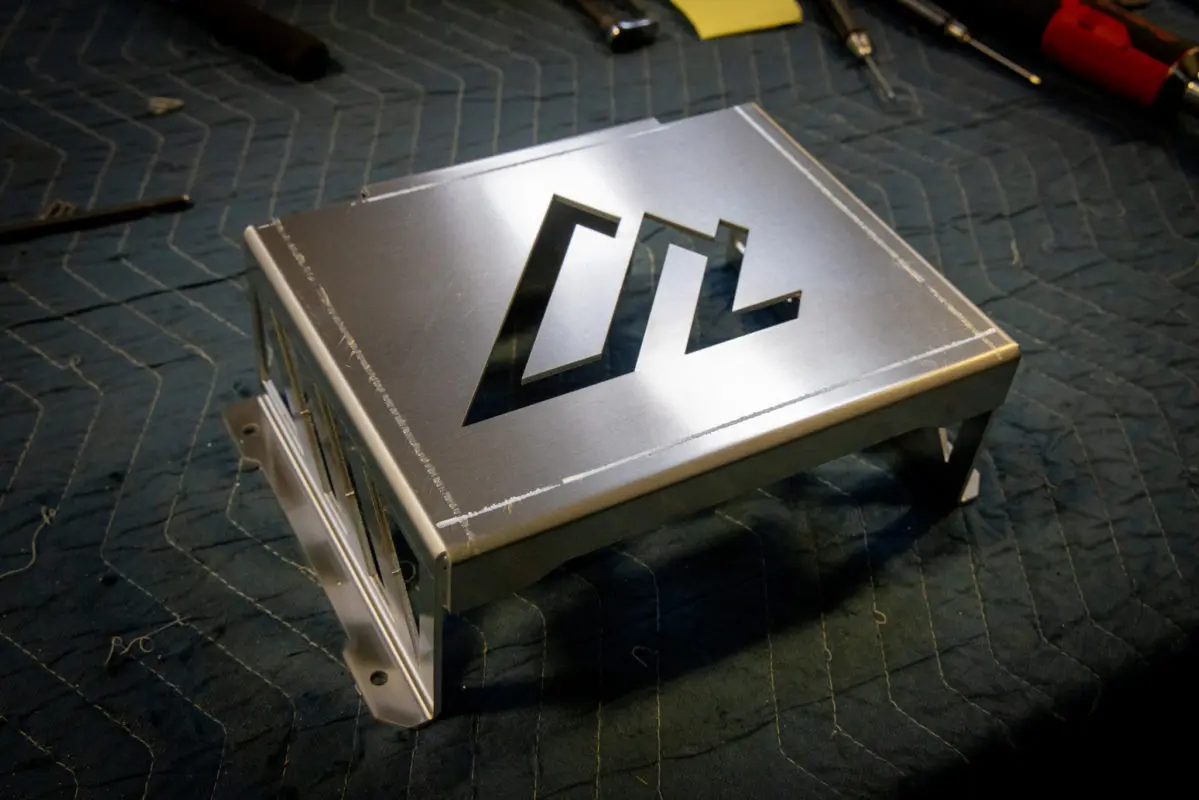

This bracket makes use of every ounce of space in the Jeep JL cargo compartment. Holes are pre-cut to offer endless opportunities to secure your wiring, hoses, etc. The battery box is extremely secure and has multiple slots cut into it to help aid in cooling. We even cut into the bottom of the tray to allow for that extra little bit of airflow to the battery.
Be the first to review “Jeep JL Dual ARB Compressor Mount”
Featured in these Vehicle Builds
Frequently Asked Questions
Does the compressor get too hot mounted underneath the platform/carpet?Ā
While we have never had any heat issues, many customers have voiced their concerns regarding this issue. Which is why one of the features of the remote kit is the relocation of the intake filtersĀ
How do I provide power to my compressor?Ā
If installed in conjunction with the auxiliary battery and Redarc Charger, you would wire the main compressor power to the auxiliary battery. For the compressor switch power, you would wire that into a 12v source of choice. If you are not using our auxiliary battery/charger, you would want to utilize the rear wiring kit with a fuse kit engine side and optionally a cut off switch to ensure control over when the compressor is allowed to turn on.Ā
Will this compressor mount fit my JK?
No, however there is a product specifically for the JK.
What products do I need to run this?
You will need of course, the compressor, rear wiring kit, a MAXI fuse kit, a 6 way fuse kit, and optionally the cutoff switch.
What is the best way to set up the battery?Ā
The best way to wire in the auxiliary battery is with the use of the Redarc in vehicle battery charger. The Redarc charger is wired in between the main battery and the auxiliary battery. This ensures the auxiliary battery receives a full charge.
Do I need your 6-way fuse box?
The fuse box can be tied directly to the main engine battery or to our auxiliary battery to provide a convenient power source for low amperage rear accessories (ie: fridge/freezer, rear cargo light, rear area lights, and our VersaTable light)
Will this fit the new brushless ARB compressor?
Yes -- we do have this available for the Brushless!
