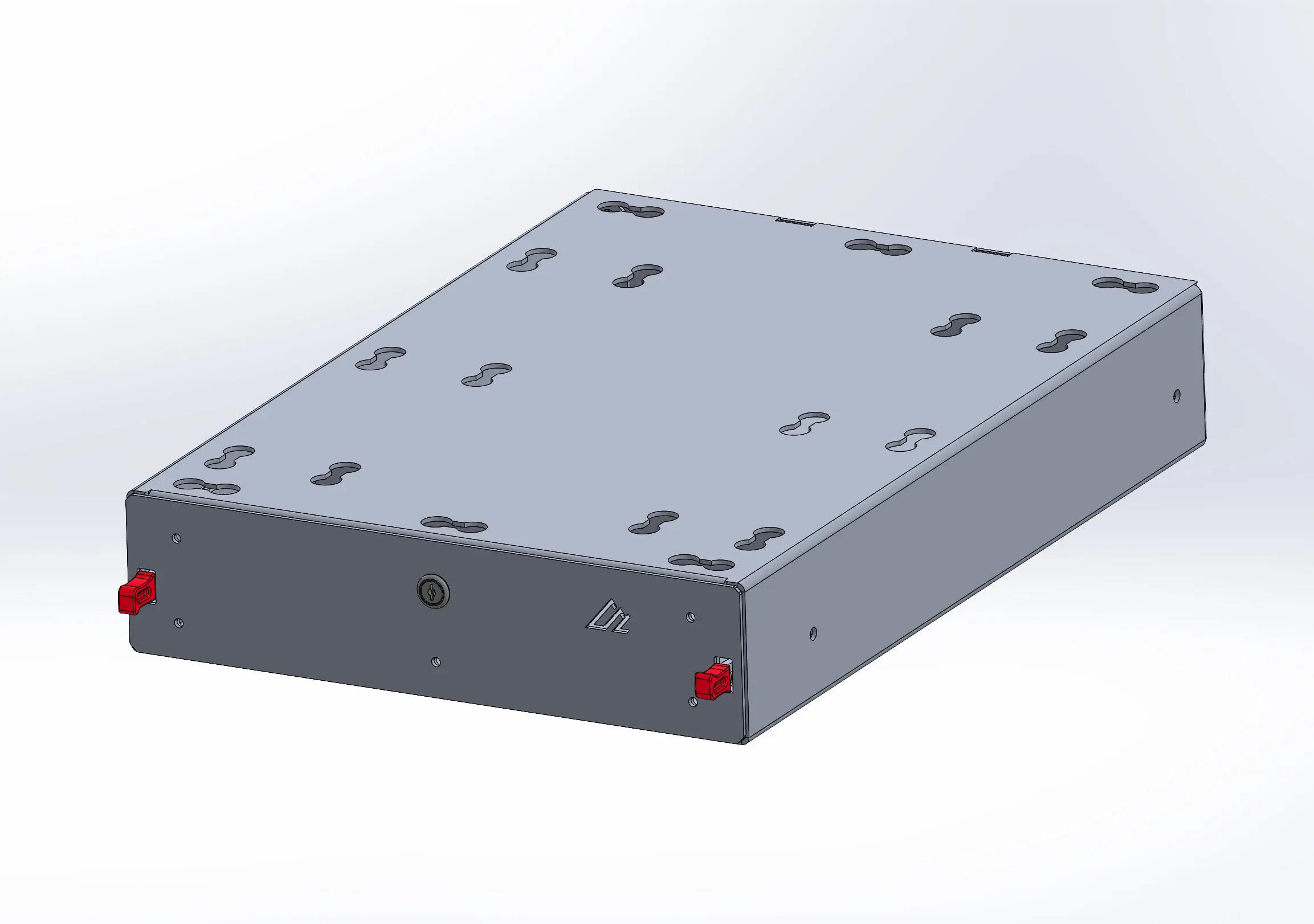

M.A.S.S. Storage Drawer - 3 Inch (6x3 Pattern) - Image 2

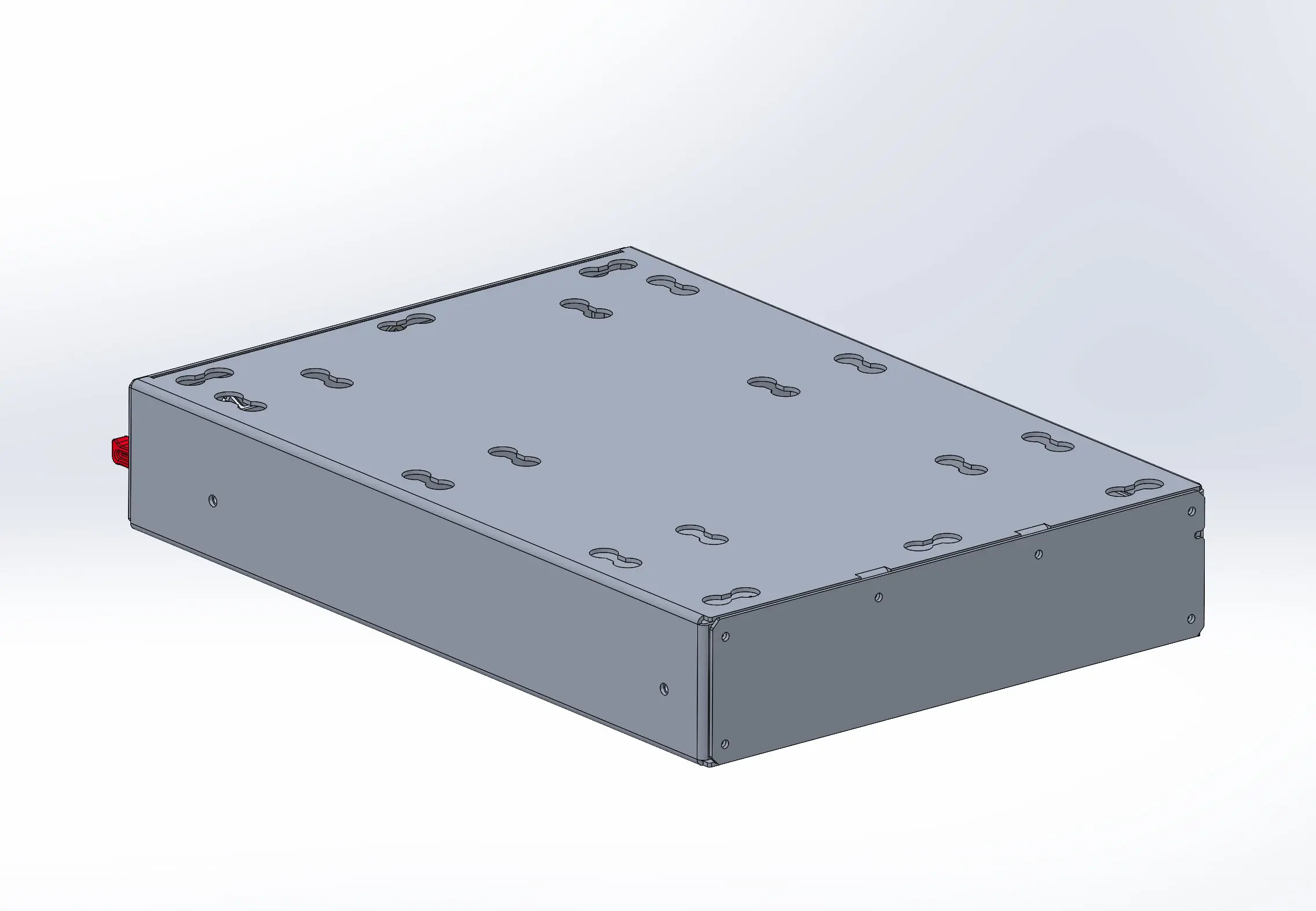

M.A.S.S. Storage Drawer - 3 Inch (6x3 Pattern) - Image 3

M.A.S.S. Storage Drawer – 3 Inch (6×3 Pattern)

Fitment: Jeep Wrangler JK - 2-Door Jeep Wrangler JKU - 4-Door Jeep Wrangler JL - 2-Door Jeep Wrangler JLU - 4-Door

Price range: $559.00 through $679.00

Note: Product photos may contain optional components.

Finish

Include Drawer Locks

Clear

Frequently Purchased Together

HD M.A.S.S. Connector

$10.95

Secure Checkout – TLS Protected by Cloudflare

SKU: MASS-1237X Categories: MASS Components, Cargo Management Tag: mass Brand: American Adventure Lab

Description
Reviews (0)

Interior Dimensions:

15.5″ wide (393mm)
23.6″ deep (600mm)
3″ tall (76.2mm)

Exterior Dimensions:

Height: 4.3″ (109mm)
Depth: 25.8″ (655mm) – tip of slide handles to back of drawer
Width: 17.5″ (444.5mm)

Features:

1/8″ 5052 aluminum construction
Ships with two removable dividers.
Two locking drawer sliders (one on each side)
Zinc-plated steel hardware and nylon locking fasteners
Includes key lock on face of drawer

HD MASS Connectors

Use HD MASS Connectors when stacking additional MASS modules on top of this drawer or when mounting the drawer to a standard MASS Platform. They are not needed with MASS+ Platforms or Modules since those already include the connection points. Because these drawers are used in many custom installs, the connectors are sold separately. You can add them to your order using the Frequently Purchased Together box above. We recommend four HD MASS Connectors to attach this drawer to a MASS Platform. Learn More

Important Powder Coating Note

Powder coating is a manual process done by humans and may take some time. When you purchase powder coated products from AAL, we coat them for your order. Occasionally, that means delays with non-standard colors, resprays for less-than-perfect conditions, etc. We have a very high standard with powder coated products. We will work to get your parts coated in the best condition possible before they leave the building. Please visit our Powder Coating Page for more info.

Reviews

There are no reviews yet.

Be the first to review “M.A.S.S. Storage Drawer – 3 Inch (6×3 Pattern)” Cancel reply

Featured in these Vehicle Builds

Frequently Asked Questions

Do I need to purchase YOUR M.A.S.S. platform, or can I attach it to anything?

These Drawers/M.A.S.S. Accessories are made specifically to attach safely and securely to OUR M.A.S.S. Storage Platform, anything else would be up to the consumer to modify to their needs.

How much weight can the drawers take?

The slides themselves are rated for 500 lbs, however we have not weight tested the drawers themselves.

Does this accessory come with all of the connectors to attach them to the platform or do I need to purchase the connectors?

This product no longer comes with the MASS connectors as we have started selling more of our MASS Plus Platform which does not need these connectors to attach it to the base, your drawers will come with the bolts necessary to attach it to the Platform, however, if you plan to stack the drawers, you will still need to purchase HD MASS Connectors.

How many connectors do I need for this drawer?

You will need 4 connectors for this drawer to attach it to anything other than the MASS Plus Platform.
