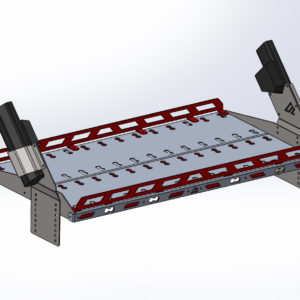

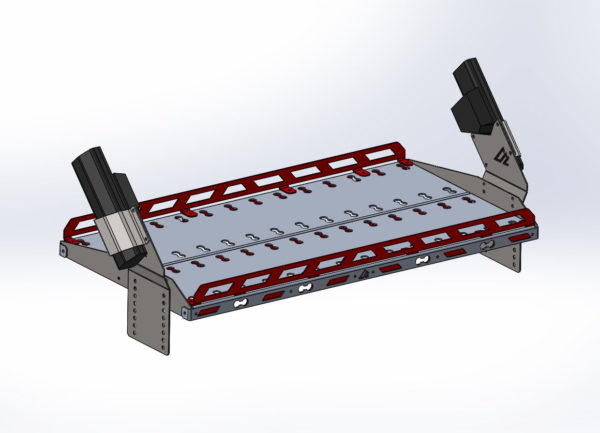

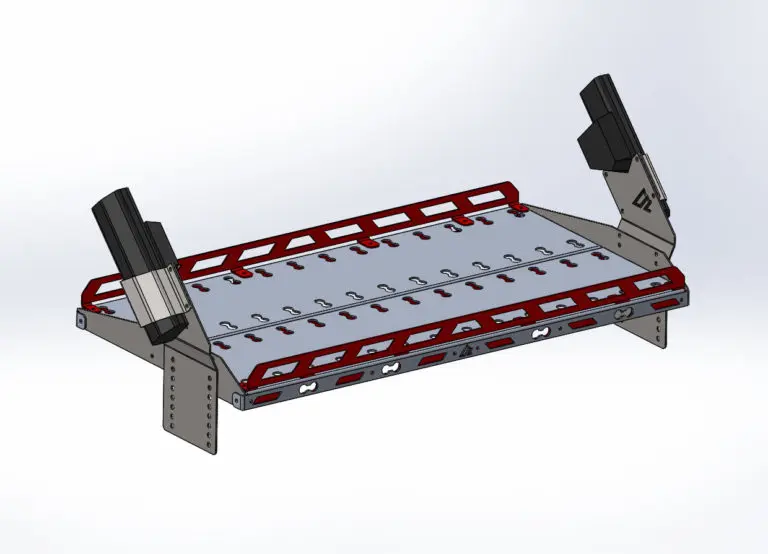

4-Door Bronco M.A.S.S. Cargo Shelf

Multiple Materials

We combine three different materials to provide ultimate strength and still keep it as light weight as possible.

1. 1/8″ steel for the vertical supports that attach to the roll bar for superior strength and lateral stability.
2. 1/8″ steel the side spreaders. This ensures that the platform parts are able to strong over the entire span of the shelf.
3. 1/8″ aluminum for the platform parts. This is where we can save some weight. Due to the mounting method, we are able to reduce the weight of the largest components in the rack.
4. 1/8″ steel for the vertical, under-platform supports. Here’s where we got fancy. The vertical steel supports bolt in and provide a huge amount of vertical strength.
5. 1/8″ steel for the edge guards to provide maximum strength for securing cargo.

Innovative Connection Design

This is my favorite part of the shelf. This joint provides maximum lateral rigidity. You won’t believe how sturdy this shelf is once it’s mounted. We take great pride in our ability to maximize the efficiency of our designs using features such as this. This joint is located at all four corners of the shelf.

Technical Specs

• Width (left to right): 42″ (1067mm)
• Depth (front to rear): 22-1/4″ (656mm)
