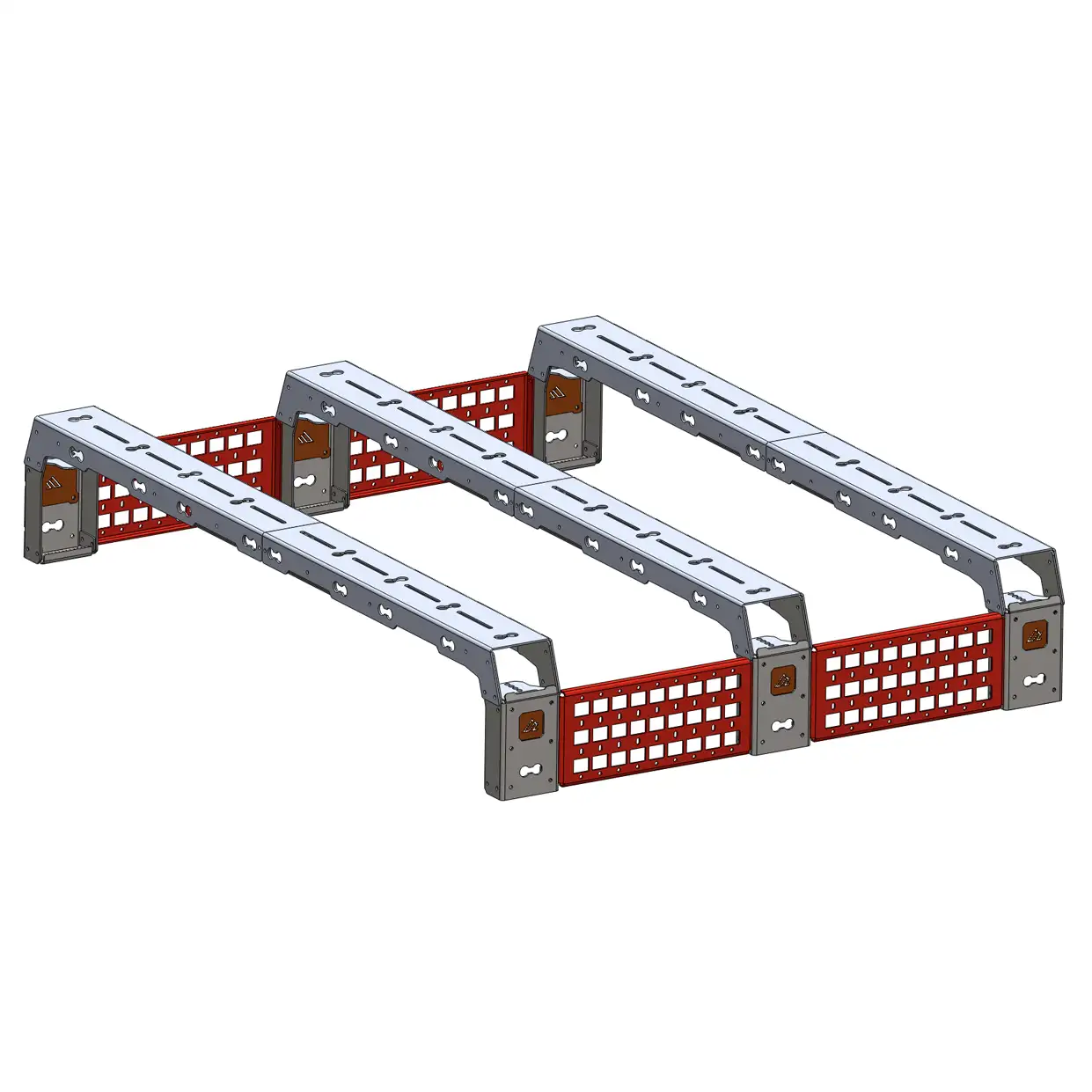

Ford Ranger 10″ Bed Rack RAILS (Tonneau-Compatible)

Built for Ranger owners who refuse to compromise

Ford Ranger owners running roll-up tonneau covers like the BAK Revolver are often told bed racks are not compatible. At the same time, certain cargo setups simply need more vertical clearance than a low-profile rack can provide.

The Ford Ranger 10″ Bed Rack RAILS were built to solve both problems.

This is a taller, tonneau-compatible version of our proven Ford Ranger Bed Rack RAIL System. It delivers additional clearance for taller cargo while maintaining compatibility with roll-up tonneau covers, all without changing the modular foundation of the system.

If you are looking for the most complete, flexible bed rack solution available for the 6th Gen Ford Ranger, this is it.

---

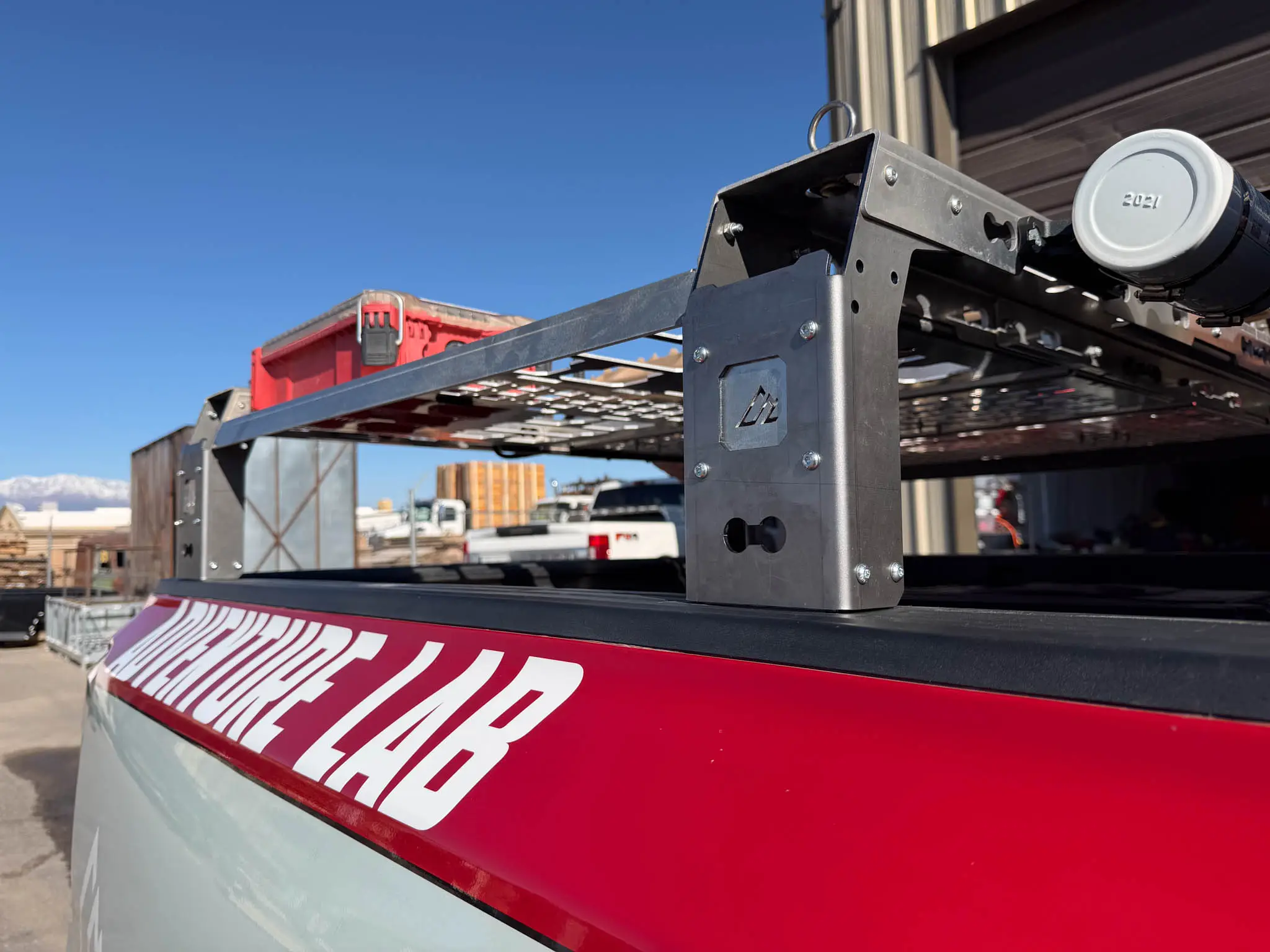

Designed to clear roll-up tonneau covers

This 10″ configuration is specifically designed to clear roll-up tonneau covers such as the BAK Revolver and similar designs.

• Compatible with most roll-up tonneau covers
• Designed to maintain proper clearance during cover operation
• Allows you to keep your tonneau while running a functional bed rack

Important: Please review the product photos carefully to verify fitment with your specific tonneau cover prior to purchase. If you have any questions, please contact us and we are happy to help confirm compatibility.

Why a 10-inch rack?

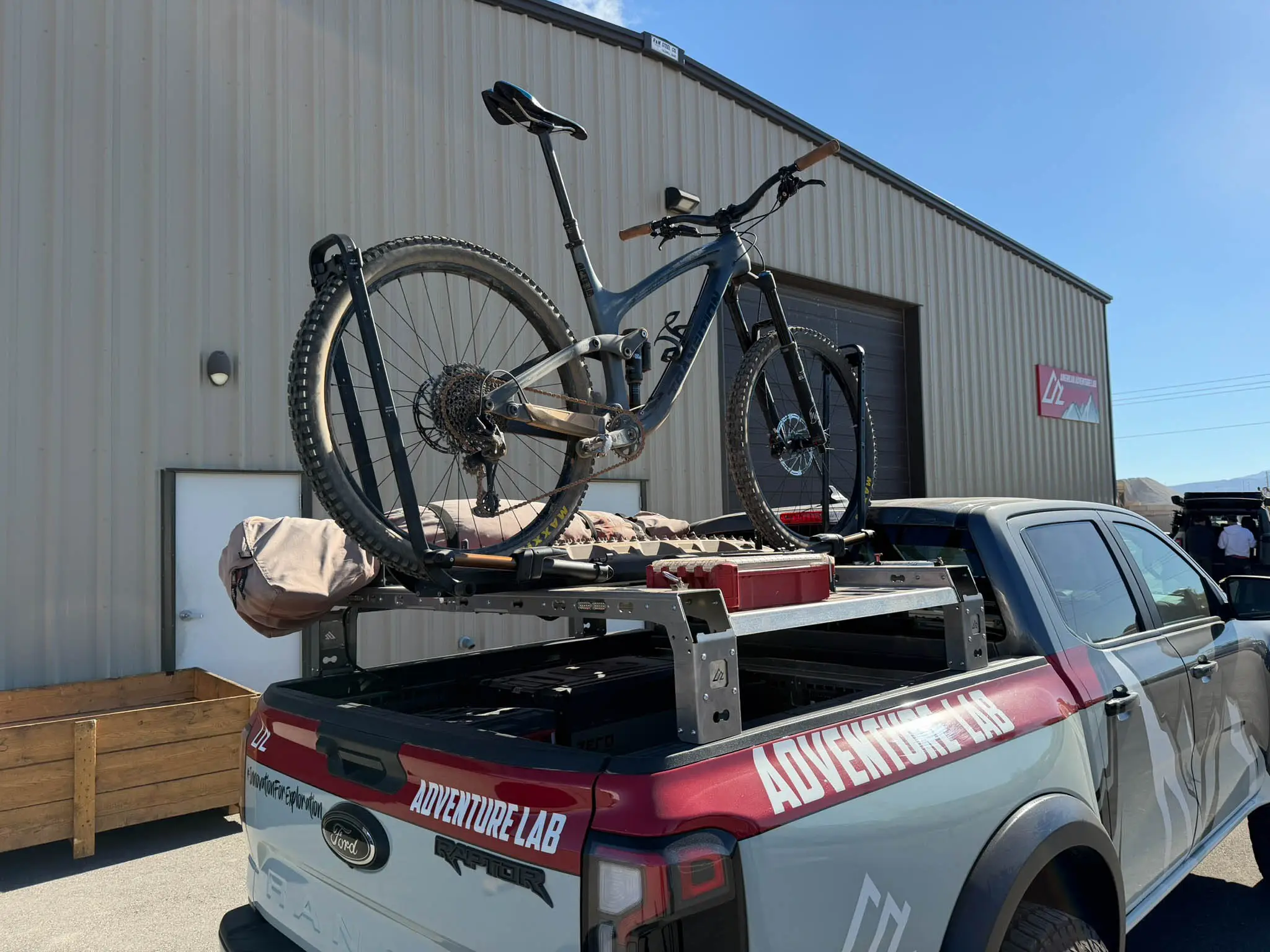

Some cargo simply requires more vertical space. Whether you are running taller gear, need additional clearance above
the bed, or want more flexibility in how accessories are mounted, the 10″ height opens up new options without
sacrificing modularity.

Rack height reference

• Bottom of rack: 212 mm (8.35″) above the bedsides
• Top of rack: 265 mm (10.43″) above the bedsides

Same modular system. More options.

The 10″ Bed Rack RAILS use the exact same cross rails as our standard Ford Ranger Bed Rack RAIL System.

That means:

• You can switch between low-profile and 10″ configurations
• Accessories remain fully compatible
• The system grows with your needs instead of locking you into one setup

If you already own our standard Bed Rack RAILS, you will be able to purchase the 10″ risers separately.

Thoroughly Tested

We brought in a special product torture-testing technician to put the rack through the paces. If it can withstand abuse from this guy, you should be in the clear.

What’s different vs the standard height rack

• Taller 10″ risers for increased clearance
• 3 mm carbon steel risers for added strength at the increased height
• Separate logo plate, allowing for accent color customization
• Revised LED pod mounting brackets designed specifically for the taller riser height to ensure
  proper light aiming

Everything else remains consistent with the standard system.

Built with the Ranger 6G community

This product exists because of real-world discussion, feedback, and problem-solving within the Ford Ranger community. The design of our 10" Bed Rack RAIL System and matching risers was directly influenced by conversations on the
Ranger6G forum.

We are committed to community-driven design. When customers raise real fitment challenges or use-case gaps, we take that feedback seriously and design solutions around it.

If you would like to see the discussion that led to this product and better understand the problem it was built to solve, you can read the full thread here:

Let’s Talk Bed Racks for Tonneau Covers – Ranger6G Forum

A huge thank you to the Ranger6G community for the thoughtful input, questions, and real-world use cases that helped shape this system.

Finish options and custom color details

• Textured Black: When Textured Black is selected, all components are coated in
  Textured Black.
• Other Color option: Custom color applies to the logo plate only.

If you choose the “Other Color” option, leave your desired color in the Comments section during checkout. Available colors can be viewed at: https://www.prismaticpowders.com/

We will do our best to accommodate your request and may contact you to confirm the color before coating.

Chase Light Options

Our Ford Ranger Bed Rack RAILS can be configured with rear-mounted chase lighting options to improve visibility to traffic behind you, especially in dust, rain, snow, and low-light conditions.

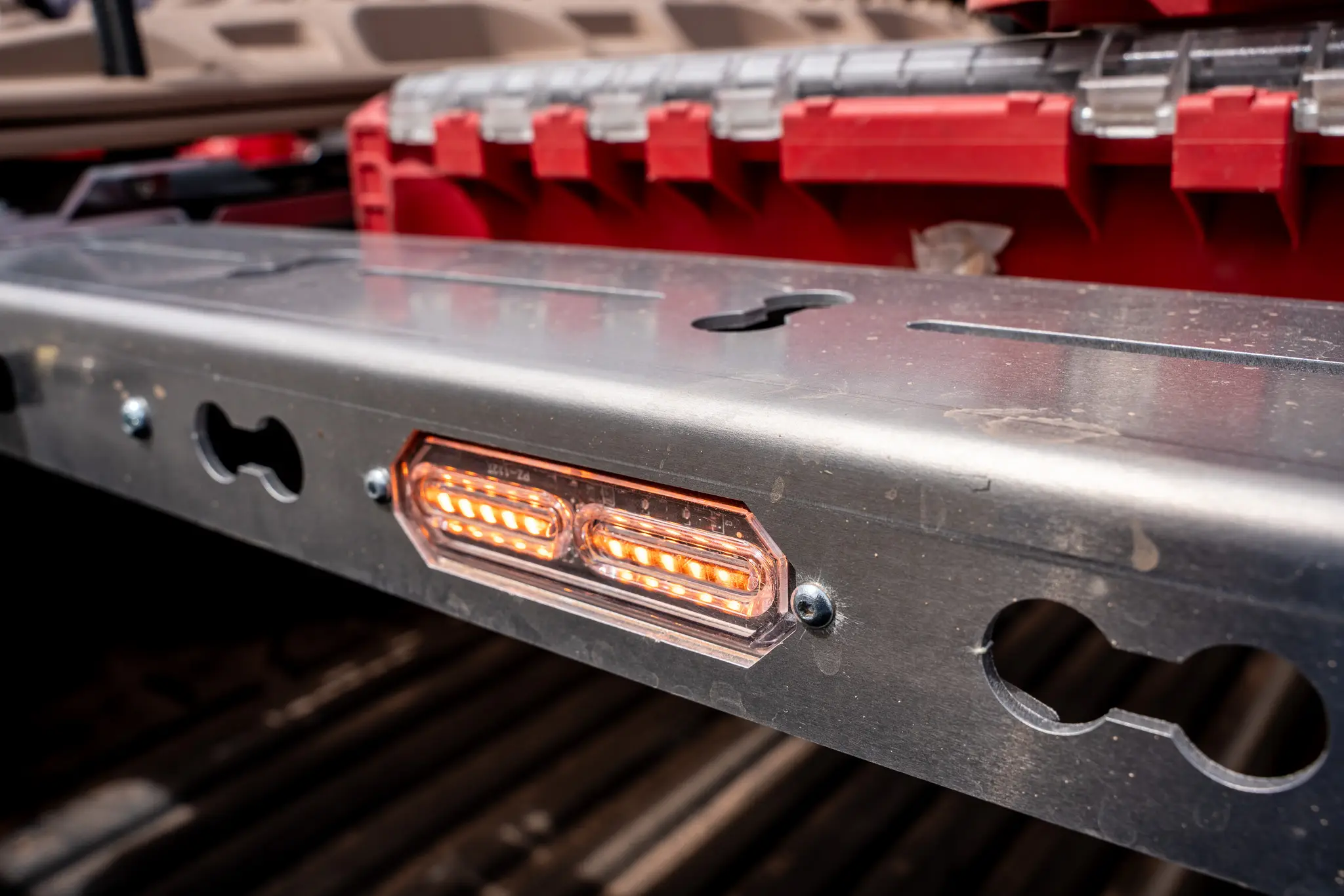

Included Basic Chase Lights

Every set of rails includes our basic chase lights. They are an inexpensive, functional solution for straightforward chase light needs. Note: These basic lights are not intended to compete with or replace high-end options from brands like Baja Designs or Diode Dynamics.

Chase Light Cutouts (Bring Your Own High-End Lights)

If you want maximum visibility, choose one of our chase light cutout options. This configuration is designed for customers who want to run premium rear-facing LED lights.

• Choose a cutout option that matches your preferred light
• Purchase your high-end LED lights separately
• Best choice for maximum brightness and visibility

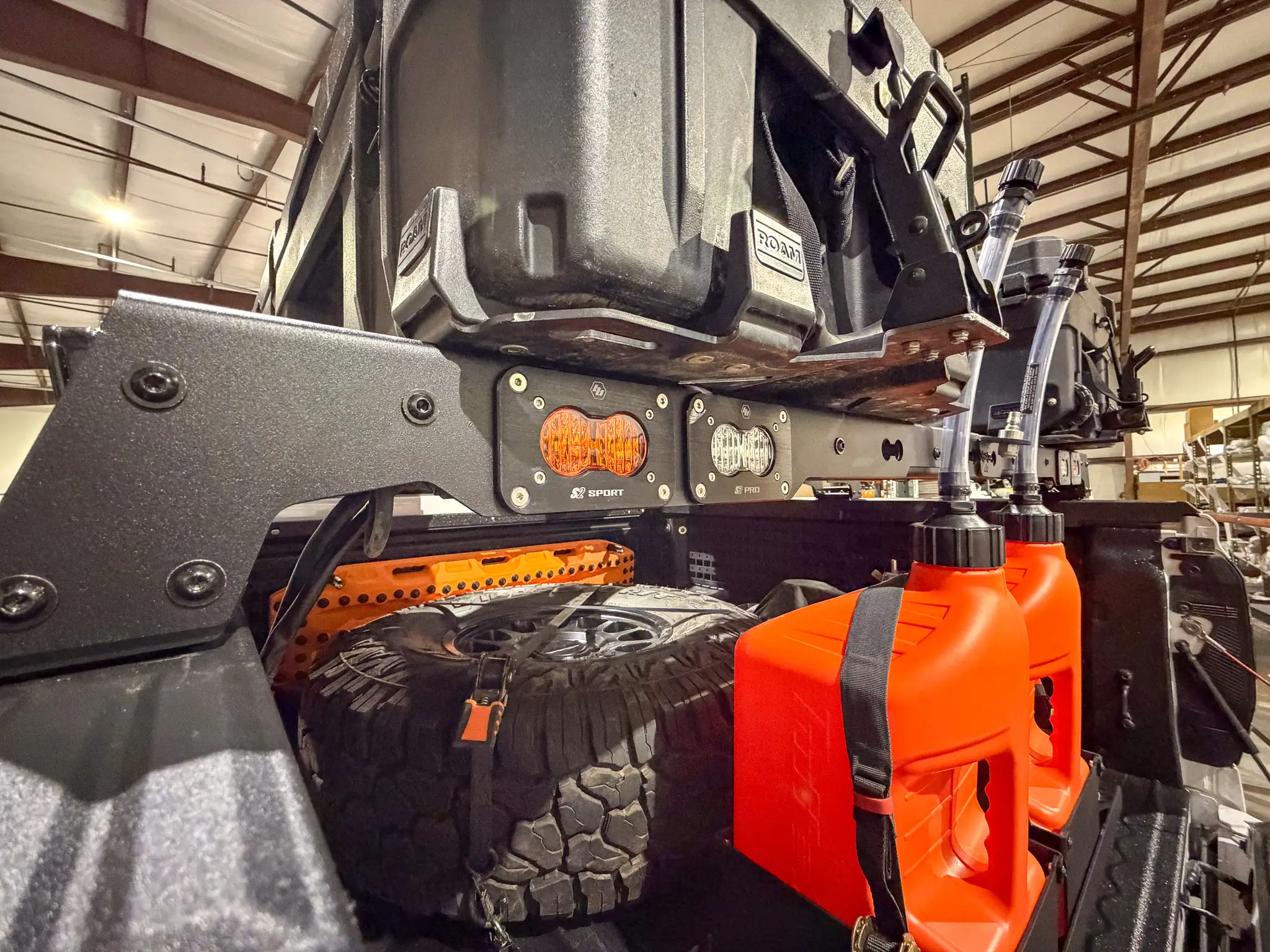

Dual Baja Designs

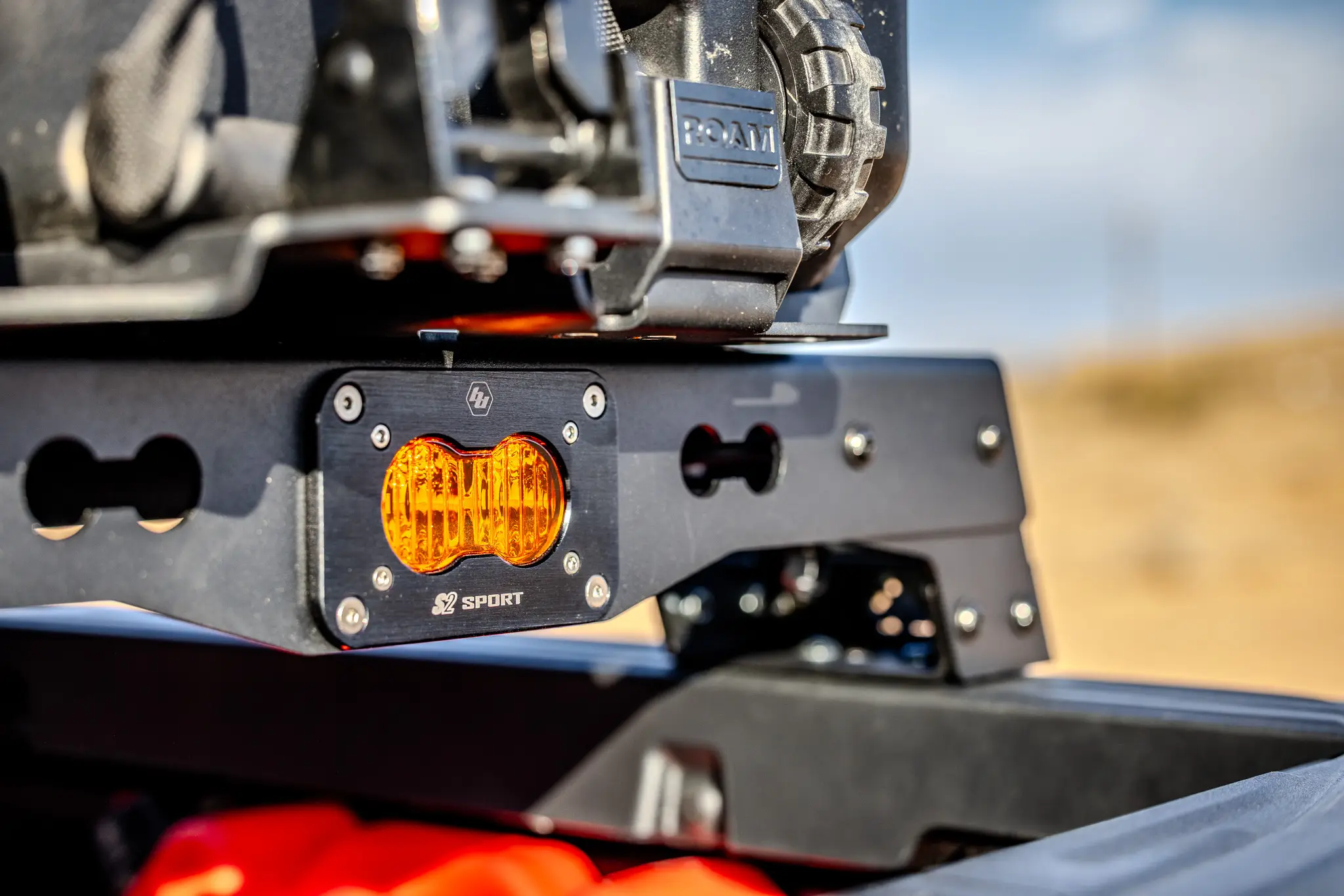

Single Baja Designs

Basic Chase Lights

Accessory compatibility

The 10″ Bed Rack RAILS are fully compatible with all American Adventure Lab bed rack accessories, including:

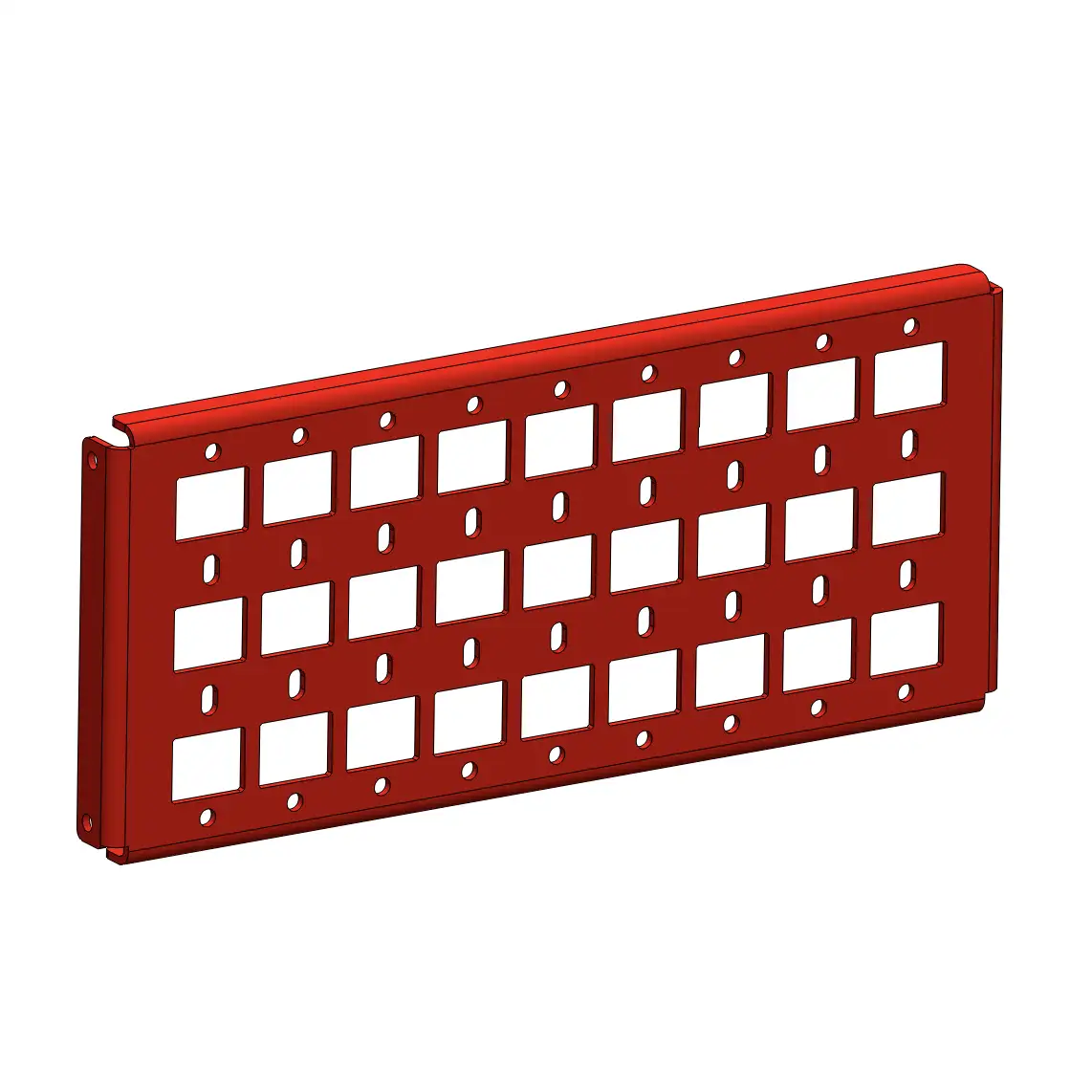

• MOLLE panels
• Trays and shelves
• Tie-down solutions
• Cross-rail mounted accessories
• Lighting and electrical accessories

No modifications required.

---

Installation

Installation is identical to the standard Ford Ranger Bed Rack RAIL System.

• Uses the same mounting locations
• Uses the same hardware
• Follows the same installation instructions and video

The only difference is that this kit includes LED pod mounting brackets designed specifically for the 10″ riser height (to keep the light angle correct).
