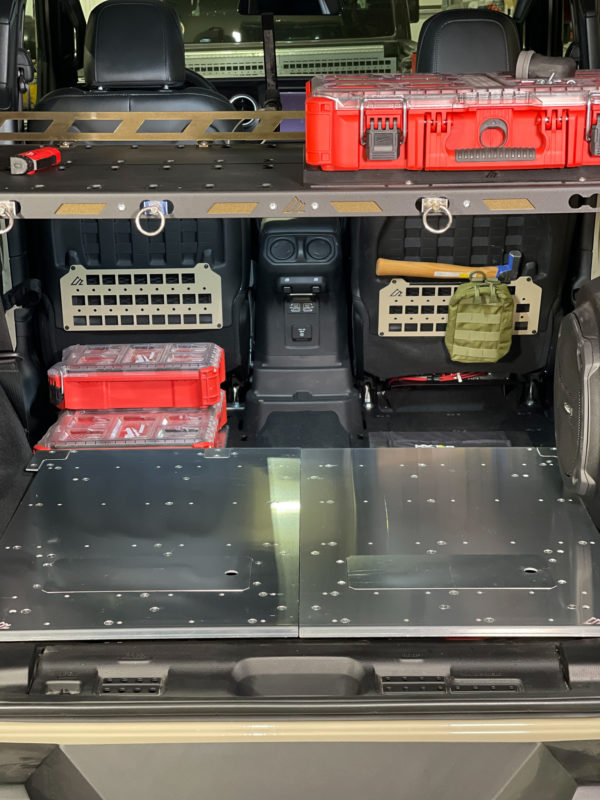

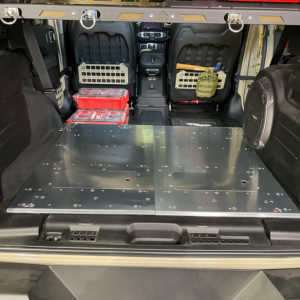

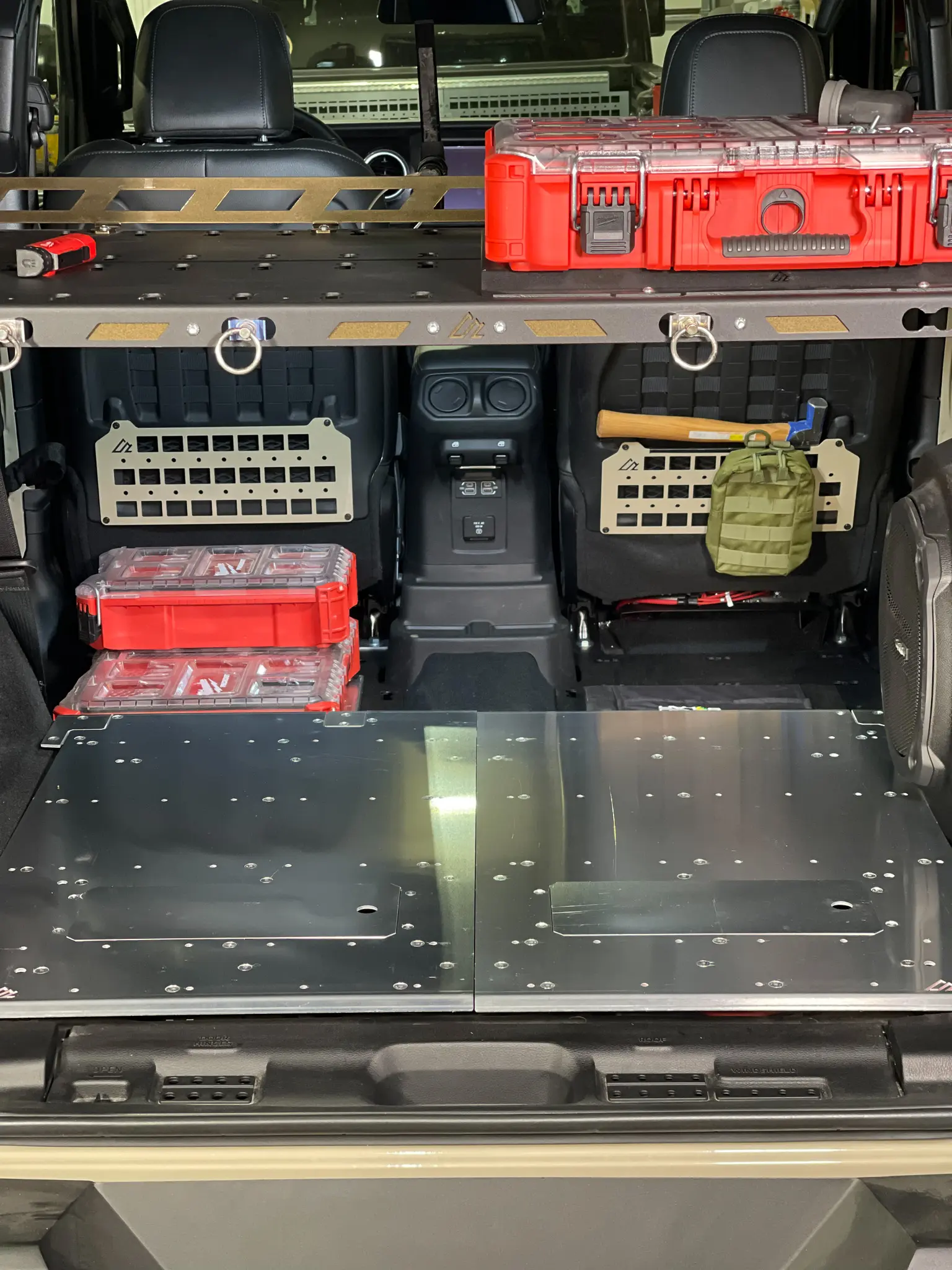

Jeep JL M.A.S.S. Plus Storage Platform
Price range: $545.95 through $695.95
Selected configuration
Choose options to see current availability
Choose options to see ready stock and in-production counts. We manufacture in-house, so counts change throughout the day.
Choose one installer for your entire order. Your selection follows you between products and is confirmed at checkout.
Save on This Product in a Bundle
Building a complete cargo setup? Explore these bundles for your vehicle.
- Jeep Wrangler JLU Denali Expedition BundleJeep Wrangler JLUIncluded component Ā· Discounted when purchased in this bundle
- Jeep Wrangler JLU Sierra Nevada Trail BundleJeep Wrangler JLUIncluded component Ā· Discounted when purchased in this bundle
Bundle pricing applies to the complete bundle purchase. Check vehicle fitment and selected options on the bundle page.
Explore all bundlesThe M.A.S.S. Plus Storage Platform - A next level upgrade for the jl
This is our upgraded version of our MASS Storage Platform!

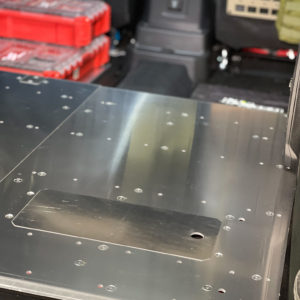

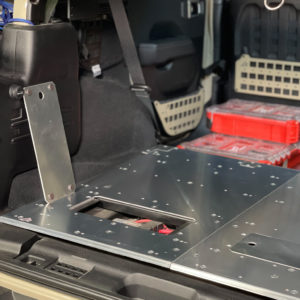

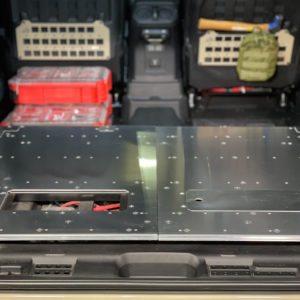

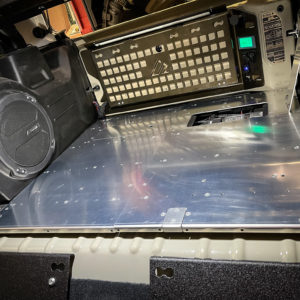

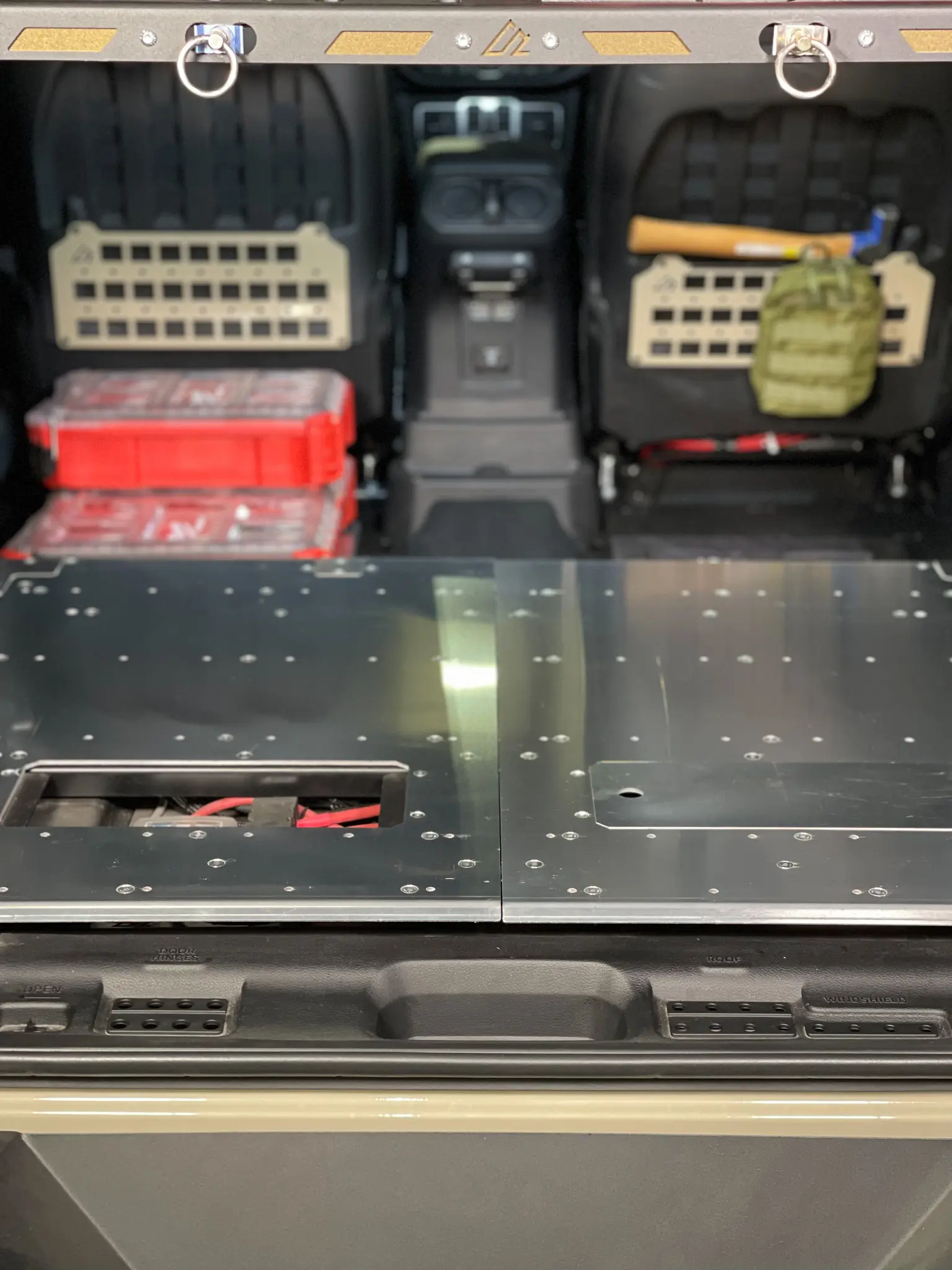

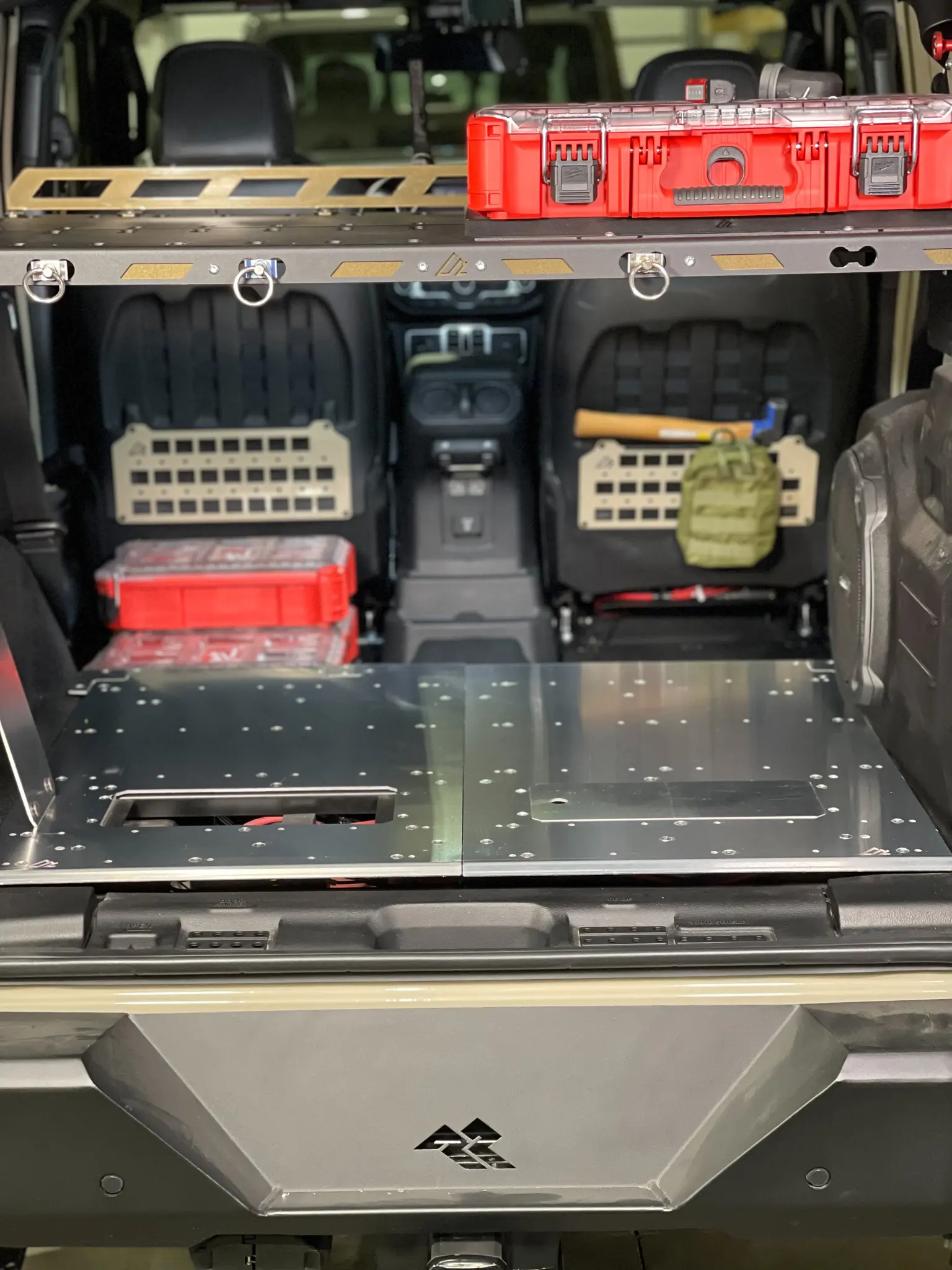

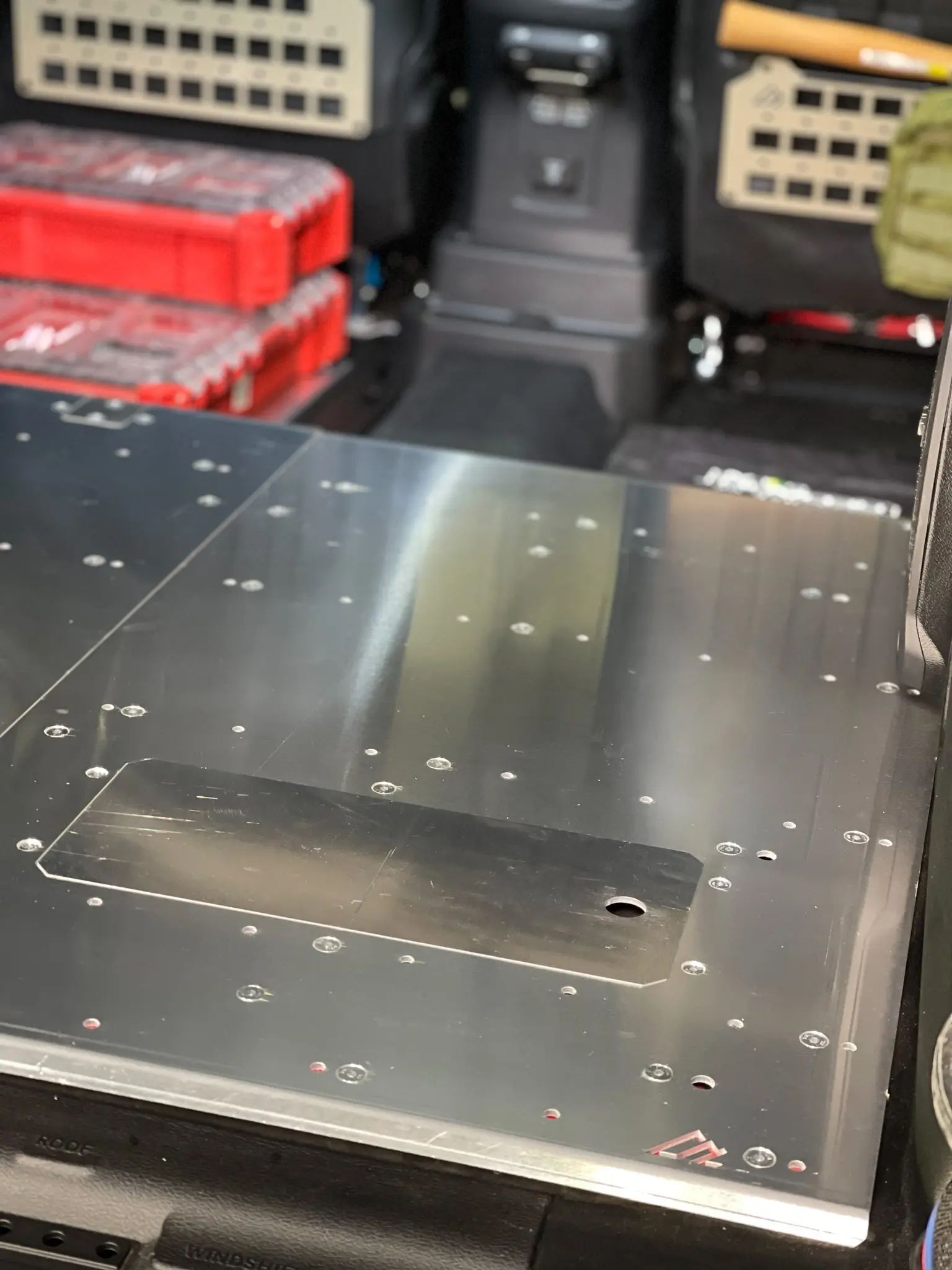

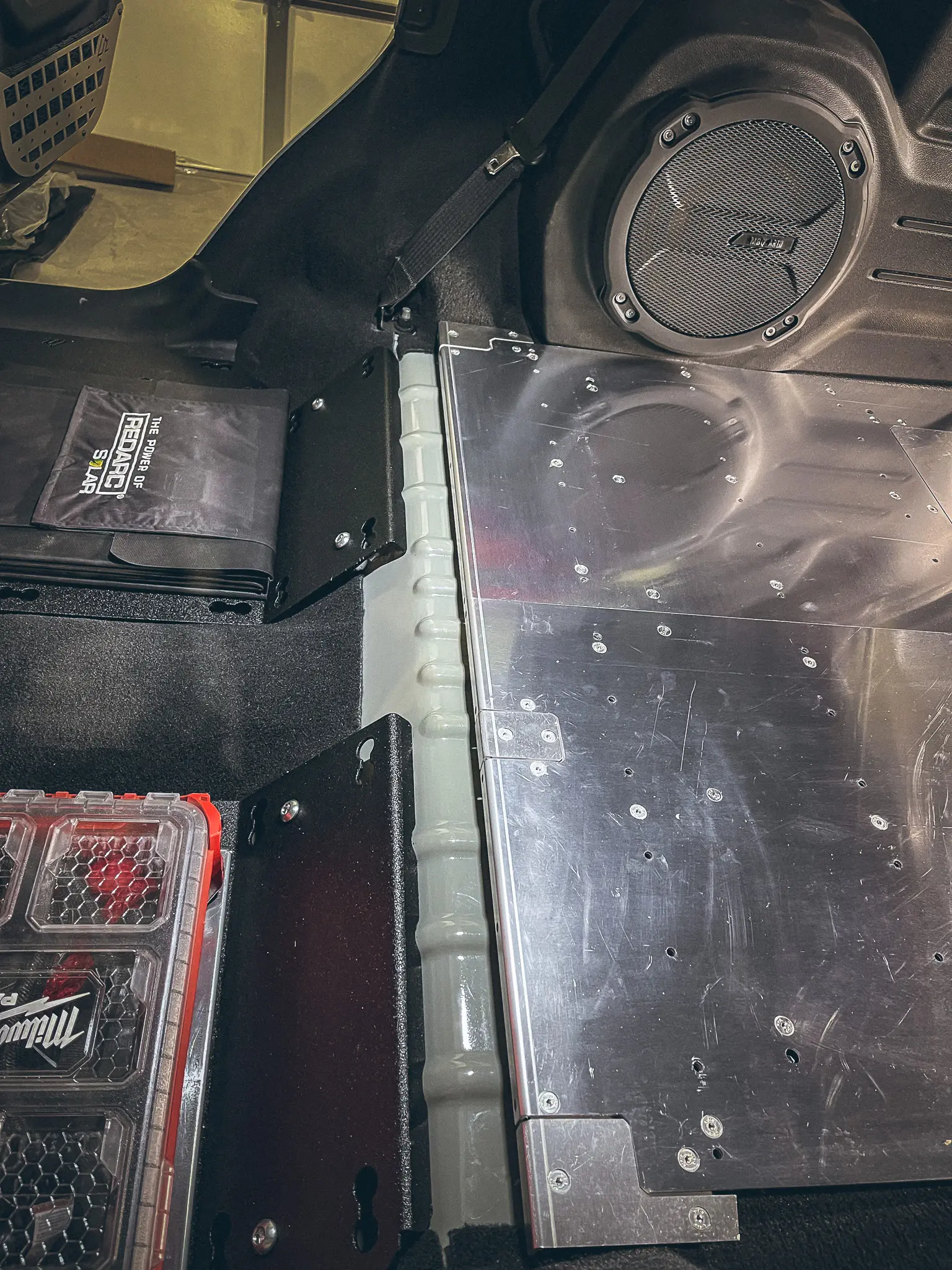

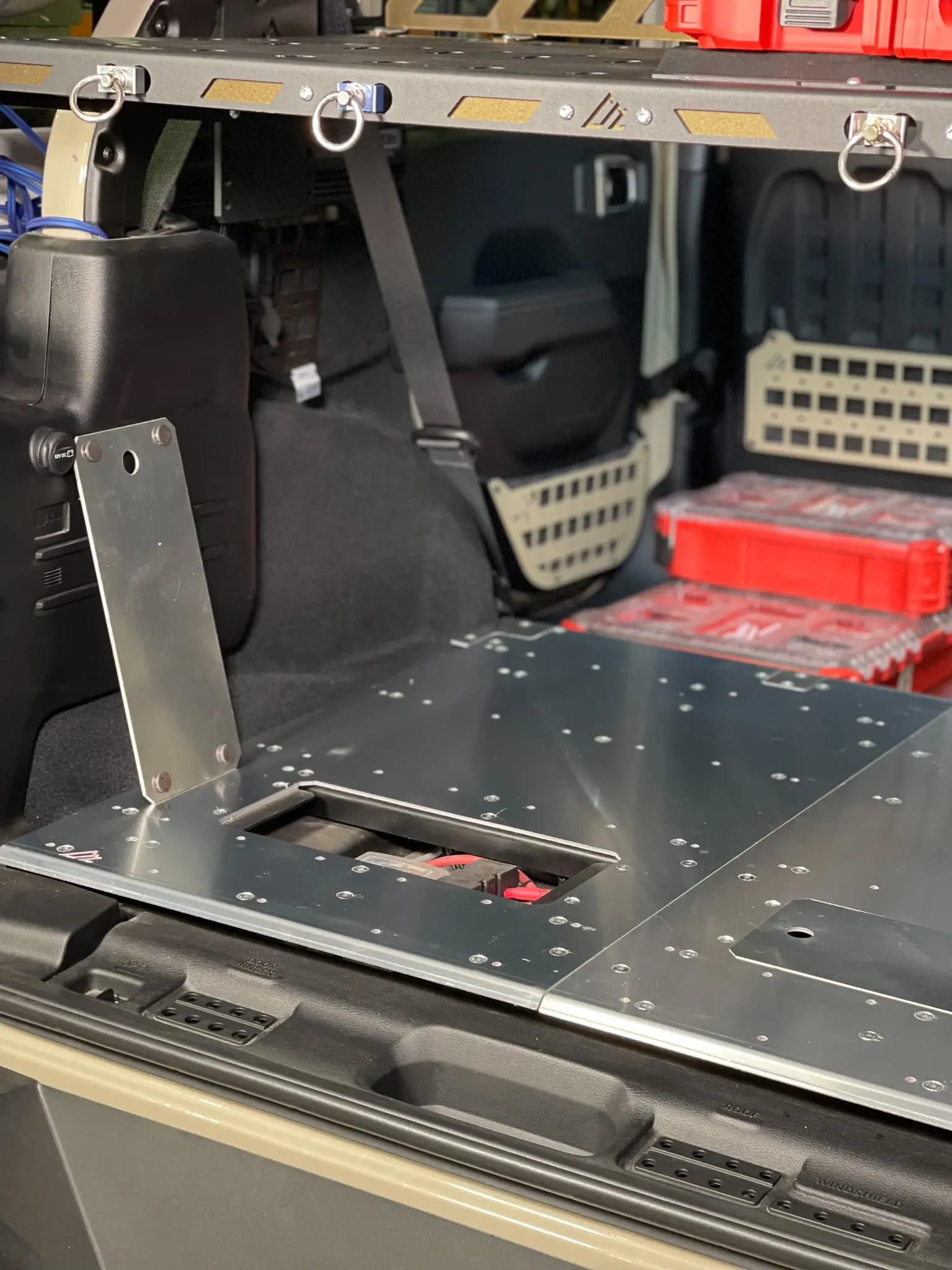

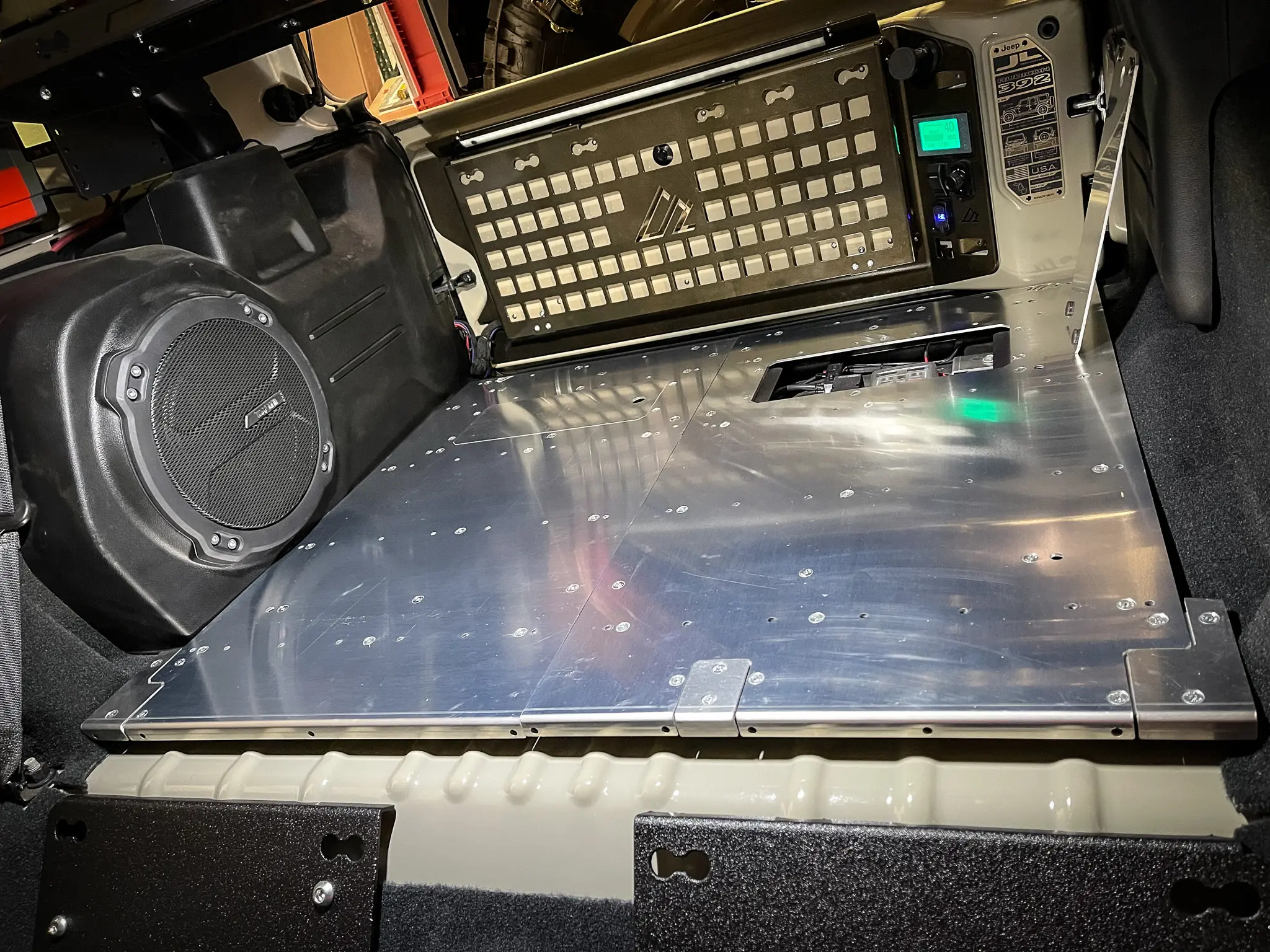

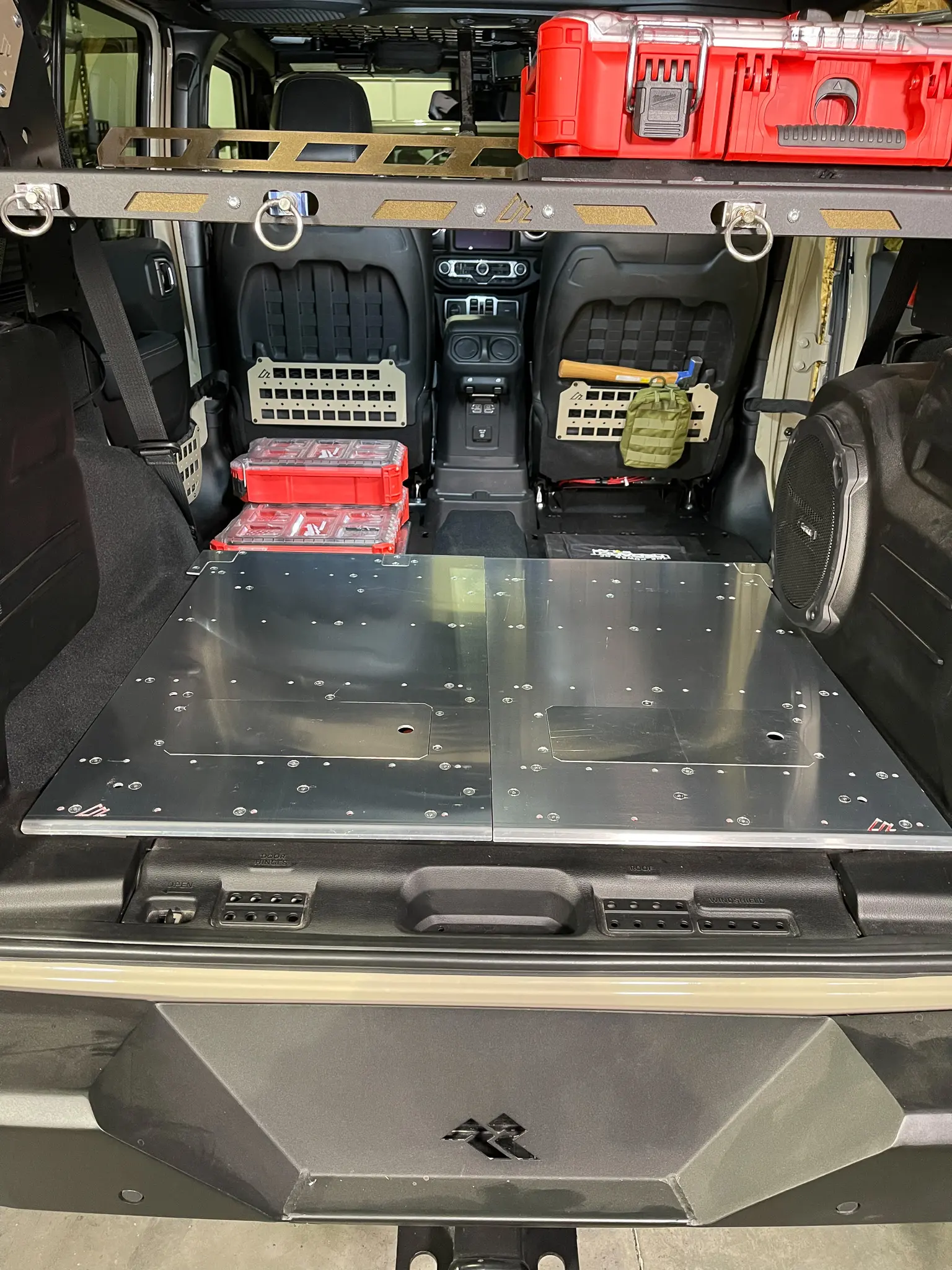

Giving more convenience and ease of use to our consumers was the end goal of this product. The MASS Plus platform allows you to know have access to your cargo cubby space that sits below our platform. We know customers have been asking about this for a long time and we’re finally happy to say that it’s here! The access doors have magnets that have been applied with adhesive to connect to the steel brackets that are attached underneath the MASS Plus Platform. With this new platform you’ll also notice that it doesn’t have the standard “L-Track” pattern (dogbone cutouts) and while you’re still able to use all of our modules you now won’t have to worry about things falling down into those spaces where you can’t fish them out. Giving the entire platform a cleaner more finished look. This uses steel pieces that are bolted to the underneath of the platform that are already threaded so that you are able to mount all of the modules to it without having to use our HD MASS Connectors! This also uses the same steel rails that we use on our normal MASS Platform so that it uses the same existing mounting holes that don’t require you to have to drill to install! Dimensions:-
- 19.25″ x 33.75″ – Single Panel
- 33.5″ x 33.75″Ā – Dual Panels
Important Information
-

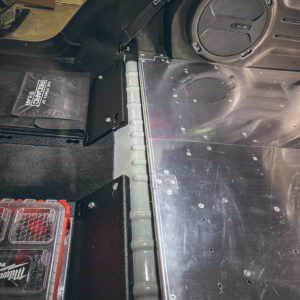

Most of the JLās get the same platform which is the (6X4) pattern. However, the mass plus won’t use the standard L-Track Pattern, it will have steel plates underneath that are tapped so that you can attach your modules with just a couple bolts.
-
We build our system focusing on two ācolumnsā; a driverās side column and a passenger side column to mount our modules. However, this pattern is consistent throughout the platform, meaning that you are able to move the modules where you want them.
-
The pattern on the floor is not the pattern that will work all the way “up” as you stack your modules. You need to keep in mind the angle of the rear seat. For example, in the JL’s, the 6×4 pattern will work for the bottom modules (ex. Flat Slide (6×4), Flip’n Slide (6×4), etc.). However, for the drawers, you will want to choose the 6×3 versions. The 6×3 is not as “deep” and provides room for the seat angle. Examples are below.
Modular Adaptable Storage System (M.A.S.S)
This is the main component of our Jeep JL overland product line. This is the base platform to our M.A.S.S. system. It is made out of 1/8″ 5052 aluminum and is laser cut for extreme precision. We hold a repeatable .005″ tolerance on all cuts for this platform.- Due to how the MASS Plus Platform functions, you will lose your tie down points. To remedy this, we’ve created bungee cord loops to re-enable mounting.
Click or Tap here to view the Bungee Cord Loops.Ā
-
The M.A.S.S. Plus platform is only compatible with the JLU (4 Door) or the JL 2-Door with the seats removed.
-
This version currently won't fit the 4xE. We are in active research and will release this product at a later date.
Installation Video
Be the first to review “Jeep JL M.A.S.S. Plus Storage Platform”
Featured in these Vehicle Builds
Frequently Asked Questions
How is it different from the original M.A.S.S platform?
Aside from the access panels in the Plus version, we did away with the dogbone pattern and you can now attach directly to the rails through the platform via threaded holes.Ā
Which powder coating is best for the Platform?
The majority of our customers purchase Textured black for the platform as it is a less aggressive version of linex, it seems to withstand more than the other coating options however is not impervious to scratches. Although, most are moving to MilSpec (similar to rhinolining/linex) because of its durability.
Do I have to powder coat this?
You can purchase this raw, however we suggest powder coating the rails and any steel components to help keep them from rusting. There will be machine marks from manufacturing and possibly from shipping so if scratches and machine marks bother you, then we suggest powder coating the platform.
Can I keep the cargo area carpet if I use your platform?
You will need to remove the cargo area carpet to install the platform.Ā
How much does it weigh?
The MASS Plus Platform weights 36 lbs.
Do I have to drill any holes to install this?
On the JL, no! We use all factory bolt holes to install the rails.Ā
Can I attach other slides and items straight to the platform that are not made by AAL?
Yes! Our platform provides you with more mounting possibilities than your original equipment. It is as simple as drilling holes to match up with the product in question at your own discretion.Ā
Will it work with the in floor sub?
From what we have seen, you will have to remove the mesh cover to allow room for our rails/platform.
